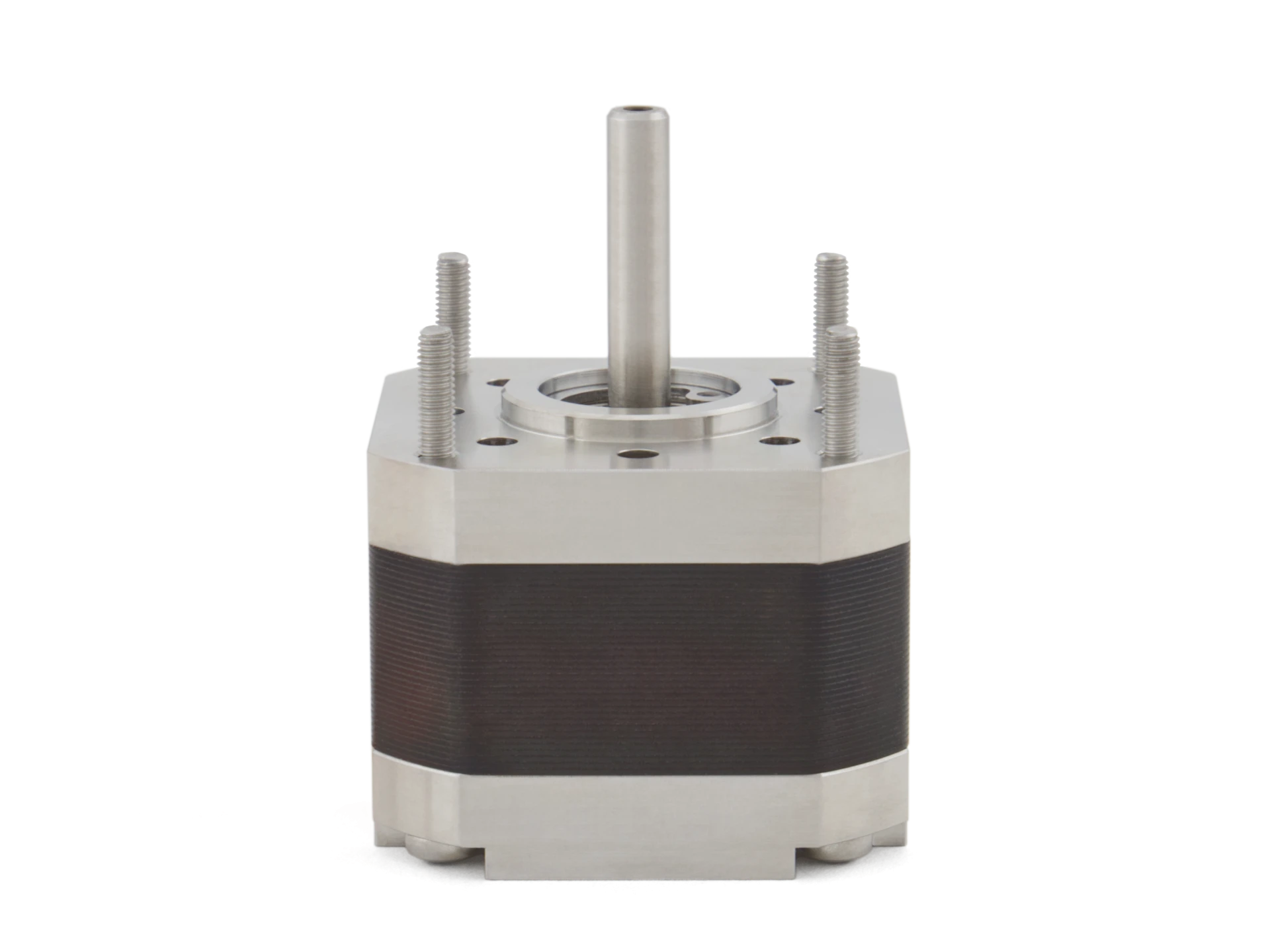

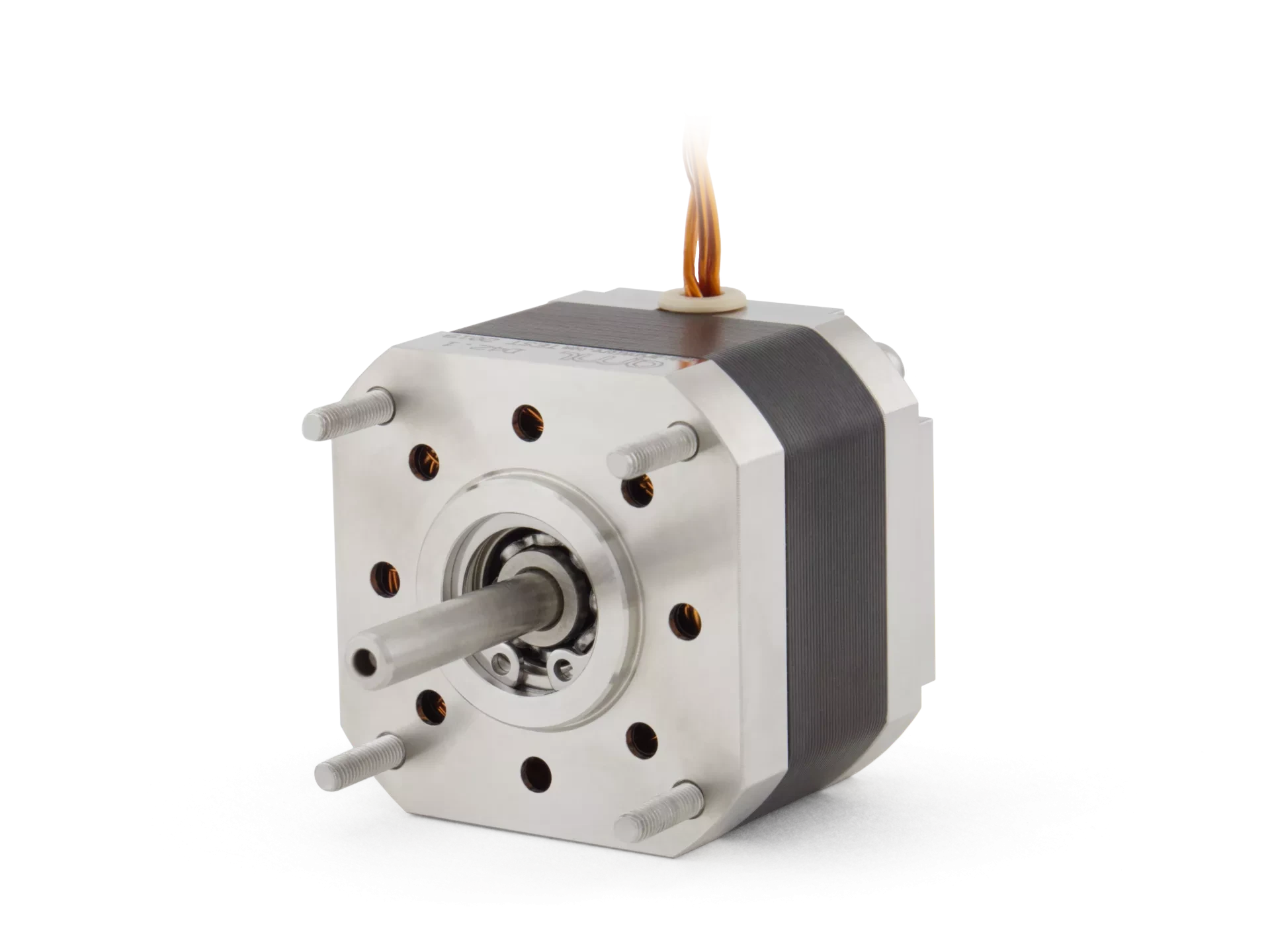

D42.1 UHV Stepper Motor
250 mNm, NEMA 17
From £676.00 excl. VAT and transportation cost$890.00 excl. VAT and transportation cost€820.00 excl. VAT and transportation cost
Overview
- Suitable for use below 1 x 10-10 mBar (7.5 x 10-11 Torr)
- Continuous running in vacuum at high torque and step rates with AML drive
- Bakeable to 200 °C
- Step angle of 1.8°
- Step angle tolerance of ±5%
- Operational temperature range -65 °C to +190 °C
- Embedded thermocouple or PT100 sensor
- Open construction with all internal spaces vented
- Cryogenic extended operating temperature option available, range -196 °C to +190 °C
- Gamma radiation hard versions available 1 x 106 Gy
- Standard motors are fitted with open stainless steel bearings, lubricated with NyeTorr® 6300 ultra low outgassing UHV grease
- Hybrid silicone nitride ceramic bearings option available, dry lubricated with tungsten disulfide
- Custom shaft modifications available
Order Code | Description |
Price
|
---|---|---|
D42.1 | 250 mNm UHV stepper motor | 676.00890.00820.00 |
D42.1-C | D42.1, Cryogenic -196 °C to +190 °C | 769.001,010.00930.00 |
D42.1-H | D42.1, Dry lubricated hybrid ceramic bearings | 769.001,010.00930.00 |
D42.1-P | D42.1 with PT100 temperature sensor in lieu of thermocouple | 724.00955.00875.00 |
D42.1-R | D42.1, Gamma radiation hardened | 769.001,010.00930.00 |
D42.1-X | D42.1 with shaft modification | 791.001,040.00955.00 |
Related Products
![D35.1 UHV Stepper Motor](/images/products/68f28fa9ee5c8c1a79fa09028ac06cf1_medium.jpg)
D35.1 UHV Stepper Motor
75 mNm, NEMA 14

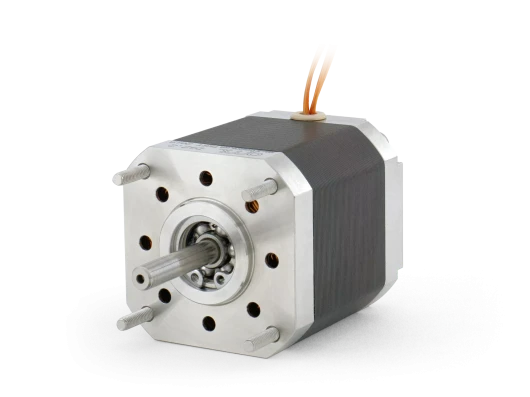

![D42.2 UHV Stepper Motor](/images/products/969da1dc696bebbc75752ce4247d75dd_medium.jpg)
