Motors

AML UHV compatible stepper motors are available in a range of sizes with torque ratings from 75 mNm to 1 Nm. They are suitable for low-speed precision in-vacuum manipulation without the use of particle generating motion feed-throughs.

d35.1
75 mNm, NEMA 14

d42.1
250 mNm, NEMA 17

d42.2
500 mNm, NEMA 17

d42.3
550 mNm, NEMA 17

d57.1
1,000 mNm, NEMA 23

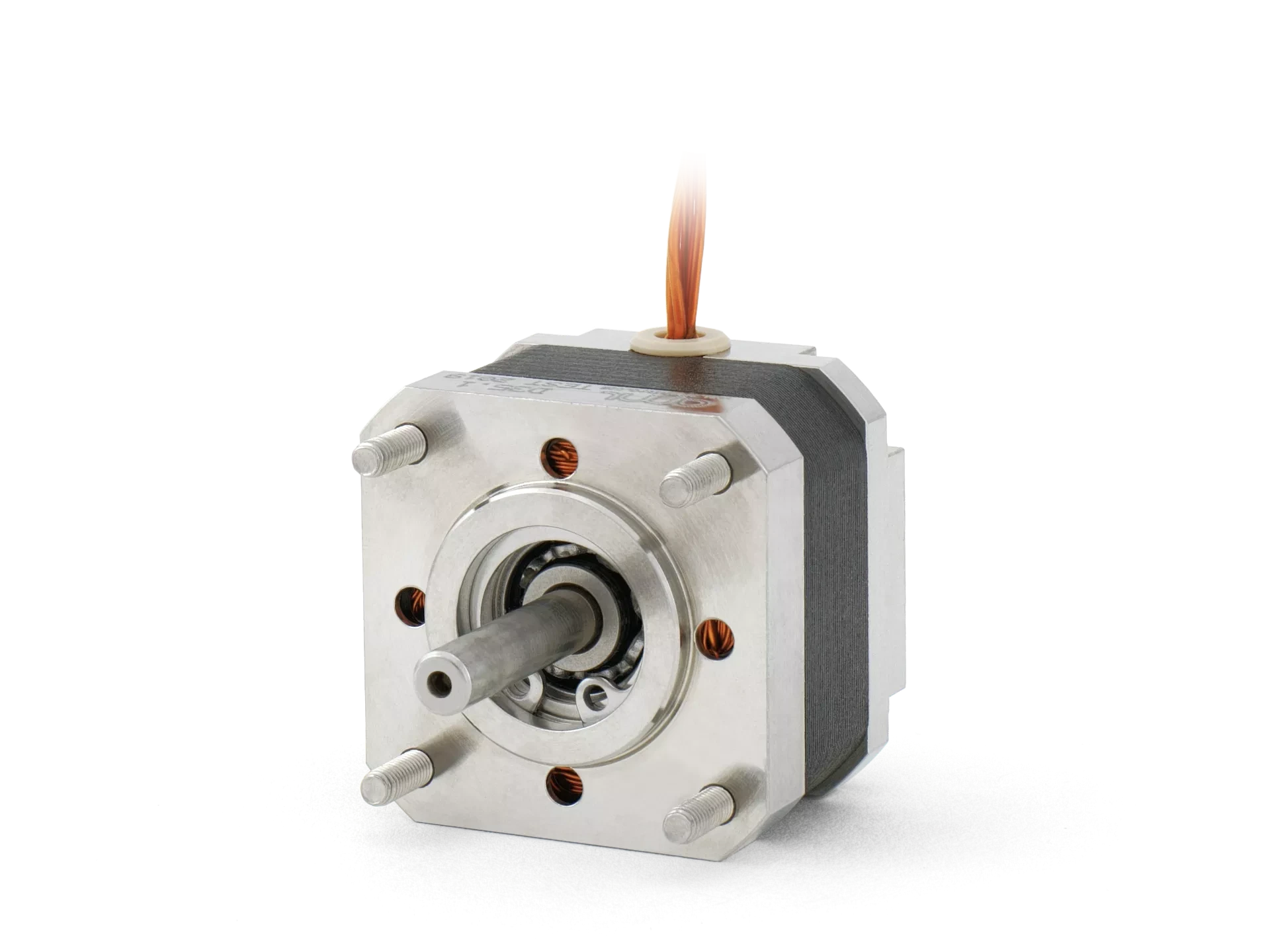

D35.1 UHV Stepper Motor

75 mNm, NEMA 14

Suitable for use below 1 x 10^-10mBar (7.5 x 10^-11 Torr)

Continuous running in vacuum at high torque and step rates with AML drive

Bakeable to 200 °C

Step angle of 1.8°

Go to product

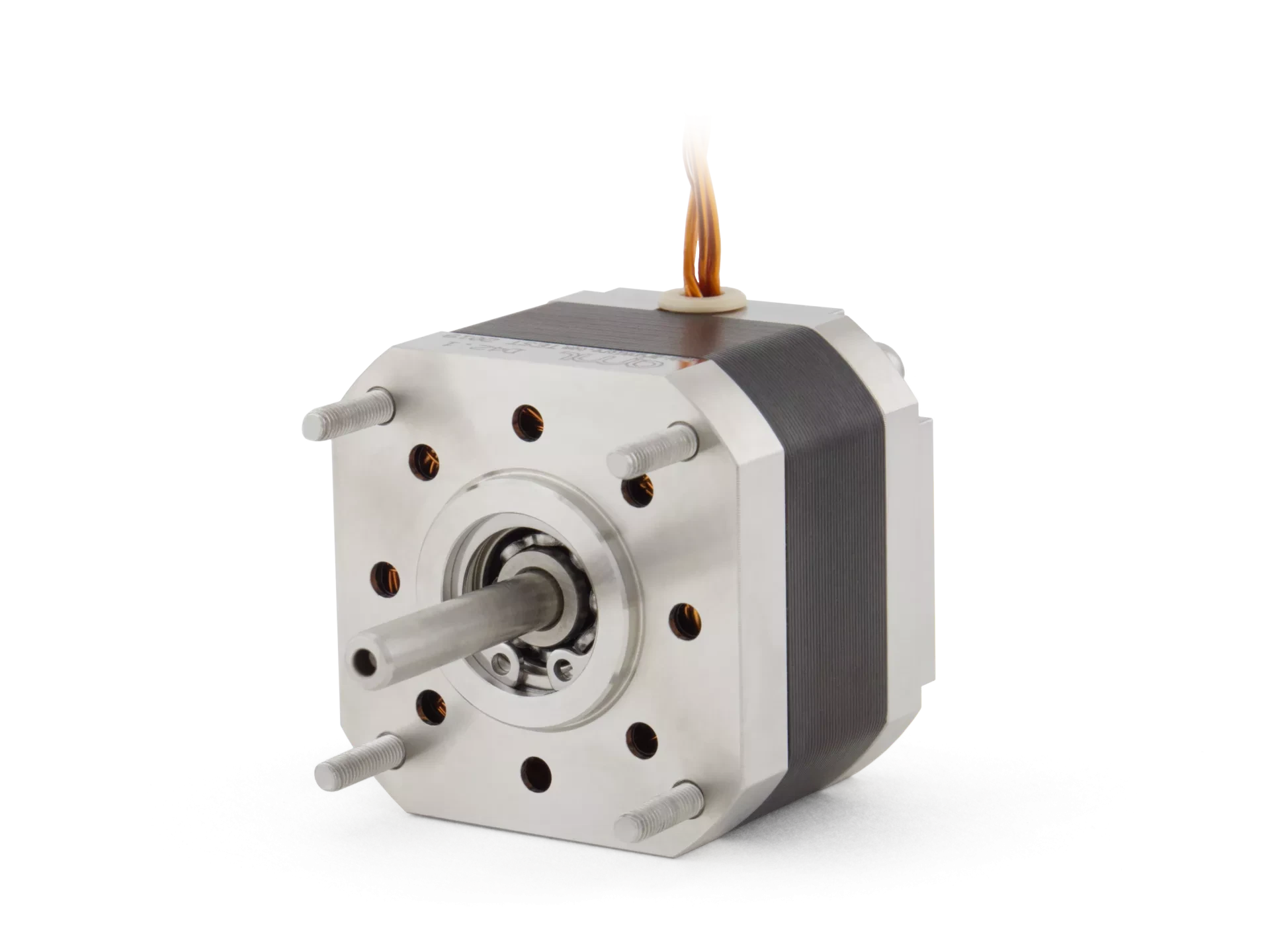

D42.1 UHV Stepper Motor

250 mNm, NEMA 17

Suitable for use below 1 x 10^-10mBar (7.5 x 10^-11 Torr)

Continuous running in vacuum at high torque and step rates with AML drive

Bakeable to 200 °C

Step angle of 1.8°

Go to product

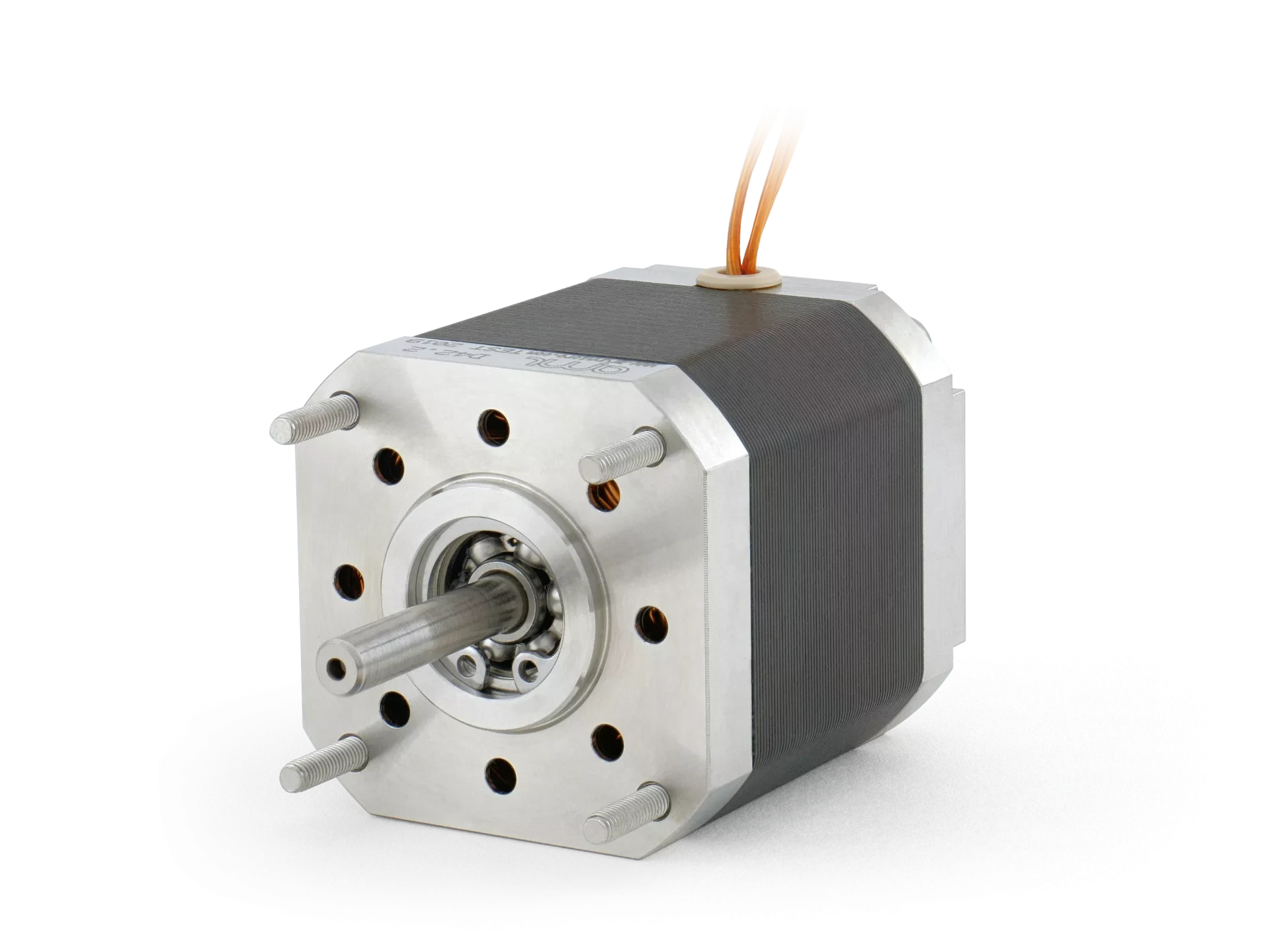

D42.2 UHV Stepper Motor

500 mNm, NEMA 17

Suitable for use below 1 x 10^-10mBar (7.5 x 10^-11 Torr)

Continuous running in vacuum at high torque and step rates with AML drive

Bakeable to 200 °C

Step angle of 1.8°

Go to product

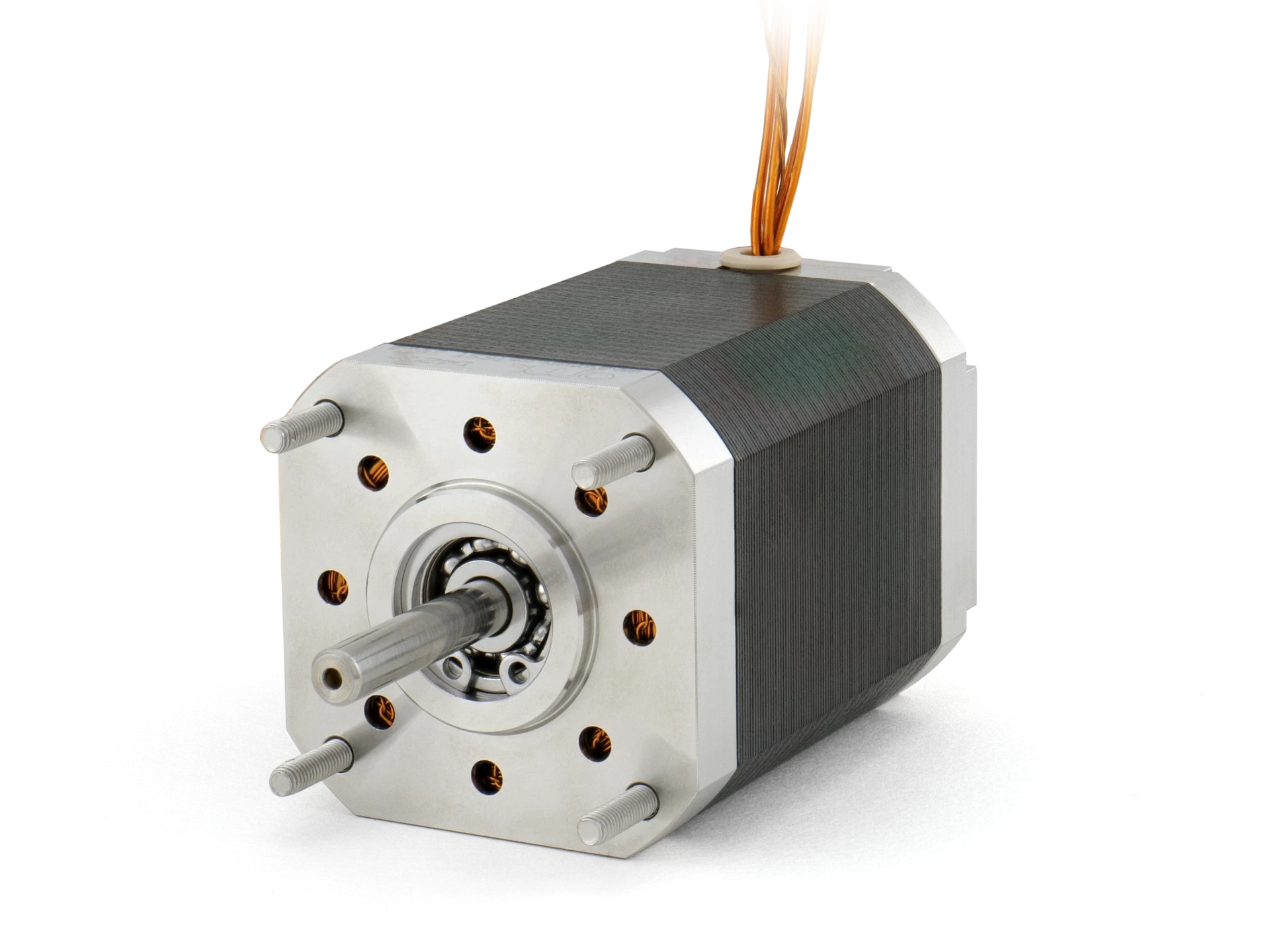

D42.3 UHV Stepper Motor

550 mNm, NEMA 17

Suitable for use below 1 x 10^-10mBar (7.5 x 10^-11 Torr)

Continuous running in vacuum at high torque and step rates with AML drive

Bakeable to 200 °C

Step angle of 1.8°

Go to product

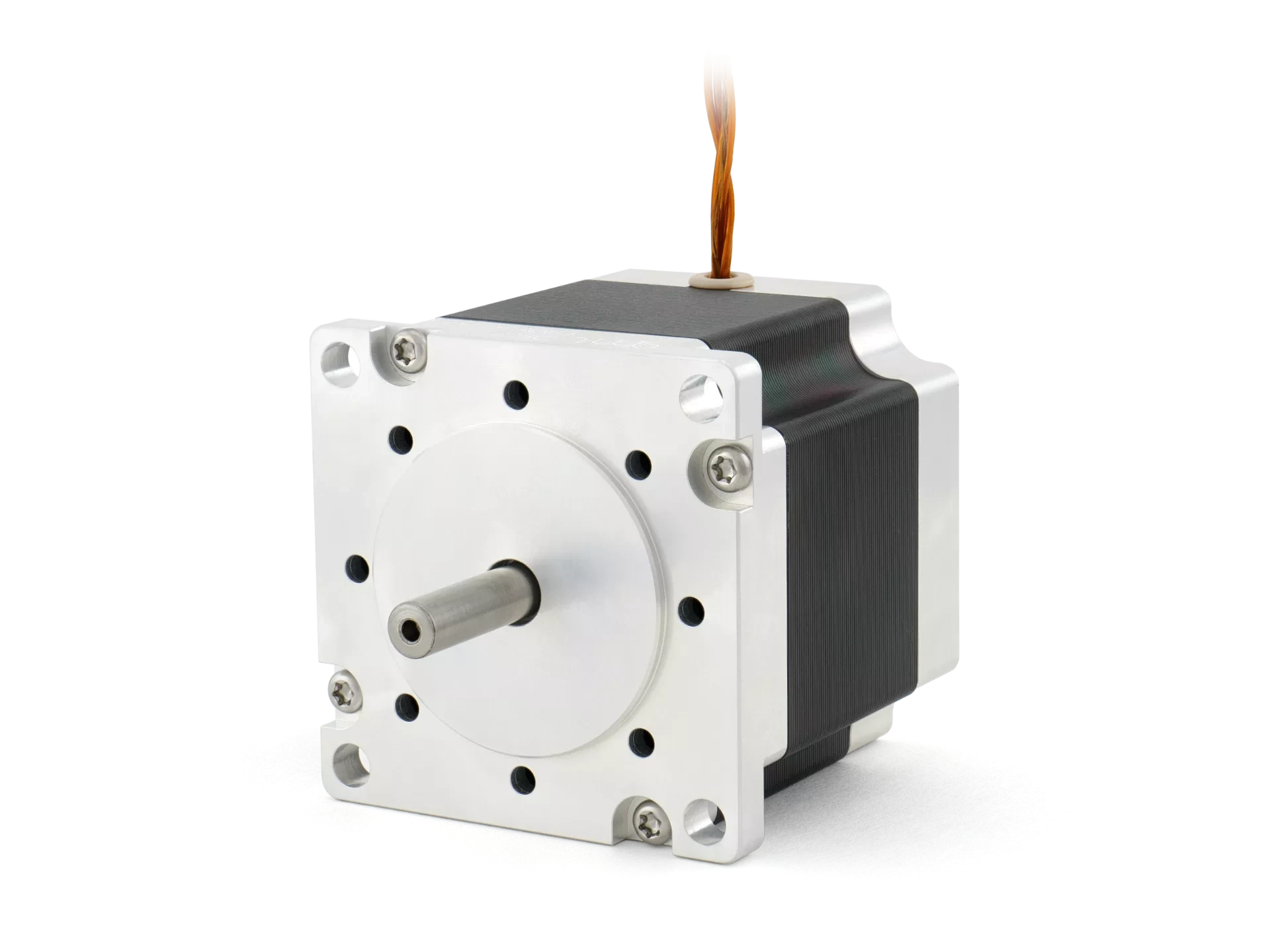

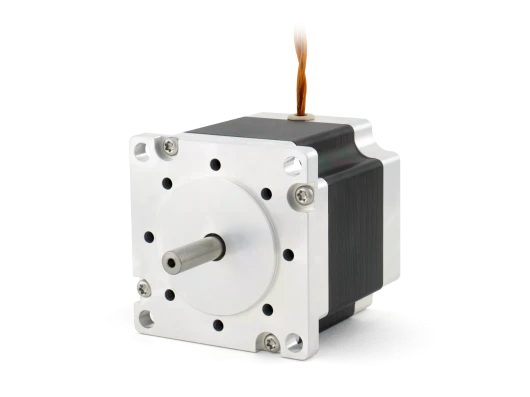

D57.1 UHV Stepper Motor

1,000 mNm, NEMA 23

Suitable for use below 1 x 10^-10mBar (7.5 x 10^-11 Torr)

Continuous running in vacuum at high torque and step rates with AML drive

Bakeable to 200 °C

Step angle of 1.8°

Go to product
