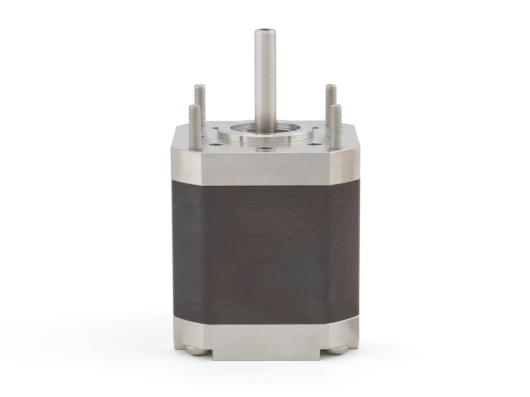

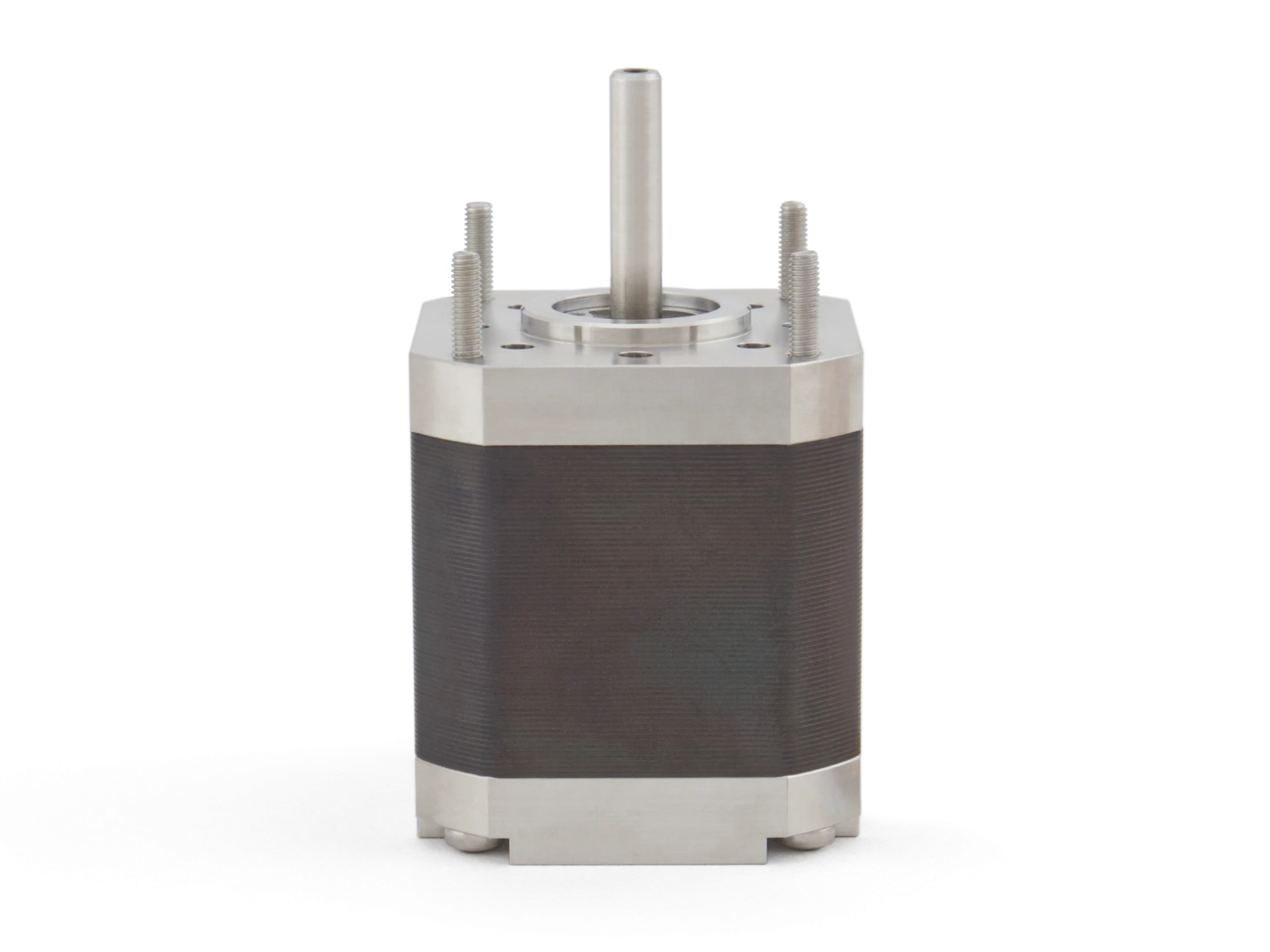

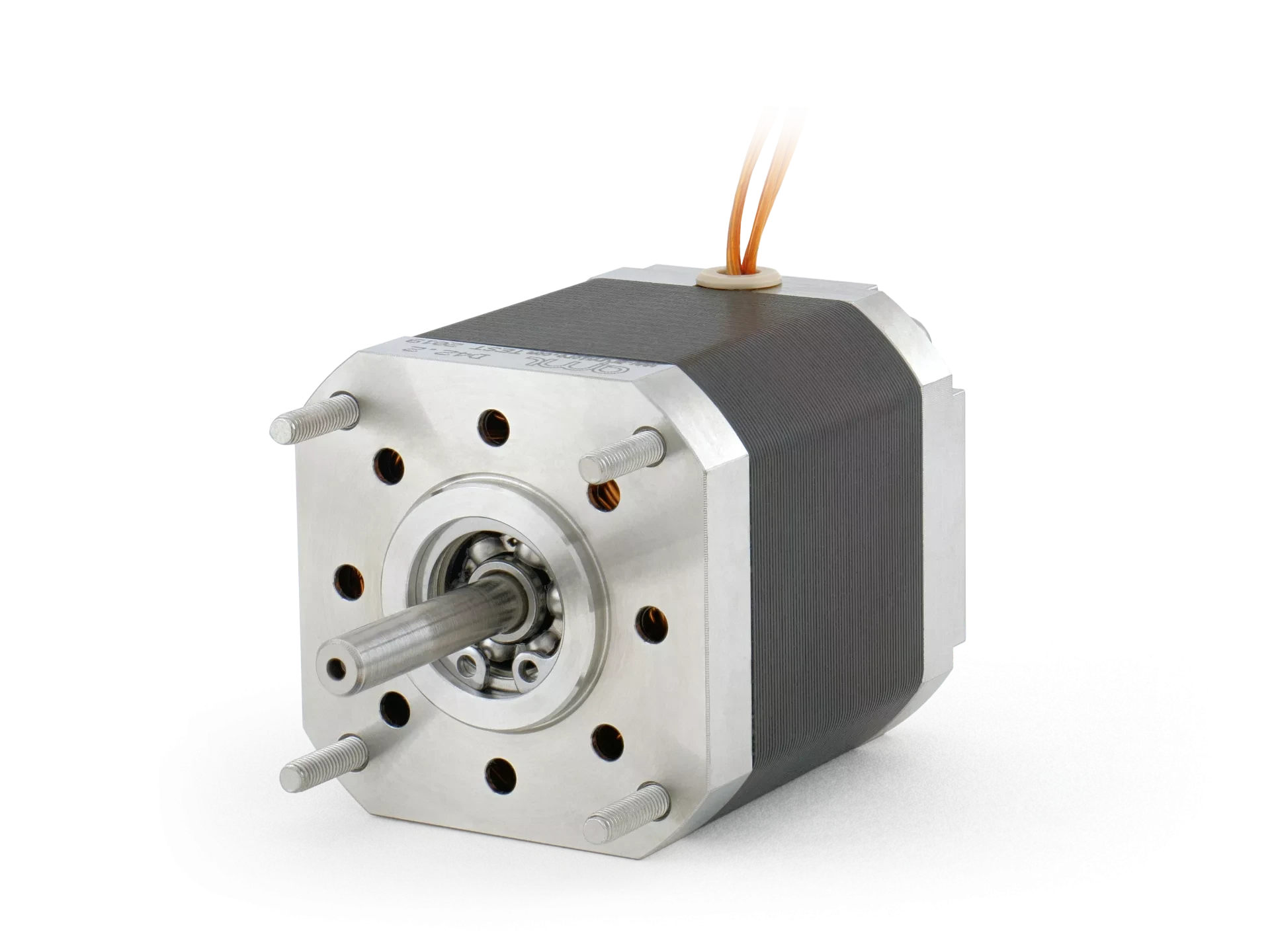

D42.2 UHV Stepper Motor
500 mNm, NEMA 17
From £760.00 excl. VAT and transportation cost$1,000.00 excl. VAT and transportation cost€920.00 excl. VAT and transportation cost
Overview
- Suitable for use below 1 x 10-10 mBar (7.5 x 10-11 Torr)
- Continuous running in vacuum at high torque and step rates with AML drive
- Bakeable to 200 °C
- Step angle of 1.8°
- Step angle tolerance of ±5%
- Operational temperature range -65 °C to +190 °C
- Embedded thermocouple or PT100 sensor
- Open construction with all internal spaces vented
- Cryogenic extended operating temperature option available, range -196 °C to +190 °C
- Gamma radiation hard versions available 1 x 106 Gy
- Standard motors are fitted with open stainless steel bearings, lubricated with NyeTorr® 6300 ultra low outgassing UHV grease
- Hybrid silicone nitride ceramic bearings option available, dry lubricated with tungsten disulfide
- Custom shaft modifications available
Order Code | Description |
Price
|
---|---|---|
D42.2 | 500 mNm UHV stepper motor | 760.001,000.00920.00 |
D42.2-C | D42.2, Cryogenic -196 °C to +190 °C | 853.001,120.001,030.00 |
D42.2-H | D42.2, Dry lubricated hybrid ceramic bearings | 853.001,120.001,030.00 |
D42.2-P | D42.2 with PT100 temperature sensor in lieu of thermocouple | 808.001,065.00980.00 |
D42.2-R | D42.2, Gamma radiation hardened | 853.001,120.001,030.00 |
D42.2-X | D42.2 with shaft modification | 875.001,150.001,060.00 |
Related Products
![D42.1 UHV Stepper Motor](/images/products/90c8c4c86cf40dcc101f6f5553be4a34_medium.jpg)

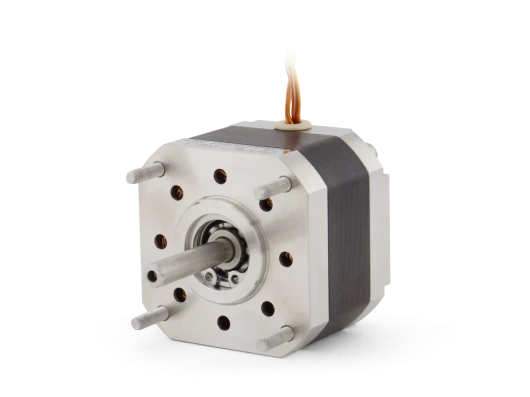

D42.1 UHV Stepper Motor
250 mNm, NEMA 17
![D42.3 UHV Stepper Motor](/images/products/05b7bcc6f58f3e1879ad73f7d1ae0eed_medium.jpg)

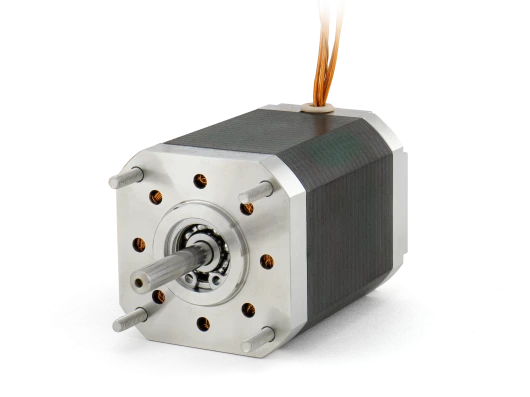

D42.3 UHV Stepper Motor
