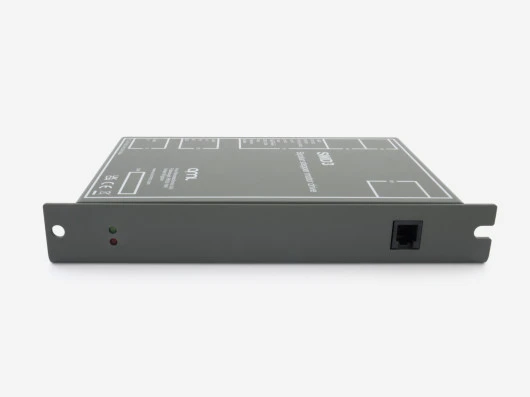

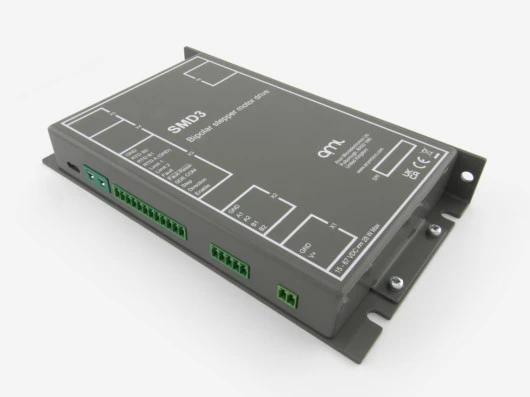

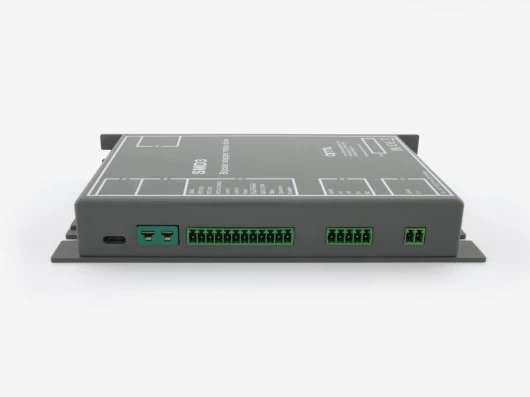

SMD3 Stepper Motor Drive

Single-axis bipolar stepper motor drive

From £350.00 excl. VAT and transportation cost

The SMD3 is a single-axis bipolar stepper motor drive that is engineered to operate vacuum-compatible stepper motors with maximum performance while minimising temperature rise. It is optimised for use with AML UHV-compatible motors.

Powerful software is supplied with the SMD3 that enables you to control and configure multiple SMD3 units simultaneously, in a single user-friendly graphical interface.

Overview

  • Single-channel UHV stepper motor drive optimised for vacuum use, ideally suited for use with our range of UHV stepper motors
  • Advanced low-power drive techniques for minimum motor temperature rise, minimum outgassing and maximum operating time
  • Holding torque can be controlled independently of dynamic torque under program control, to reduce power
  • Full-step and up to 256x micro-step resolution, with user-configurable transition from micro step to full-step mode (stops on full-step positions only; micro-stepping used for control of resonance and smoother step transition)
  • Continuous monitoring of motor temperature with automatic shutdown if motor temperature exceeds tolerable levels
  • Current adjustable from 0 A to 1 A RMS in approx. 30 mA steps
  • 2 x configurable limit inputs
  • Opto-coupled step, direction and enable interface
  • Control via USB
  • Comprehensive configuration and control software supplied, or interface to your own application. C# API is available
Order Code Description Price £
SMD3 Stepper motor drive - Coming Soon350.00

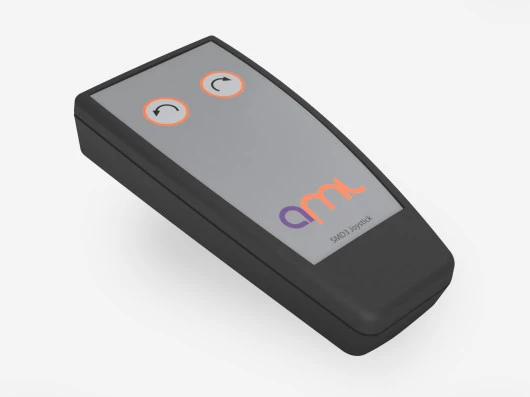

SMD3JOY Two Button Joystick - Coming Soon68.00
SPSU48V 48 Vdc, 60 W Power Supply - Coming Soon42.00
General
Interface

USB Type-C (appears as virtual COM port on PC)

Dimensions

180 mm x 105 mm x 26 mm

Weight

0.6 kg

Protection class

IP 20

Temperatures

Operation 10°C to 60°C,
Storage -10°C to 85°C

Power supply

External 15 Vdc to 67 Vdc power supply required

Power comsumption

28 W maximum

Motor
Suitable types

2 phase bipolar stepper motor with 4 leads

Phase current

Up to 1 A RMS, adjustable in 30 mA steps

Source voltage

As supply voltage, 67 Vdc maximum

Resolution

Full-step, 2, 4, 8, 16, 32, 64, 128, 256 micro-stepping

Protection

Motor temperature monitored via integral RTD or thermocouple

Operating Modes
USB Remote Control

USB Remote Control diagram

  • Accepts commands from host PC or PLC
  • Powerful software supplied
  • Control and configure multiple axes at once
Step and direction

Step and direction diagram

  • Opto-isolated step, direction enable
  • Configurable rising or rising/falling edge
  • Interpolation feature: full-step input can be interpolated up to 256x, reducing step input frequency while keeping the benefits of micro-stepping
Step and direction triggered

Step and direction triggered diagram

  • Start/stop using step signal, CW/CCW according to direction signal
  • Motor moves according to configured velocity profile
Joystick

Joystick diagram

  • Ideal for basic movement during commissioning
  • Press for one step, press and hold for slew
  • Latching mode: press to start/stop
Limits
Quantity

2

Compatible switch types

Mechanical NO or NC (polarity selectable)

Protection

Withstands continuous short to 24 V maximum

Miscellaneous

Source current < 1 mA

Motor temperature measurement
Type

Selectable PT1000 RTD or K-Type thermocouple

Range

0°C to 200°C

Accurancy

±5%

Fault detection

Open and short circuit

SDE (step, direction enable) interface
Type

Optocoupled, bi-directional LED

Levels

3.3 Vdc to 24 Vdc maximum

Maximum frequency

2 MHz at 50% duty

Joystick
Connection

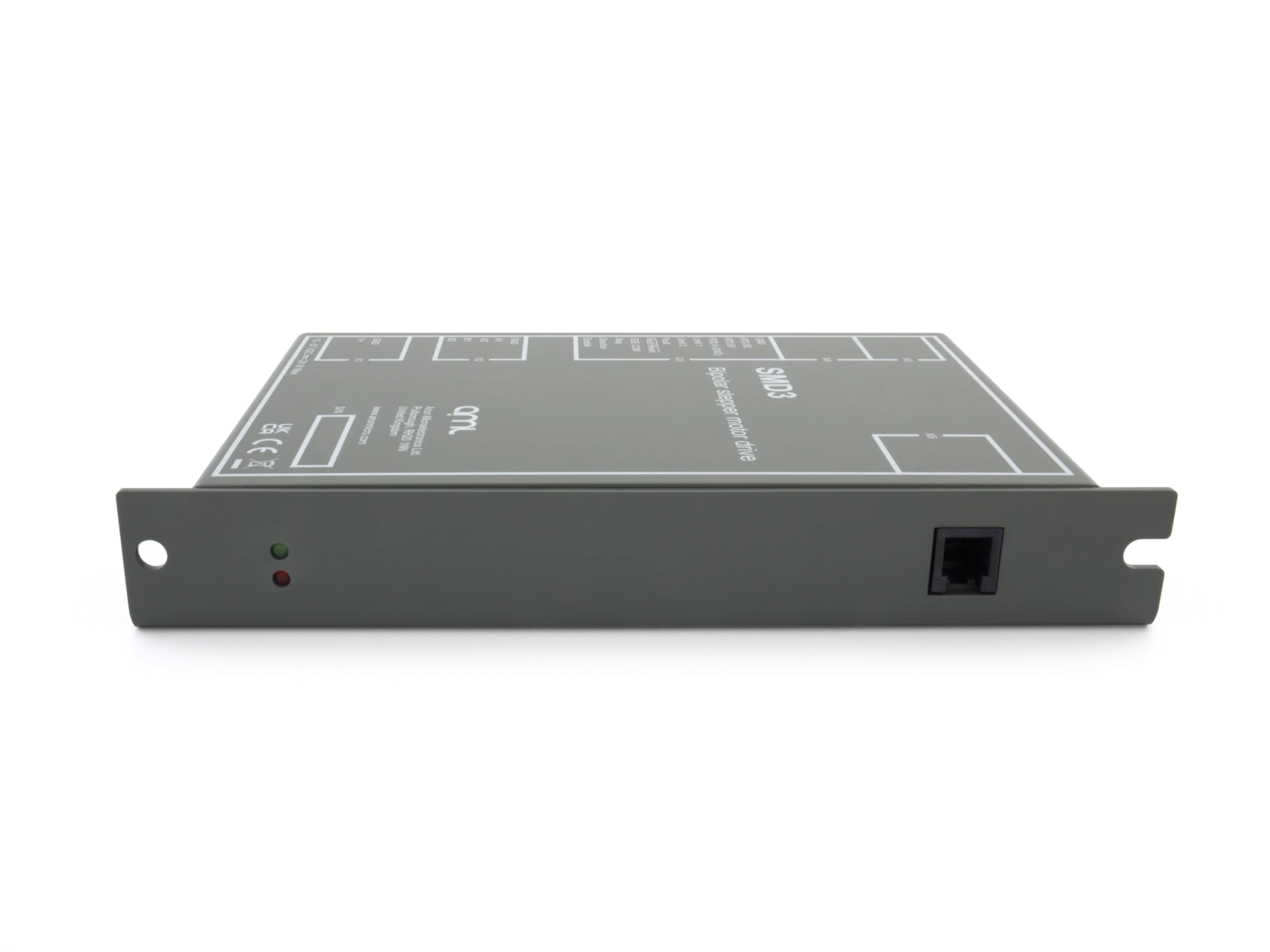

Front panel mounted 4P4C jack

Input type

Active low, short to ground active function

Miscellaneous

Open circuit voltage 3.3 V, source current < 3.5 mA

Software
Compatibility

Windows 7 or later

Features

Powerful bundled software allows you to easily configure and control multiple SMD3 units at once.

View critical motor properties, such as temperature, absolute and relative position. Highly configurable limits setup; change polarity, swap or rename your limits.

Command movements with the press of a button; easily toggle between velocity and absolute or relative positioning modes.

Save your project to file; quickly reconfigure the system by loading different projects. Choose to save configuration to the SMD3 units and or file.

SMD3 Software Screenshot  SMD3 Software Screenshot



Related Products

UHV Stepper Motor Gearheads

UHV Stepper Motor Gearheads

UHV planetary gearheads for use with AML stepper motors to increase step resolution and torque.

UHV Compatible Stepper Motors

UHV Compatible Stepper Motors

Ultra High Vacuum stepper motors. Available in a range of sizes with torque ratings from 70 mNm to 800 mNm. They are suitable for low speed precision in-vacuum manipulation without the use of particle generating motion feed-throughs.

Electrical Feedthrough

Electrical Feedthrough

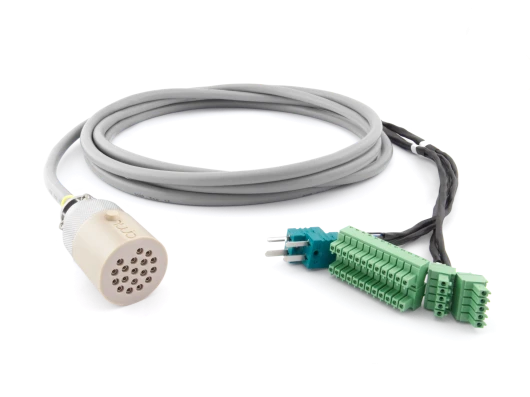

MLF18F 18-way feedthrough on a DN40 CF flange (70 mm OD). Individual glass compression seals and bakeable to 250°C.
