UHV Mechanisms

These products include: Linear Translators, Rotary Stages and Stepper Motor Gearboxes.

UHV Linear Translator

UHV Linear Translator

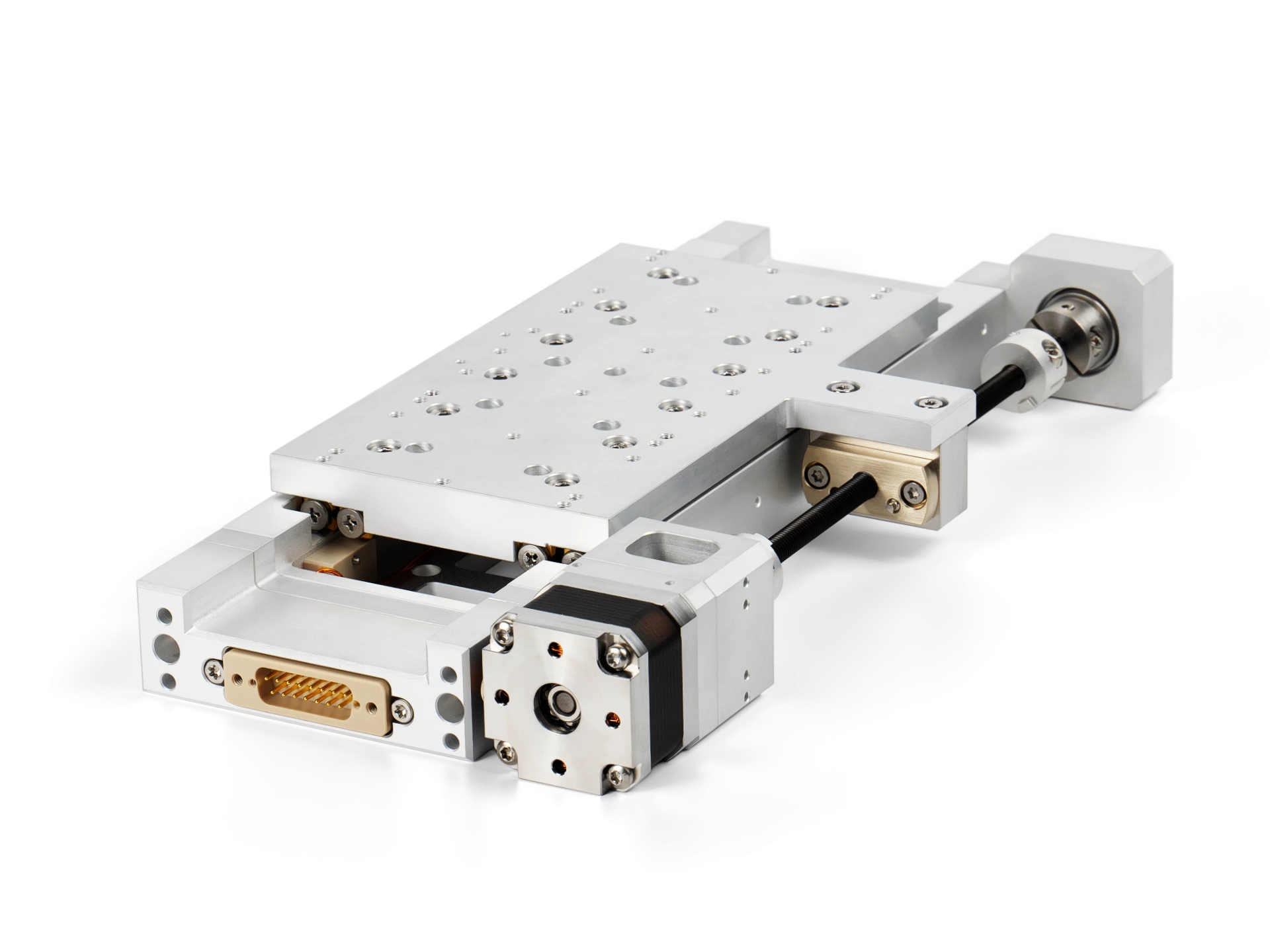

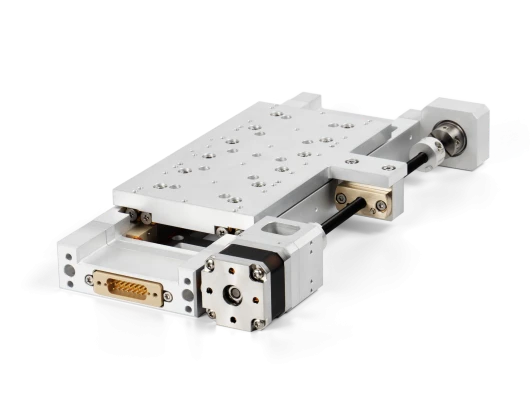

LTV linear translators with 1 µm or 5 µm resolution per step and traverse speeds of 5 or 15 mm/sec. Directly stackable for XYZ with standard ranges of movement from 50 mm to 250 mm.

UHV Linear Translator (Rigid)

UHV Linear Translator (Rigid)

LTX linear translators for larger loads and rigidity than available with the LTV version. 1 µm or 5 µm resolution per step and traverse speeds of 5 or 15 mm/sec. Directly stackable for XYZ with standard ranges of movement from 25 mm to 85 mm.

UHV RSB Rotation Stage

UHV RSB Rotation Stage

RSB rotational stages available with various ratios. Directly stackable with AML linear translators.

UHV RSX Rotation Stage

UHV RSX Rotation Stage

The RSX3K6 features a precision cross-roller ring bearing providing high rotational accuracy capable of bearing loads in every direction.

Stepper Motor Controller

Stepper Motor Controller

SMD210 Stepper motor controller specifically designed to match AML motors. Two motors may be driven sequentially under host computer control, an internally stored program or manually using the front-panel or a hand-held joystick.

Electrical Feedthrough

Electrical Feedthrough

MLF18F 18-way feedthrough on a DN40 CF flange (70 mm OD). Individual glass compression seals and bakeable to 250°C.

Vacuum-Side Connector

Vacuum-Side Connector

MLF18VCF/M bakeable male and female 18-way connectors. The female connector mates to either the male connector or to the vacuum-side of the MLF18F feedthrough.

SMD210 Connecting Cable

SMD210 Connecting Cable

Cable to connect the SMD210 stepper motor drive to a MLF18F feedthrough.
