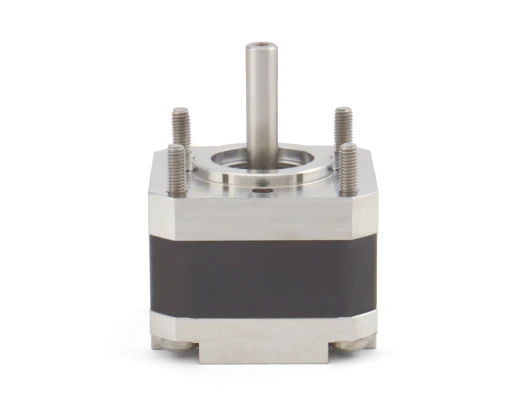

D35.1 UHV Stepper Motor
75 mNm, NEMA 14
From £680.00 excl. VAT and transportation cost$895.00 excl. VAT and transportation cost€825.00 excl. VAT and transportation cost
Overview
- Suitable for use below 1 x 10-10 mBar (7.5 x 10-11 Torr)
- Continuous running in vacuum at high torque and step rates with AML drive
- Bakeable to 200 °C
- Step angle of 1.8°
- Step angle tolerance of ±5%
- Operational temperature range -65 °C to +190 °C
- Embedded thermocouple or PT100 sensor
- Open construction with all internal spaces vented
- Cryogenic extended operating temperature option available, range -196 °C to +190 °C
- Gamma radiation hard versions available 1 x 106 Gy
- Standard motors are fitted with open stainless steel bearings, lubricated with NyeTorr® 6300 ultra low outgassing UHV grease
- Hybrid silicone nitride ceramic bearings option available, dry lubricated with tungsten disulfide
- Custom shaft modifications available
Order Code | Description |
Price
|
---|---|---|
D35.1 | 75 mNm UHV stepper motor | 680.00895.00825.00 |
D35.1-C | D35.1, Cryogenic -196 °C to +190 °C | 773.001,015.00935.00 |
D35.1-H | D35.1, Dry lubricated hybrid ceramic bearings | 773.001,015.00935.00 |
D35.1-P | D35.1 with PT100 temperature sensor in lieu of thermocouple | 728.00960.00880.00 |
D35.1-R | D35.1, Gamma radiation hardened | 773.001,015.00935.00 |
D35.1-X | D35.1 with shaft modification | 795.001,045.00960.00 |
