VCC7 UHV Connectors
Mating - 7 pin, UHV PEEK connectors
From £53.00 excl. VAT and transportation cost$75.00 excl. VAT and transportation cost€65.00 excl. VAT and transportation cost

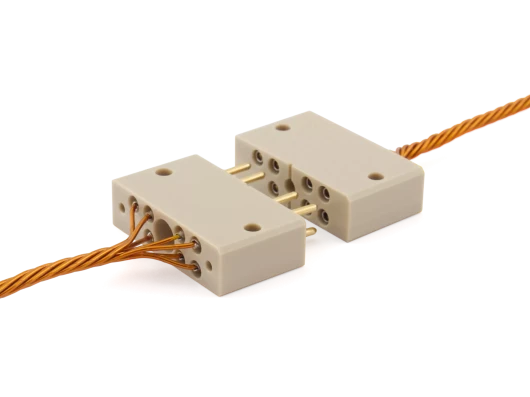

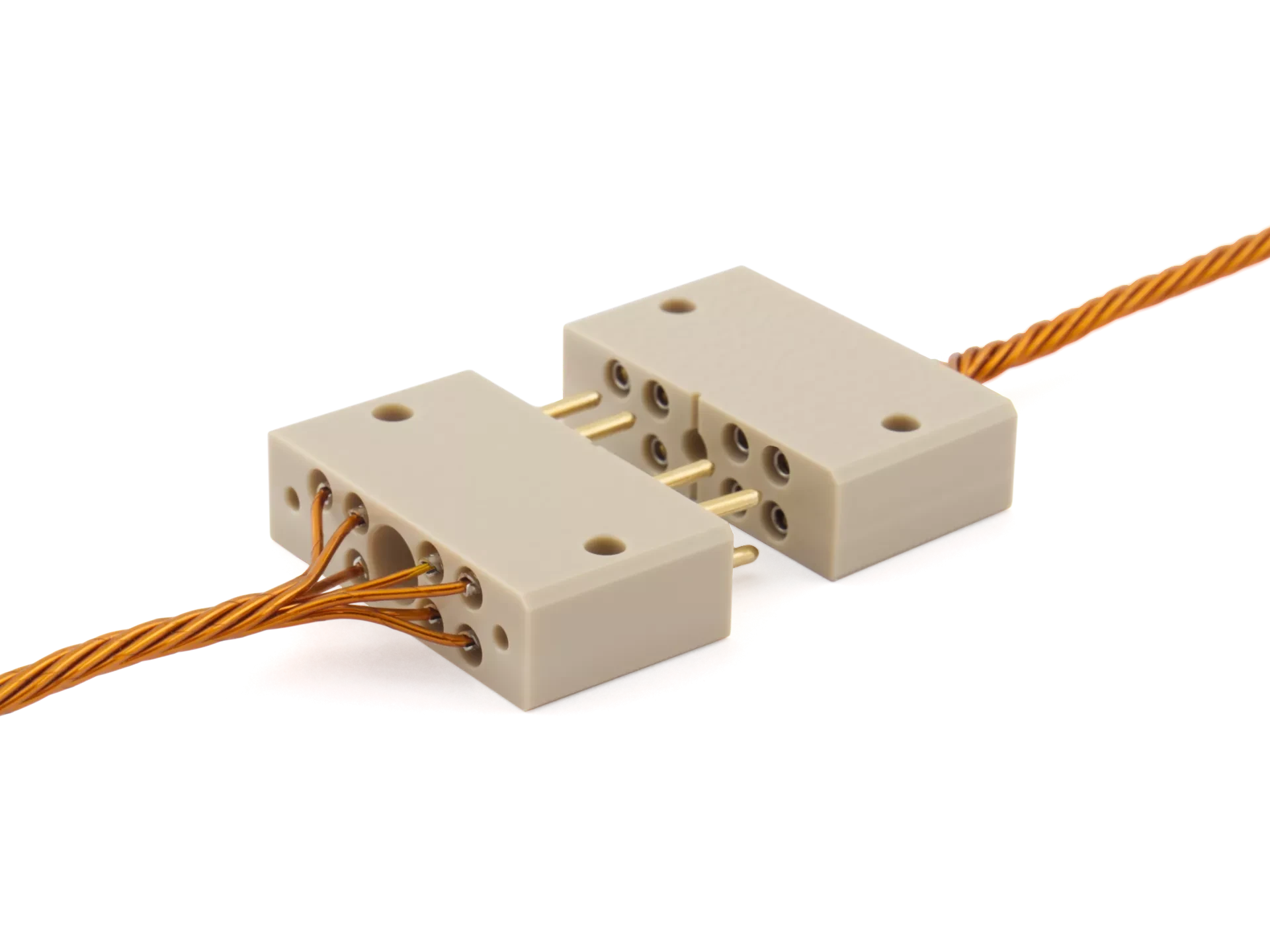

UHV PEEK 7-Way Vacuum Compatible Connectors.
Overview

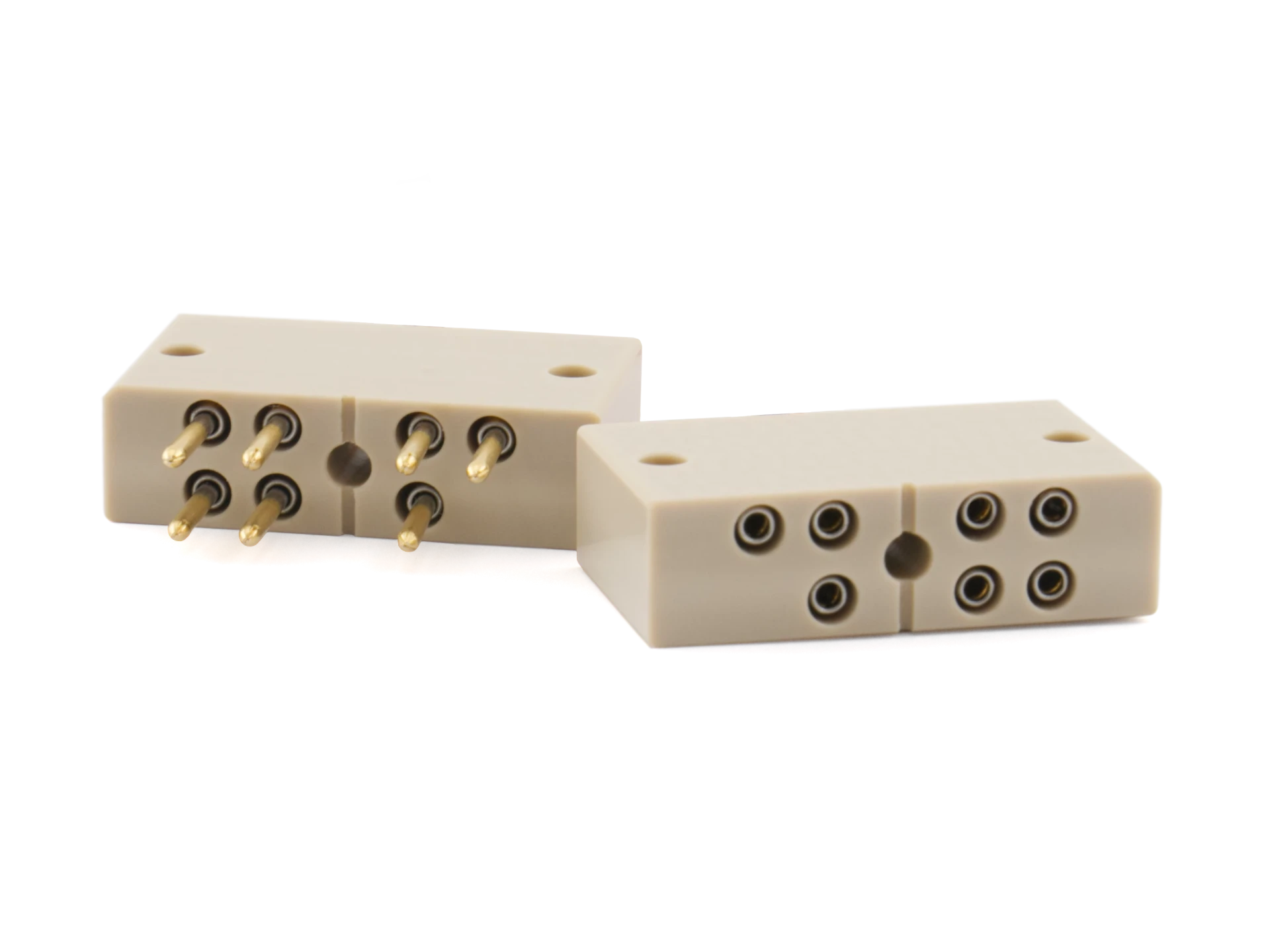

- 7-way male and female connectors suitable for use in UHV
- Bakeable to 250°C
- 200 V, 5 A per pin. 15 A maximum per connector
- Gold plated pin / socket crimp contacts included. 26~24 AWG
- PEEK connectors with locking screws
- Surface mountable
| Order Code | Description |
Price
|
|---|---|---|
| VCC7F | UHV, 7-way female connector | 53.0075.0065.00 |
| VCC7M | UHV, 7-way male connector | 54.0075.0070.00 |
