MLF18 18-way Electrical Feedthrough
MLF18F
£234.00 excl. VAT and transportation cost$310.00 excl. VAT and transportation cost€285.00 excl. VAT and transportation cost

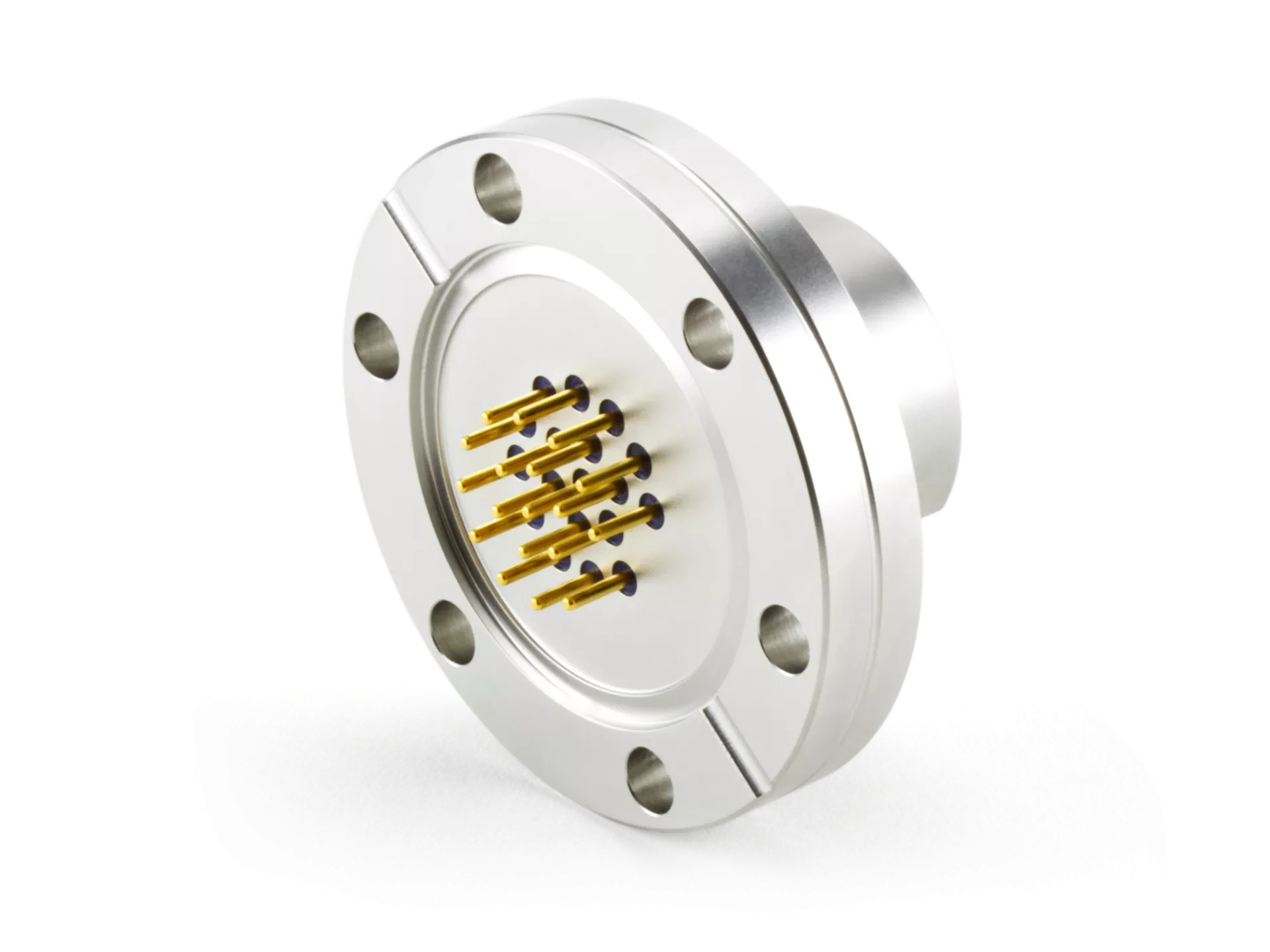

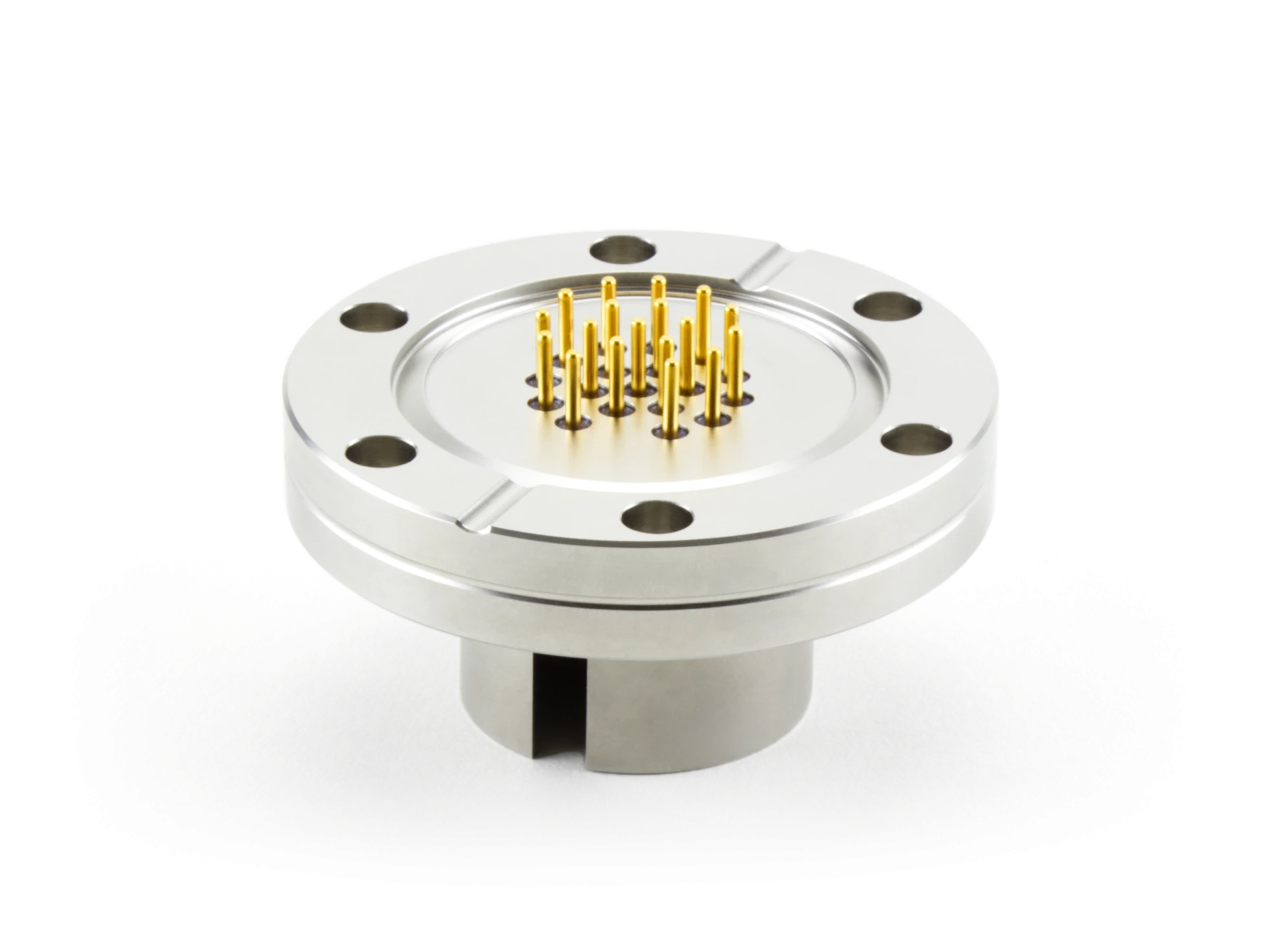

MLF18F 18-way feedthrough on a DN40 CF flange (70 mm OD). Individual glass compression seals and bakeable to 250°C.
Overview
- 18-way feedthrough on DN40 CF (70 mm OD) with individual glass compression seals
- Suitable for use to 1 x 10 -9 mBar (7.5 x 10-10 Torr)
- Bakeable to 250°C
- Male to male connection
- 1.5 mm gold plated pins
- Rating. 200 V, 5 A per pin. 15 A maximum per feedthrough
Order Code | Description |
Price
|
---|---|---|
MLF18F | Feedthrough, 18-way, GMS, NW35CF | 234.00310.00285.00 |
