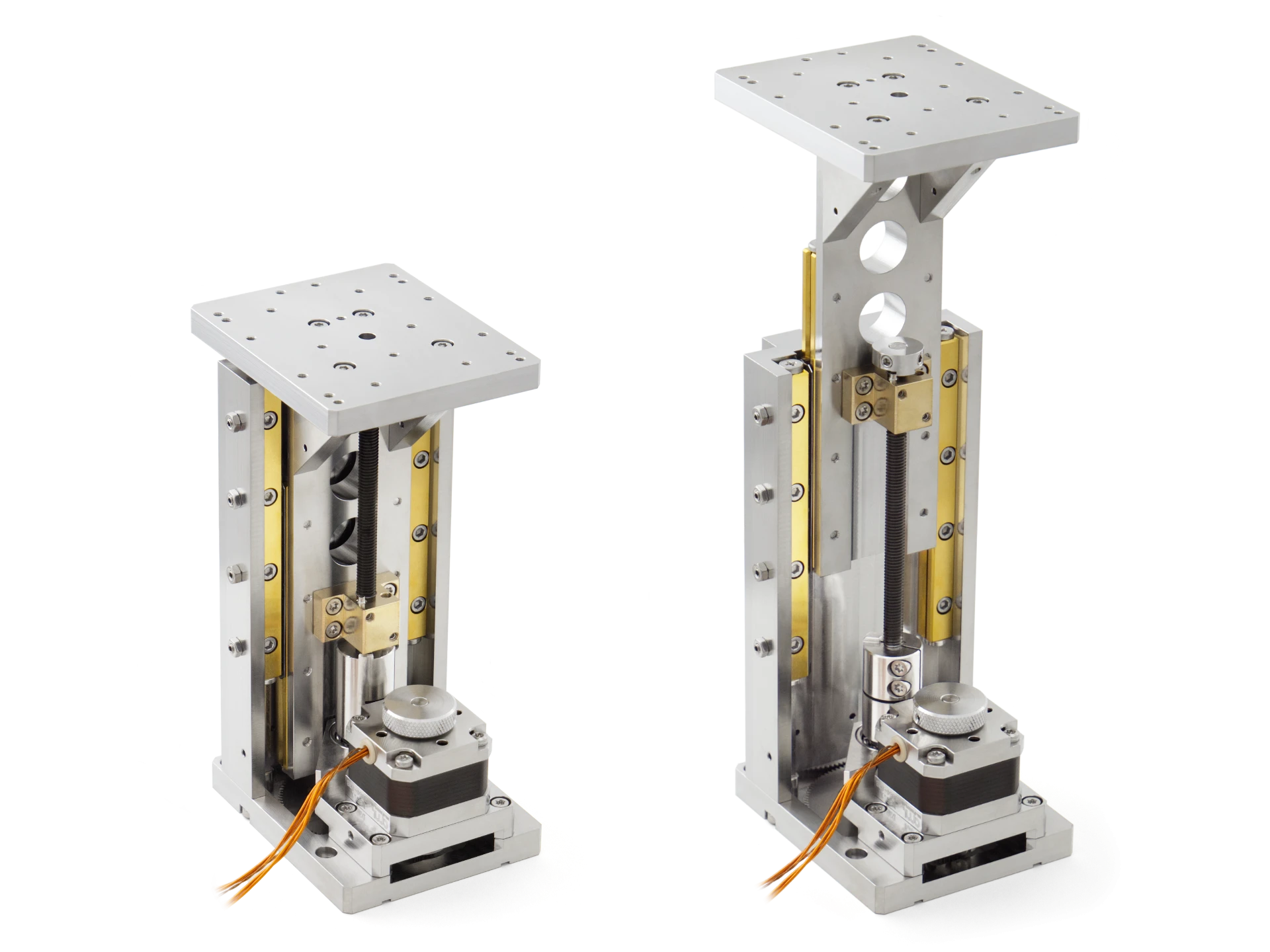

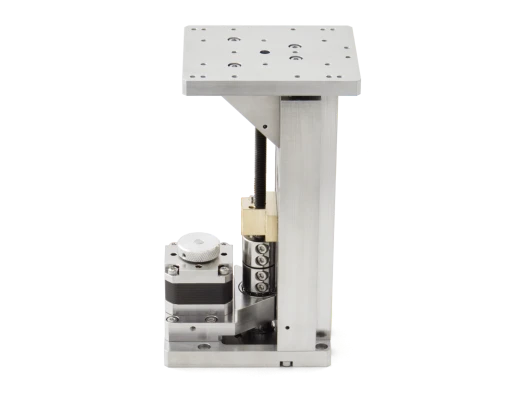

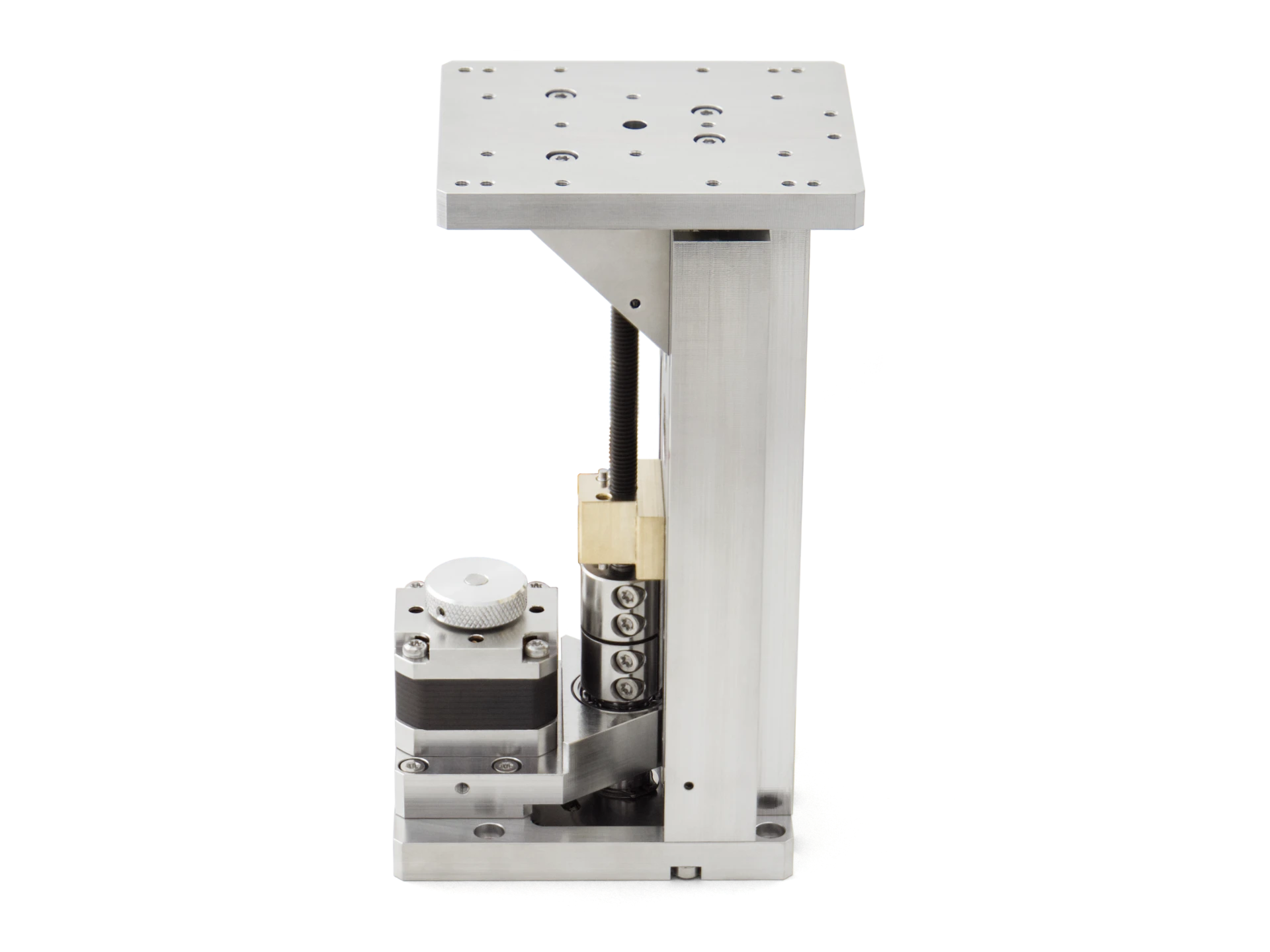

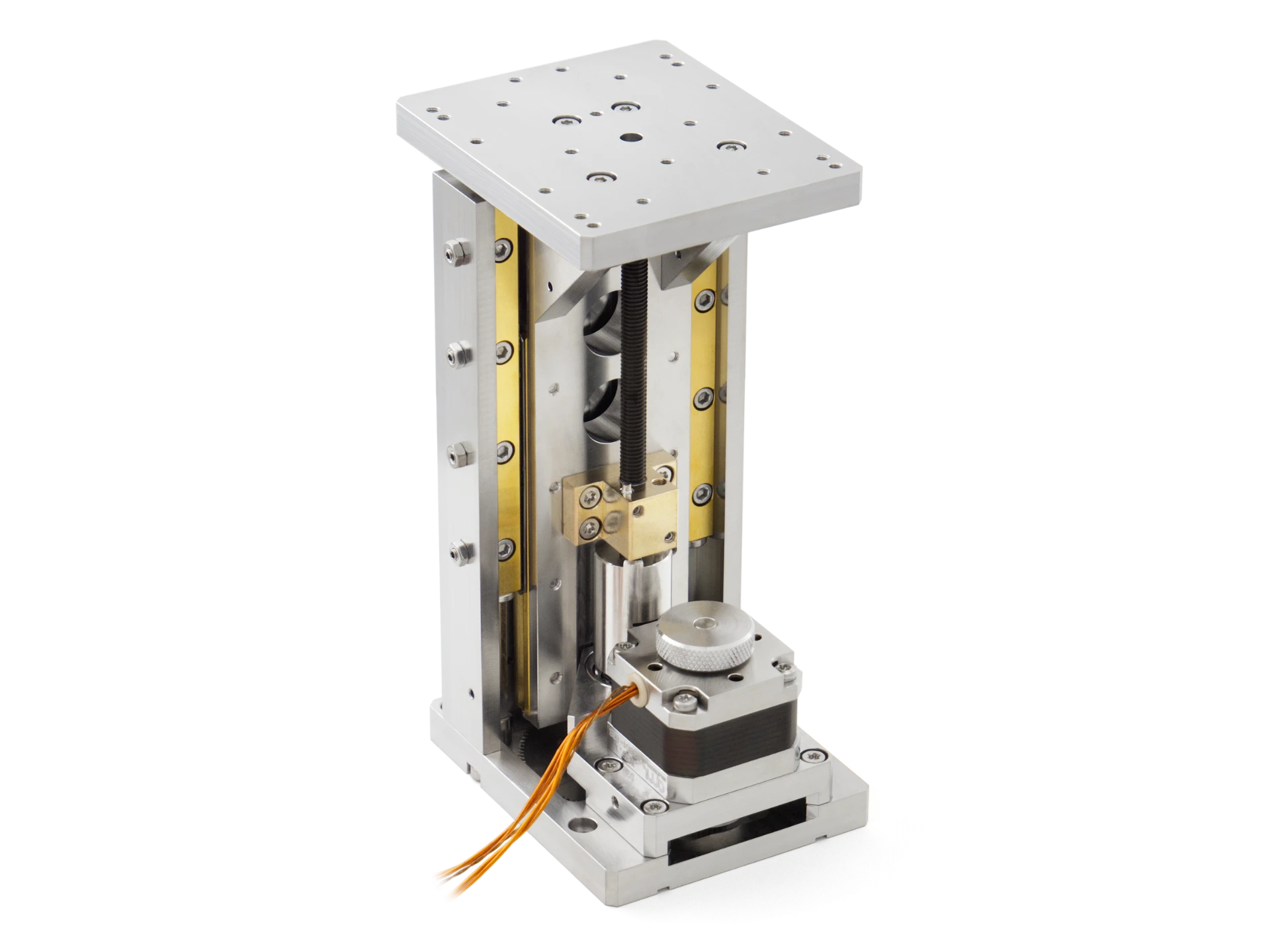

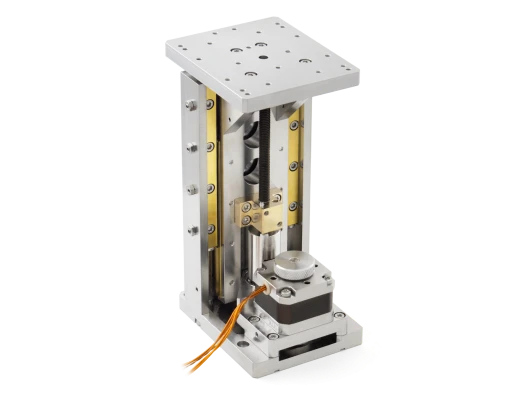

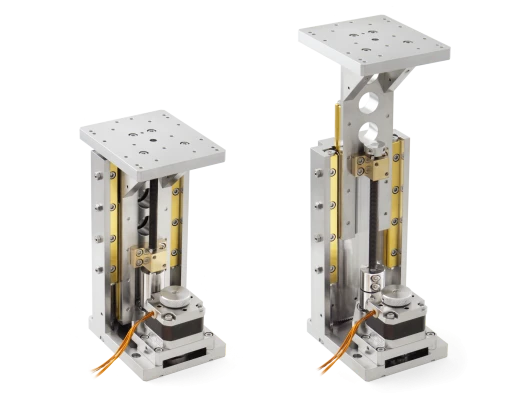

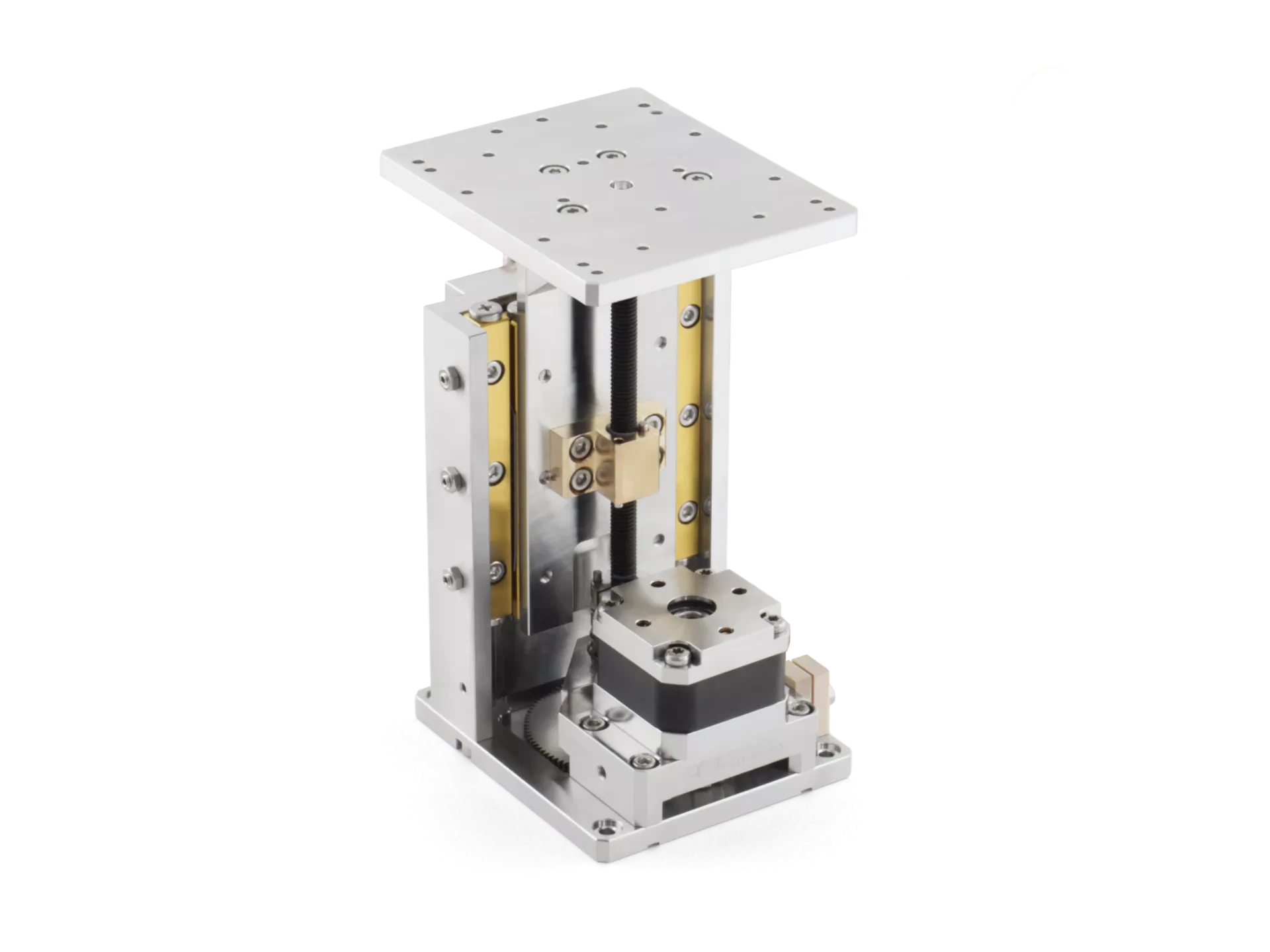

VSM17-Z

High Performance, Modular UHV Stage for Z-Axis Translation.

From £3,566.00 excl. VAT and transportation cost$4,600.00 excl. VAT and transportation cost€4,260.00 excl. VAT and transportation cost

Linear vertical translation stage suitable for use in UHV. Can support loads of up to several kilograms and travel from 50 mm. Designed specifically for Z-axis translation, the sample table is always above the mechanism across the stage's full range of travel. Suitable for loads up to 30 kg.

Overview

  • Standard travels from 50 to 70 mm
  • 1 µm resolution
  • 30 kg centred load capacity
  • Maximum speed of 5 mm/sec
  • Designed for Z-axis translation
  • Suitable for use to 1 x 10-10 mBar
  • Bakeable to 200 °C
Order Code Description
Price
VSM17-Z-050 50 mm Travel, 1 µm Resolution3,566.004,600.004,260.00
VSM17-Z-070 70 mm Travel, 1 µm Resolution4,130.005,325.004,930.00
