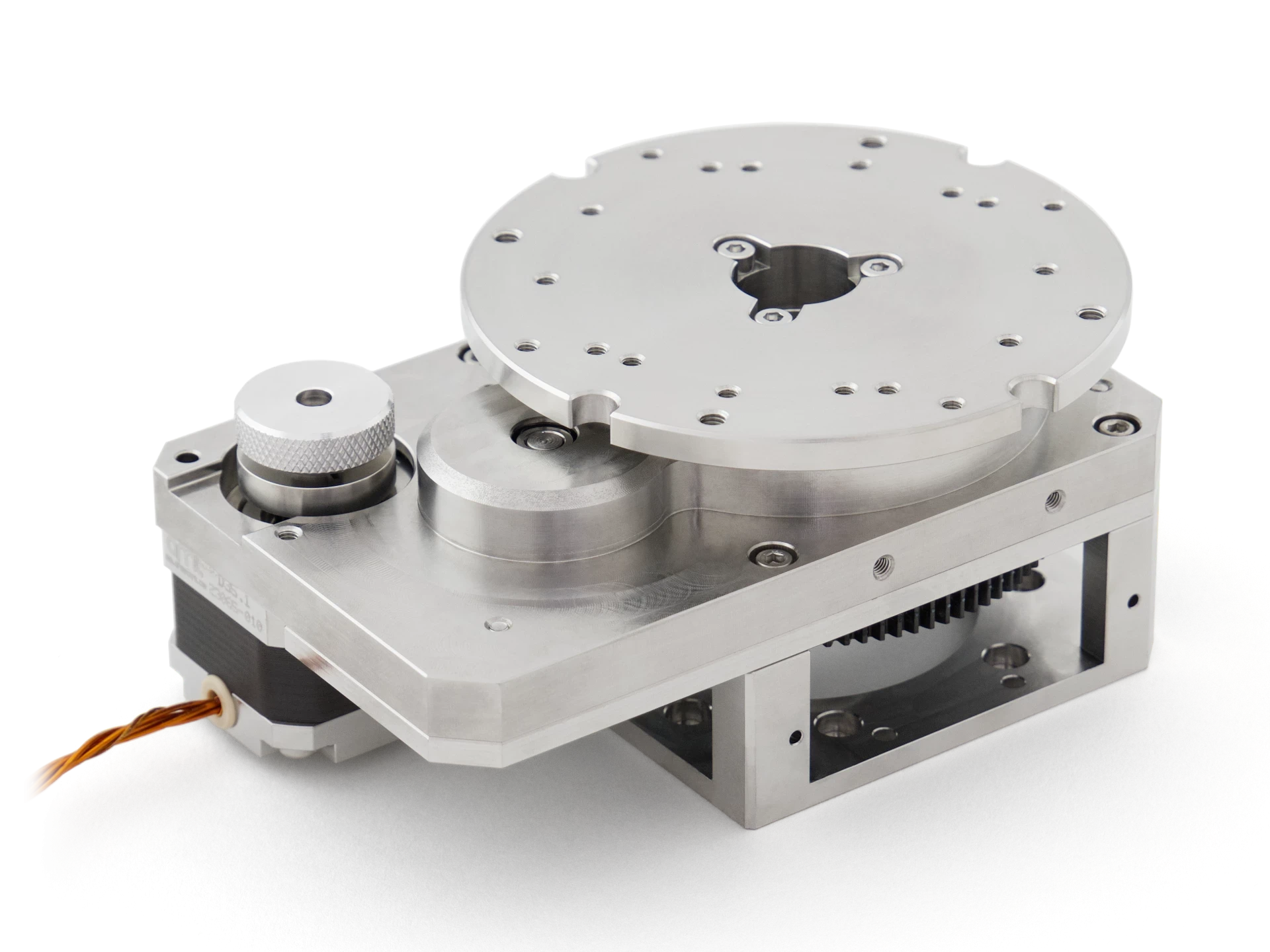

VSM17-R-3K6

Zero Backlash UHV Rotation Stage.

£4,934.00 excl. VAT and transportation cost$6,400.00 excl. VAT and transportation cost€5,890.00 excl. VAT and transportation cost

Rotation stage suitable for use in UHV. Can support loads of up to 100 kg. 0.1° resolution with 360° of continuous rotation.

Overview

  • 360° continuous rotation range
  • 0.1° resolution per step
  • Backlash less than the resolution
  • Load capacity 100 kg
  • Maximum loaded speed of up to 100 rpm
  • Maximum torque of up to 1 Nm
  • Suitable for use to 1 x 10-10 mBar
  • Bakeable to 200 °C
Order Code Description
Price
VSM17-R-3K6 0.1° Resolution, Continuous Rotation4,934.006,400.005,890.00
