VSM Stage Mounting Brackets and Table

Mounting Brackets and Table For UHV Compatible Stages.

From £169.00 excl. VAT and transportation cost$225.00 excl. VAT and transportation cost€205.00 excl. VAT and transportation cost

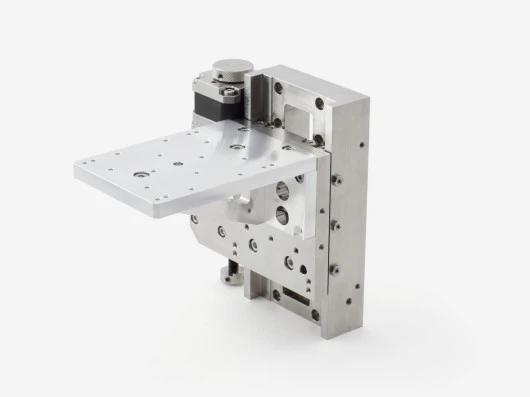

AML UHV compatible mounting brackets for use with VSM stages. Used to reorient stages and create complex multi-axis mechanisms with standard products. AML mounting brackets are constructed with lightweight uhv-prepared aluminium to reduce mass whilst maintaining stability.

Overview

  • Designed for AML VSM stages
  • Suitable for use to 1 x 10-10 mBar

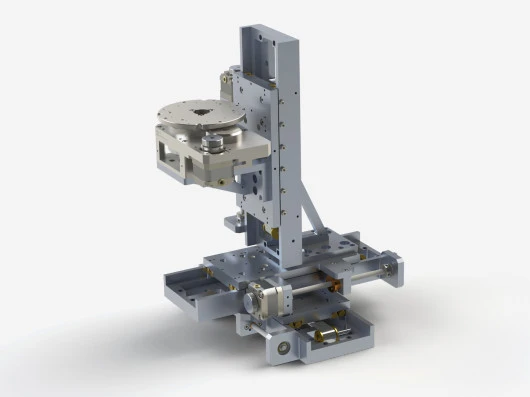

  • Create multi-axis systems with standard products
  • Lightweight UHV-prepared construction
  • Stainless steel construction available (option SS)
  • Bakeable to 150°C (200°C for option SS)
  • Adapt linear stages for vertical translation
  • Custom mounting brackets available
Order Code Description
Price
VSAB01 90° Mounting Bracket (Small)176.00235.00215.00

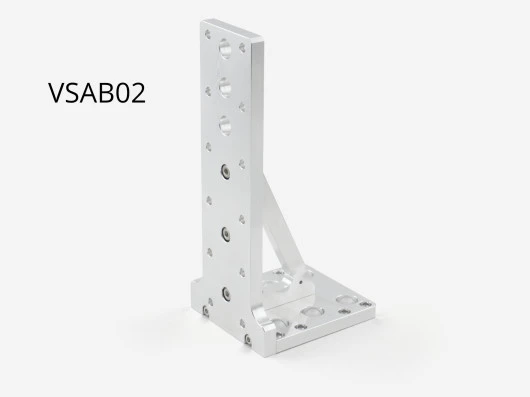

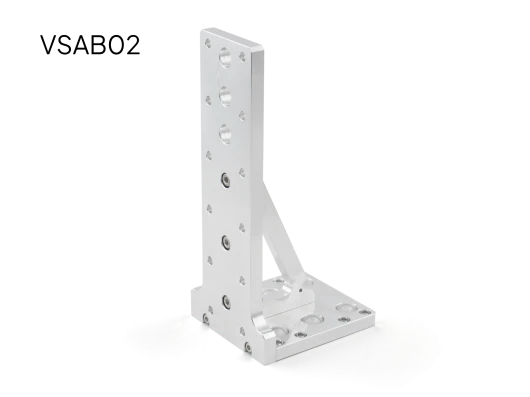

VSAB02 90° Mounting Bracket (Large)192.00255.00235.00

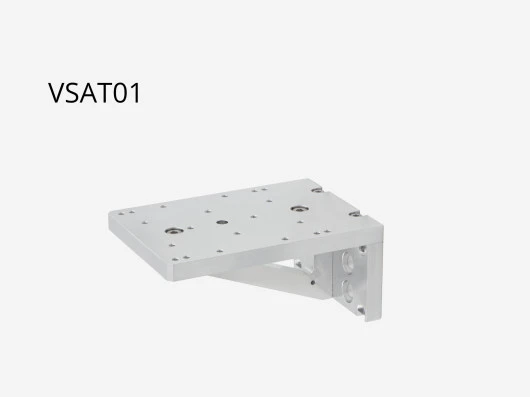

VSAT01 90° Table169.00225.00205.00
