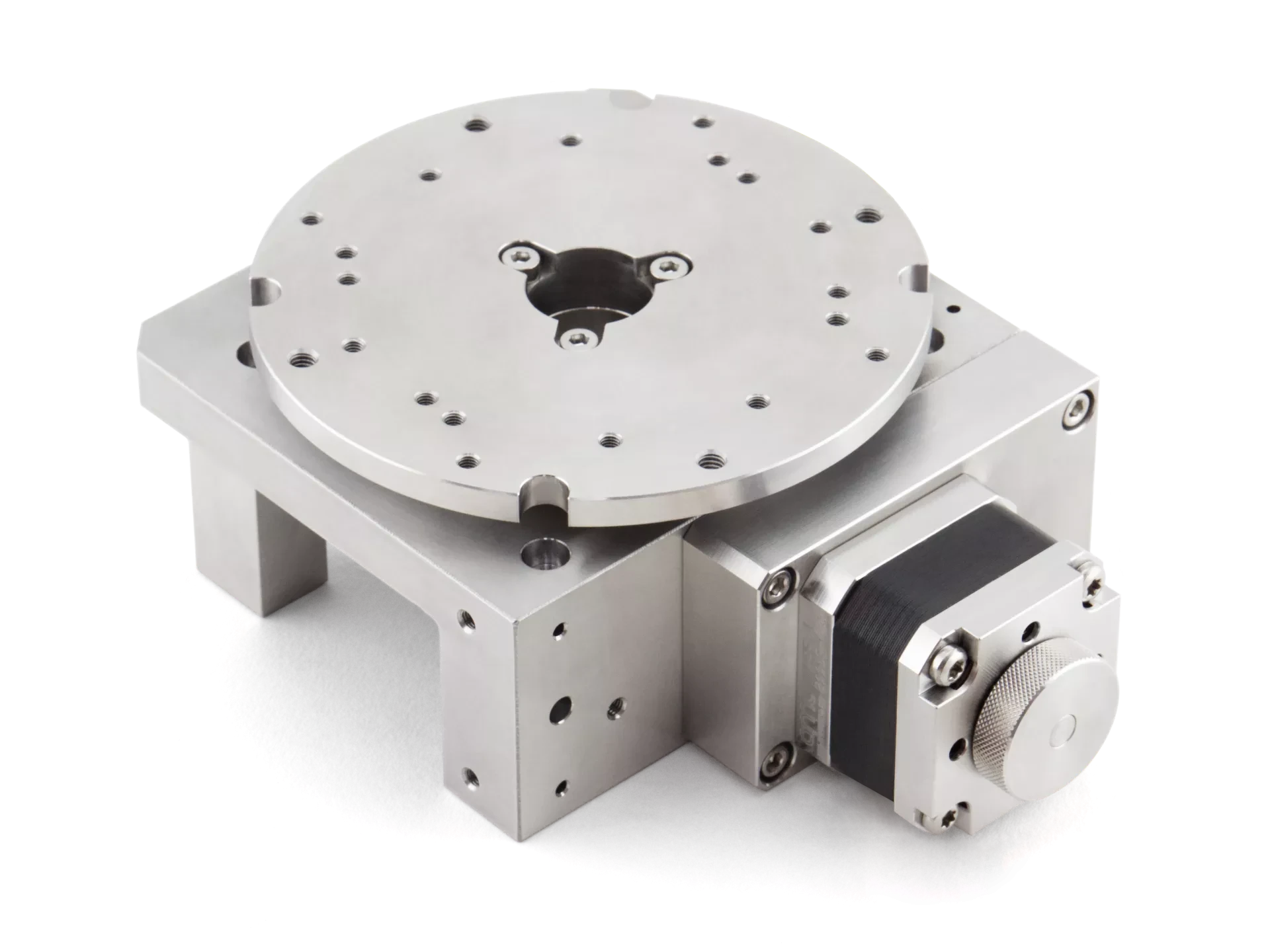

VSM17-R-72K
High Resolution UHV Rotation Stage.
£4,143.00 excl. VAT and transportation cost$5,440.00 excl. VAT and transportation cost€5,005.00 excl. VAT and transportation cost
Rotation stage suitable for use in UHV. Can support loads of up to 100 kilograms. Resolution 0.005° with 360° of continuous rotation.
Worm and wheel gearing means the stage cannot backdrive by forces applied to the mounting table.
Overview
- 360° continuous rotation range
- 0.005° resolution per step
- Backlash less than 0.2°
- Load capacity 100 kg
- Maximum loaded speed of up to 100 rpm
- Maximum torque of up to 8 Nm
- Suitable for use to 1 x 10-10 mBar
- Bakeable to 200 °C
Order Code | Description |
Price
|
---|---|---|
VSM17-R-72K | 0.005° Resolution, Continuous Rotation | 4,143.005,440.005,005.00 |
Related Products
![SMD4 Stepper Motor Drive](/images/products/44e6c58e752f2b1f30d22cba73177ff7_medium.jpg)
SMD4 Stepper Motor Drive
Stepper motor drive optimised for use with AML UHV-compatible motors.
![VSM Stage Mounting Brackets and Table](/images/products/1fad9581bd85cc6b9bb27d032da5b4c4_medium.jpg)
VSM Stage Mounting Brackets and Table
Mounting Brackets For UHV Compatible Stages.
![VSM17-R-3K6](/images/products/59d25e257e98add25f10029c548a2dfd_medium.jpg)

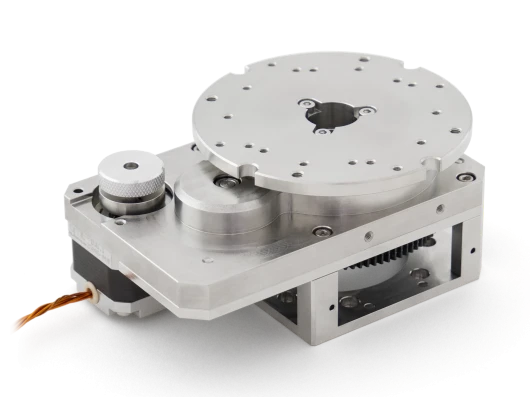

VSM17-R-3K6
Zero backlash UHV rotation stage. 0.1° resolution.
![VSM23-X](/images/products/8405b073db7cddc56cf584230e2392ee_medium.jpg)
VSM23-X
VSM23-X linear translation stage for ultra high vacuum applications. Travel ranges from 100 to 450 mm and can support loads up to 20 kg.
![VSM17-X](/images/products/9ebd7e8a8dff128c1d05a1336bd296dd_medium.jpg)
VSM17-X
High performance (rigid), modular UHV compatible stage. Travel ranges from 50 to 200 mm and can support looads up to 50 kg.
![VSM17-Z](/images/products/50a678c15fcf0b7d4e8706f35bcf3495_medium.jpg)
VSM17-Z
High performance, modular UHV stage for Z-axis translation.
![VSM17-G-070](/images/products/790ef2835cc95cbdfb93fc73454490fe_medium.jpg)
VSM17-G-070
High performance, modular UHV goniometer stage.
![VSM17-G-114](/images/products/2d4b793bd7f222a6ada4b19d1122b3db_medium.jpg)

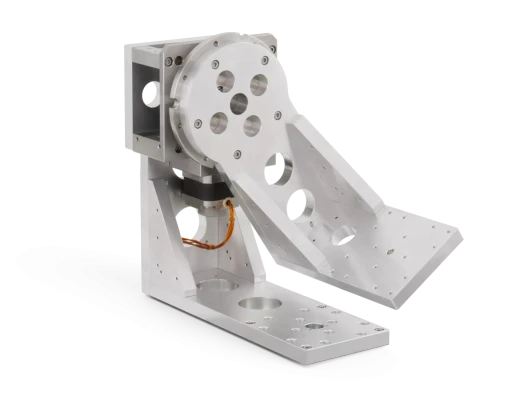

VSM17-G-114
