VSM24-R
High Load (Rigid) UHV Rotation Stage
£8,146.00 excl. VAT and transportation cost$11,035.00 excl. VAT and transportation cost€9,885.00 excl. VAT and transportation cost

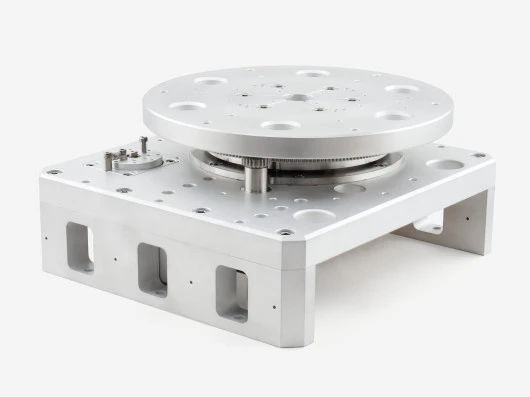

Ultra high vacuum compatible rotation stage designed for high load applications. Featuring high specification bearings and a rigid bearing arrangement, the VSM24-R is ideal for applications requiring high load capacity and cantilever loads.
An integrated D-sub connector is designed into the body of the stage for ease of connectivity.
Overview
- 360° continuous rotation range
- 0.005° resolution per step
- 0.15° backlash (<0.005° with optional anti-backlash spring)
- 250 kg centred normal load capacity
- Maximum unloaded speed of up to 5 rpm
- Maximum torque of up to 15 Nm
- Suitable for use to 1 x 10-10 mBar
- Bakeable to 150°C
| Order Code | Description |
Price
|
|---|---|---|
| VSM24-R | UHV Rotation Stage, 0.005° resolution (High Load) | 8,146.0011,035.009,885.00 |
