UHV Spur Gearhead

UHV Inline Spur Gearhead for use with AML D35.1 Stepper Motor

£2,381.00 excl. VAT and transportation cost$3,140.00 excl. VAT and transportation cost€2,890.00 excl. VAT and transportation cost

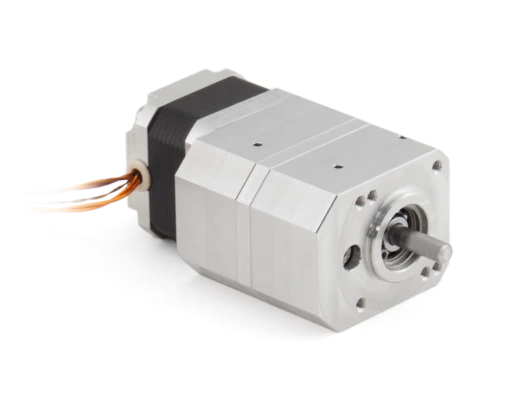

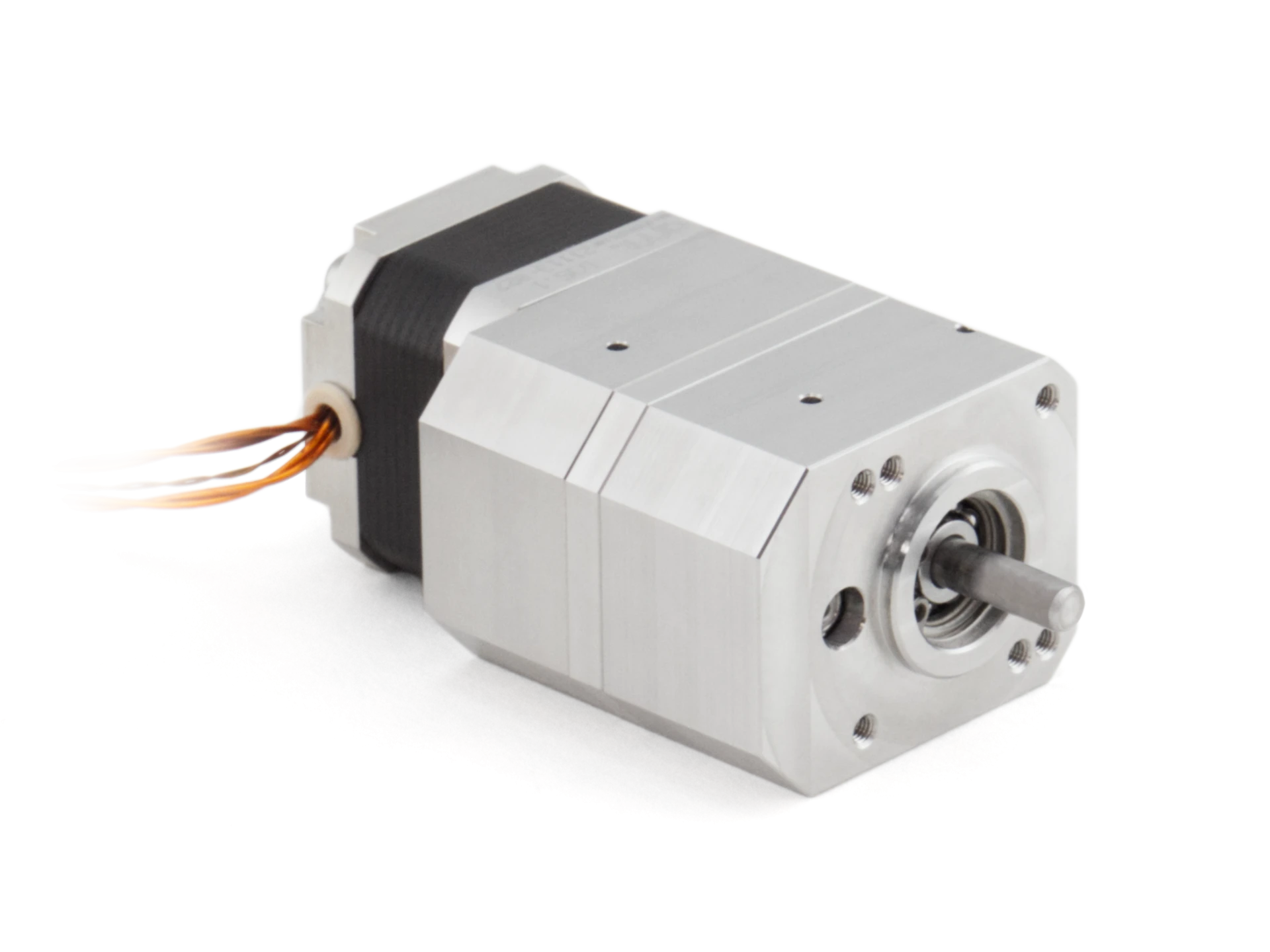

The SG35 Spur Inline Gearhead couples directly with the AML D35.1 stepper motor and is suitable for use in UHV environments. Used to increase resolution and torque multiplication. Designed for maximum torque capacity, high efficiency and zero backlash.

Overview

  • Suitable for use below 1 x 10-10 mBar
  • Ratio 5:1
  • Efficiency: >75%
  • Low inertia
  • High precision, zero backlash
  • Bakeable to 200 °C
  • In-line shafts
  • Anti-backlash spur gears
  • Operational temperature range -65 °C to +190 °C

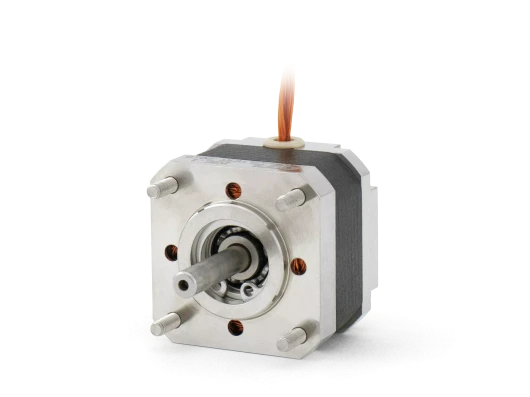

D35.1 UHV Stepper Motor included.

Gearheads cannot be dry lubricated.

Order Code Description
Price
SG35-005 UHV Inline Spur Gearhead with D35.1 Stepper Motor (Ratio 5:1)2,381.003,140.002,890.00
