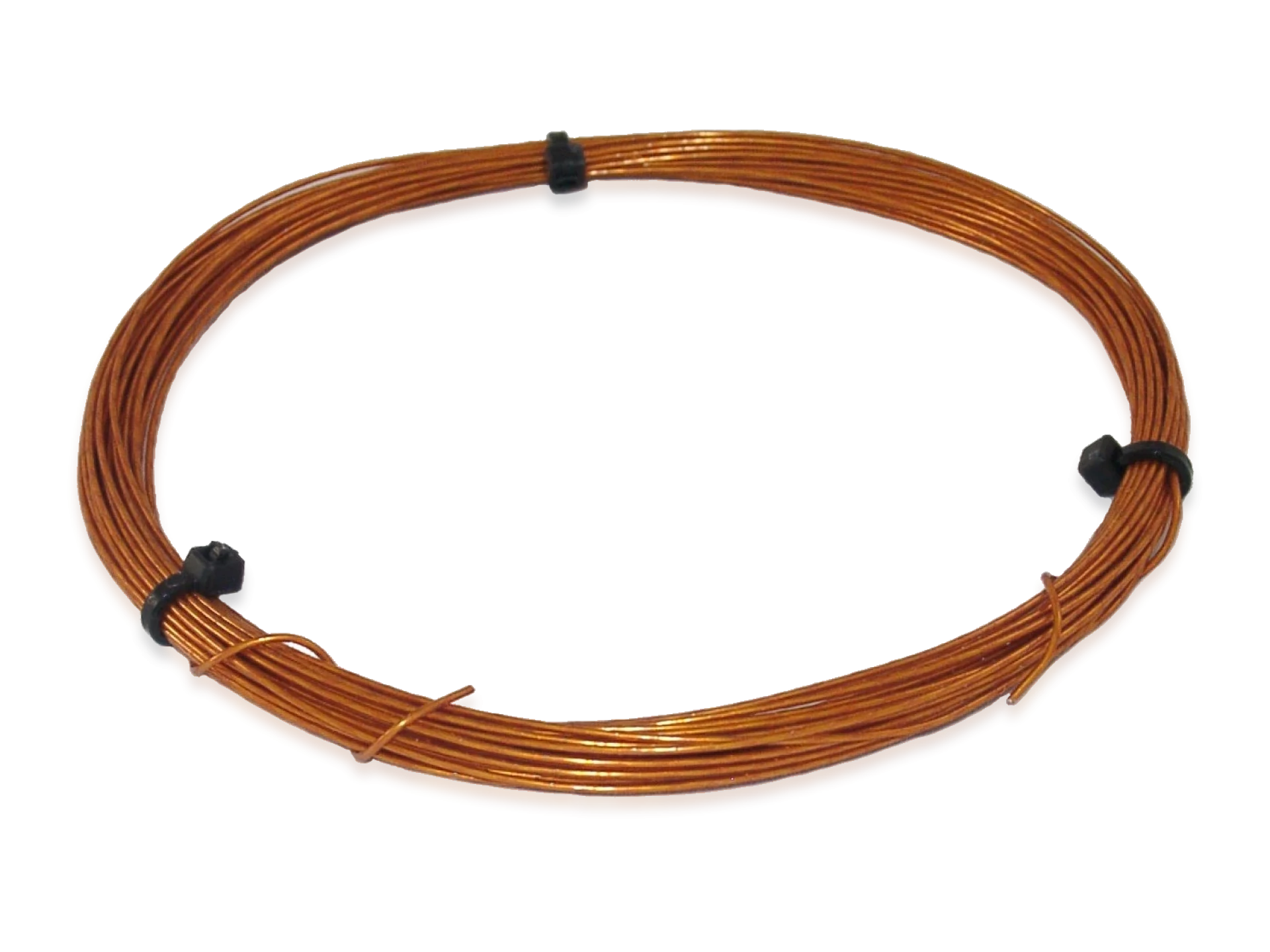

UHV Compatible Wire & Thermocouple

Polyimide covered wire and type K thermocouple.

From £42.00 excl. VAT and transportation cost$55.00 excl. VAT and transportation cost€55.00 excl. VAT and transportation cost

Overview

  • Polyimide insulated wire suitable for use in UHV
  • Bakeable to 200°C
  • Minimum temperature 4.2K
Order Code Description
Price
KTK Thermocouple Type K, polyimide-wrapped, 2 m47.0065.0060.00
KW3 0.3 mm OFHC copper wire, polyimide enamelled, 10 m42.0055.0055.00
KW3/100 0.3 mm OFHC copper wire, polyimide enamelled, 100 m227.00295.00275.00
KW5 0.5 mm OFHC copper wire, polyimide enamelled, 10 m50.0065.0060.00
KW5/100 0.5 mm OFHC copper wire, polyimide enamelled, 100 m250.00325.00300.00
KW6 0.6 mm OFHC copper wire, polyimide-wrapped, 10 m47.0065.0060.00
KW6/100 0.6 mm OFHC copper wire, polyimide-wrapped, 100 m232.00305.00280.00

Related Products

MLF18 18-way Electrical Feedthrough

MLF18 18-way Electrical Feedthrough

MLF18F 18-way feedthrough on a DN40 CF flange (70 mm OD). Individual glass compression seals and bakeable to 250°C.

AGP-1 to NGC3 Adapter

AGP-1 to NGC3 Adapter

Female DB9 to Female 8P8C RJ45 adapter for connecting an AGP-1 Active Pirani Gauge to an NGC3 Ion Gauge Controller with a patch lead.

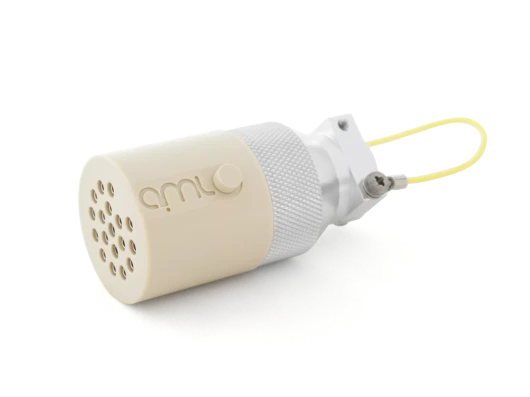

MLF18 Air-Side Connector
