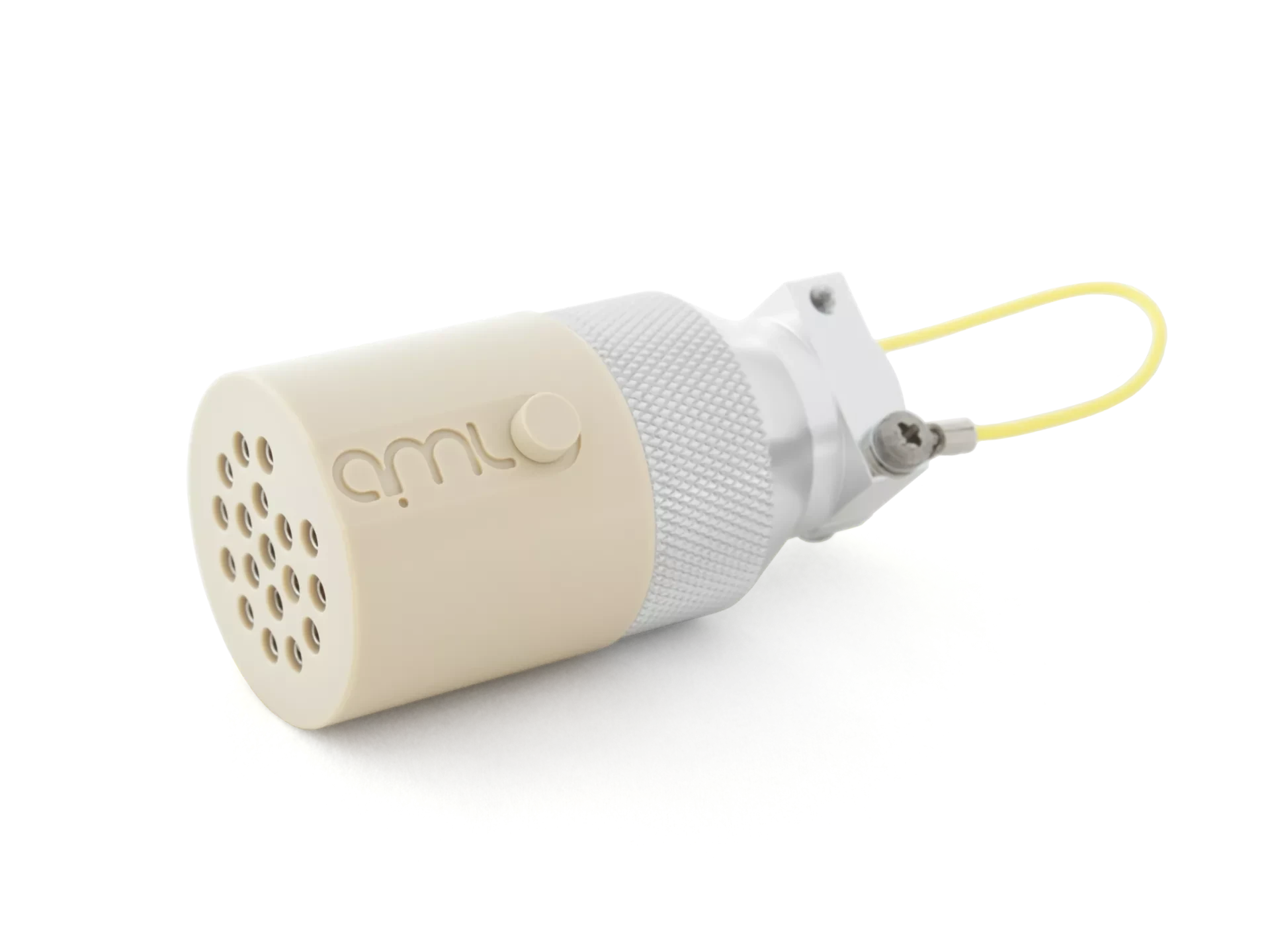

Air-Side Connector
MLF18AC
Bakeable connector which mates with the air-side of the MLF18F feedthrough.
Overview
- 18-Way air-side connector which mates with the MLF18F feedthrough
- Bakeable to 250ºC
- Gold plated pins connectors
| Order Code | Description | Price £ |
|---|---|---|
| MLF18AC | Air-side bakeable connector, 18 way | 136.00 |
| MLF18F | Feedthrough, 18 way, GMS, NW35CF | 213.00 |
| MLF18VCF | In-vacuum bakeable female connector, 18way. | 60.00 |
| MLF18VCM | In-vacuum bakeable male connector, 18 way. | 60.00 |
