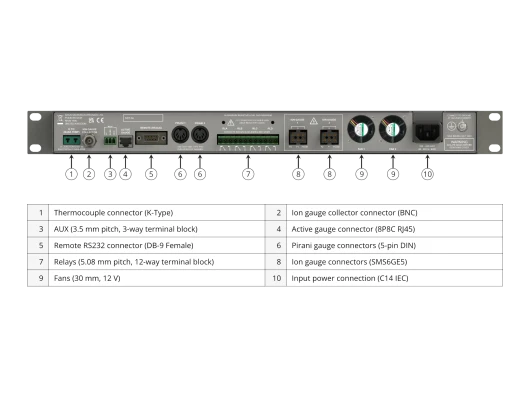

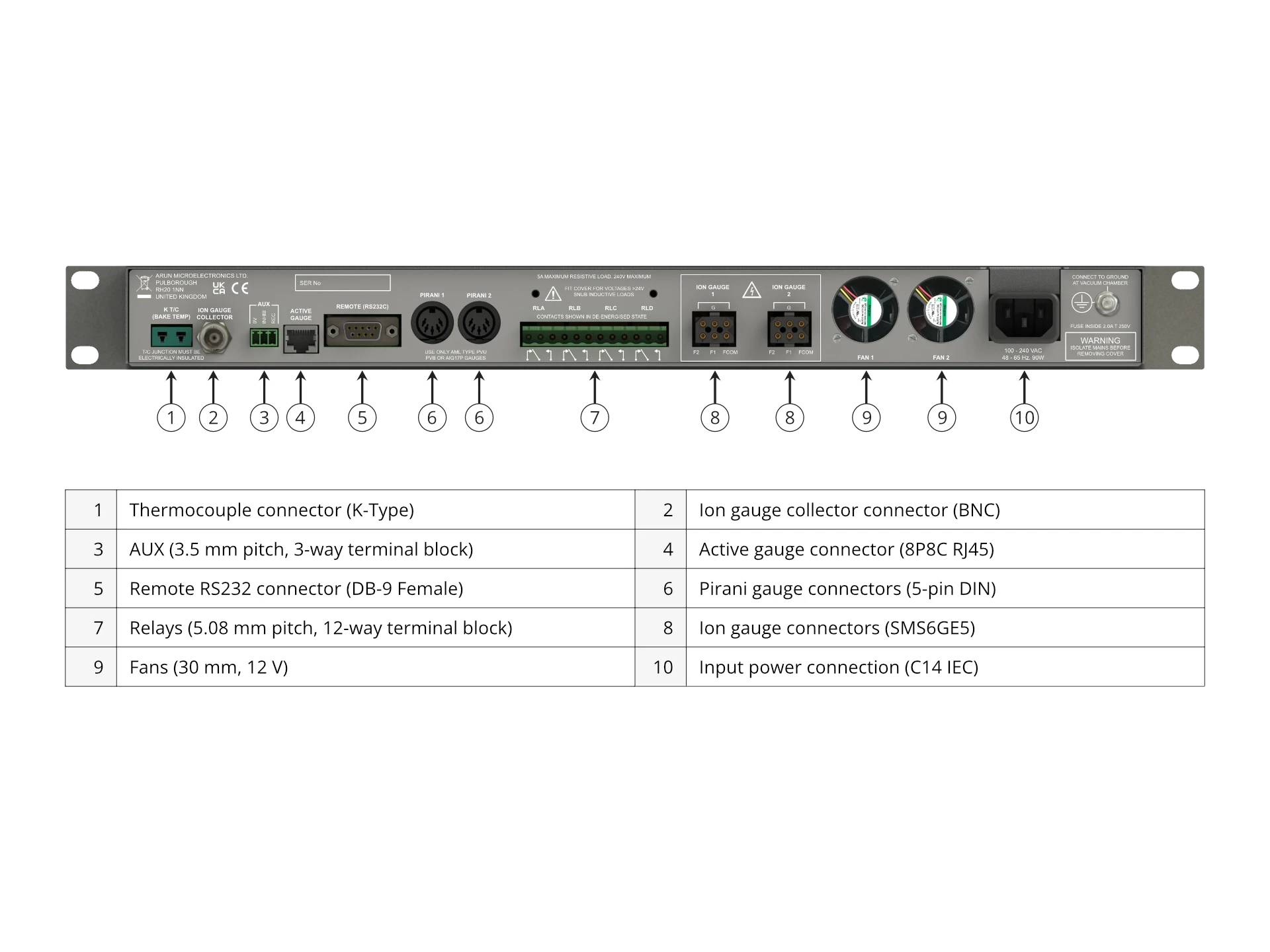

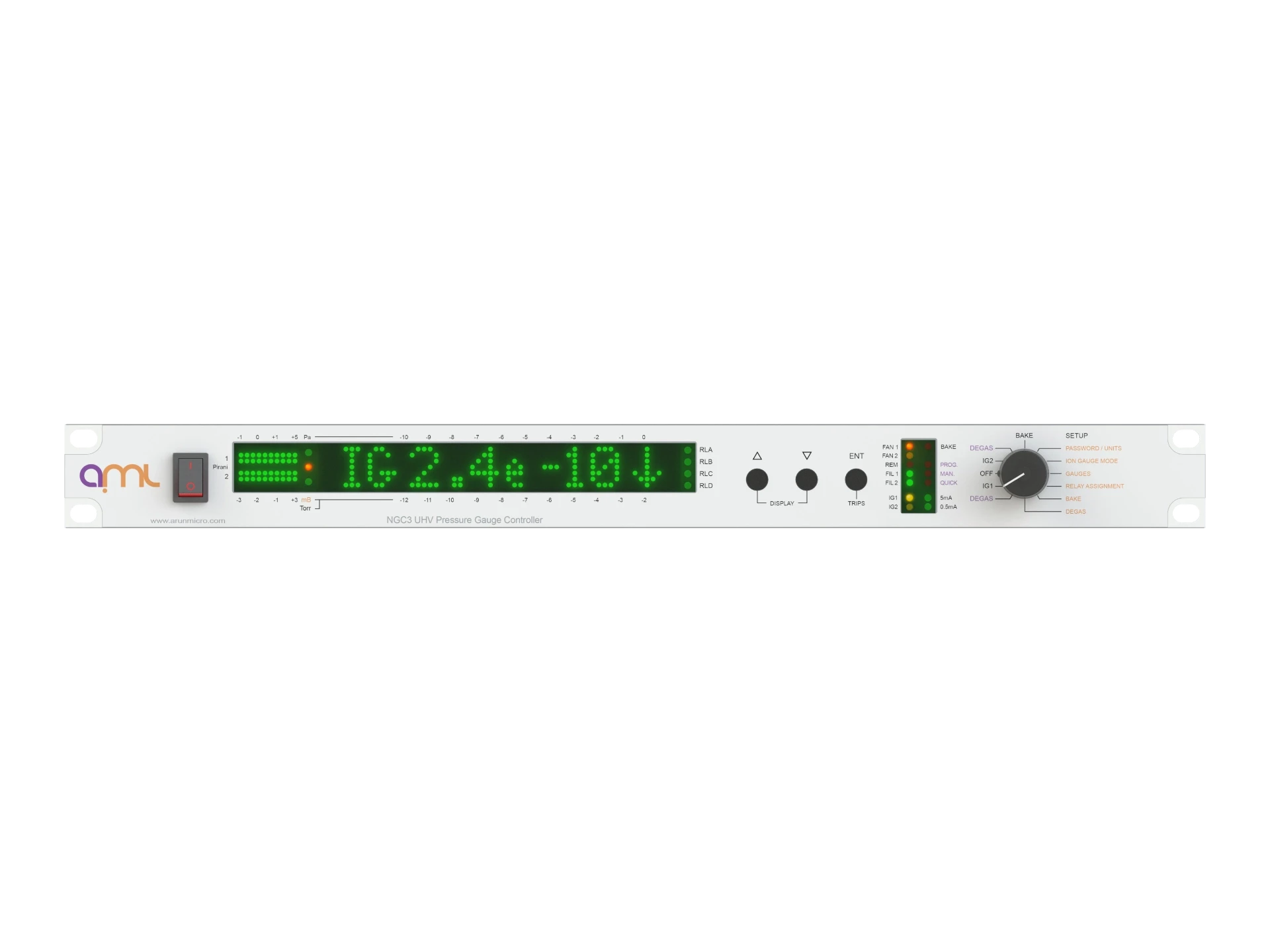

NGC3 Ion Gauge Controller with Active Gauge Input

Bayard-Alpert Ion Gauge Controller

£1050.00 excl. VAT and transportation cost

The NGC3 is a high-accuracy Ion Gauge controller that offers integrated pressure measurement and control of Ionisation and Active gauges. Built upon our NGC2D platform, the NGC3 supports four modes of Ion gauge operation; Auto and Interlock use Active or Pirani gauge pressure to automatically start/stop the Ion gauge, or prevent it from starting based on Active or Pirani gauge pressure. External inhibit allows start/stop of Ion gauge from an externally supplied logic signal. Use manual mode to force Ion gauge on and off as required.

New to the NGC3 is an industry standard RJ45 jack that allows connection of most low power Active gauges, enabling a continuous measurement range of 1200 mBar to 3 x 10-11 mBar when used with our APG Active Pirani gauge head or equivelant.

Overview

  • Continuous measurement range: 1200 mBar to 3 x 10-11 mBar
  • Controls 2 Ion gauges (sequentially), 1 Active gauge and 2 AML legacy Pirani gauges
  • Bright green LED display; measurements are easy to read. Assignable custom gauge labels
  • Multiple Ion gauge modes, including start/stop and interlock based on Active or Pirani gauge pressure
  • 1U high full-width for easy rack-mounting
  • Display pressure in mBar, Torr or Pascal, or Ion current in Amps
  • Password protection feature; prevent inadvertent changes to important setup
  • Automatic or manual emission current setting; sensitivity adjustable 1 mBar-1 to 140 mBar‑1
  • Manual and automatic electron-bombardment degas programs
  • 4 power relays for process control
  • System bake-out program with control of temperature, time and over-pressure limit. Integral K-thermocouple amplifier
  • RS-232C interface for data-logging and control, 1.0 volt/decade Recorder output
  • Operates from 100 V to 240 V, 48 to 65 Hz supply without adjustment
Order Code Description Price £
NGC3 Ion Gauge Controller1050.00
Ionization Gauge
Gauge type:

AML AIG1xG are recommended. Bayard-Alpert gauges from many other manufacturers are suitable without adjustment other than sensitivity.

Range:

From 1 x 10-3 to below 3 x 10-11 mBar with a UHV gaugehead with tungsten filaments. The lower limit is dependent on gaugehead, cable construction, cable length and conditions of use. The upper limit is determined by the  acceptable life of the filament and my be extended by the use of thoria or yttria-coated iridium filaments.

Accuracy and repeatability:

Determined principally by the gauge-head: controller errors are much smaller. Emission at 0.5 mA is recommended. Electrometer logarithmic conformance at 21°C, <1% at 1 mA to 10 pA, <10% at 10 pA to 2 pA.

Gauge supplies:

Grid: +200 V in emission, +500 V at ≤60 mA in degas.
Filament: +50 V bias, ≤12 V at ≤4.2 A (Tungsten), ≤2.6 A (Iridium) with filament power limited to 30 W maximum.

Pirani Gauge
Gauge type:

AML types PVU and PVB.
A constant-voltage bridge circuit reduces contamination at high pressures. AML Pirani gaugeheads may be exchanged or extension leads may be connected without adjustments being necessary.

Active Gauge
Gauge type:

Self-powered or Active Gauge with +10 V full-scale output. Format selectable between linear (1, 10, 100, 1000 mBar or Torr full scale) or log (1 V/decade, 0.5 V at 1 x 10-6 mBar). The instrument provides a regulated +24 Vdc supply, 1 W maximum, protected by a 50 mA self-resetting fuse to power a connected Active gauge.

Process trips
Relays:

4 x single-pole, change-over. 5 A at 240 V maximum.

Assignment:

Independently assignable to any gauge.

Bake-out
Thermocouple type:

Mineral-insulated K-type with miniature flat-pin connector.

Programme:

Settable bake temperature (50°C to 250°C), bake time (1 hour to 90 hours) and overpressure limit.

Communications
Interface:

RS232C

Settings:

1200, 2400, 4800 or 9600 (Default) baud, 8 data bits, 1 stop bit, no parity, no handshaking.

General Specifications
Pressure display:

Scientific notation (1 or 2 decimal place resolution) or bar-graph displays in mBar, Torr or Pascal.

Current display:

Whole values in pA, nA, μA and mA.

Operating temperature:

5°C to 35°C for specified performance. Incoming air temperature is measured and displayed. Operation is inhibited at >40°C.

Supply voltage:

100 V to 240 V nominal at 48 to 65 Hz, without adjustment.

Power consumption:

<20 W idling, <75 W in emission.

Dimensions:

Width: 19″ full-width rack (482.6 mm), Height: 1U (44.45 mm), Depth 270 mm.

Weight:

2.7 kg

Bundles

NGC3 Bundle 1
  +    +    +    +

Ion Gauge Controller £1050.00 £998.00

UHV BA Ion Gauge, Tungsten Filaments £285.00 £271.00

Active Pirani Gauge DN16 KF £340.00 £323.00

Ion Gauge Cable, 3 meters, Bakeable £157.00 £149.00

XAD1 Adapter with 3 m shielded patch lead £16.00 £15.00

Total bundle price: £1848.00 £1756.00 (saving £92.00)

Related Products

Ultra High Vacuum Ion Gauges

Ultra High Vacuum Ion Gauges

Nude Bayard-Alpert ion gauges covering the vacuum range 1 x 10-3 to 3 x 10-11 mBar. They are intended for electron-bombardment degas. Available with a range of filament materials.

Ion Gauge Cables

Ion Gauge Cables

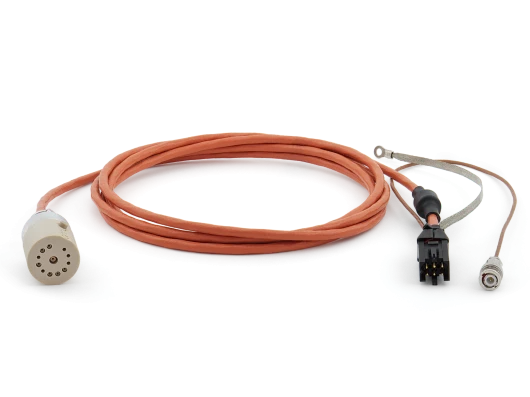

AIGL 250°C Bakeable cables for use with AIG ion gauges.
