MEMS Active Pirani and Piezo Gauge

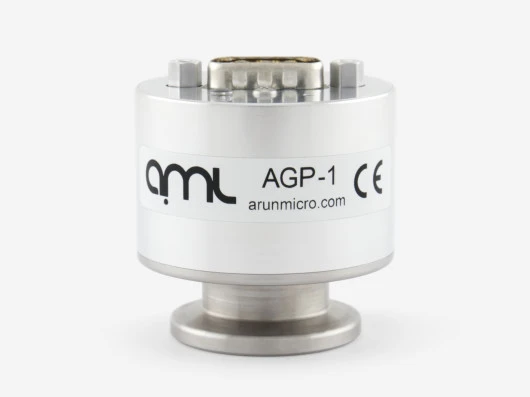

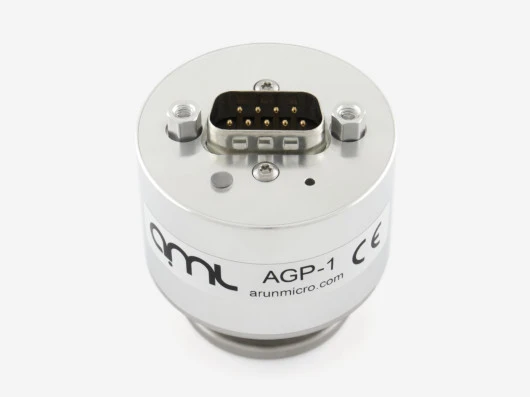

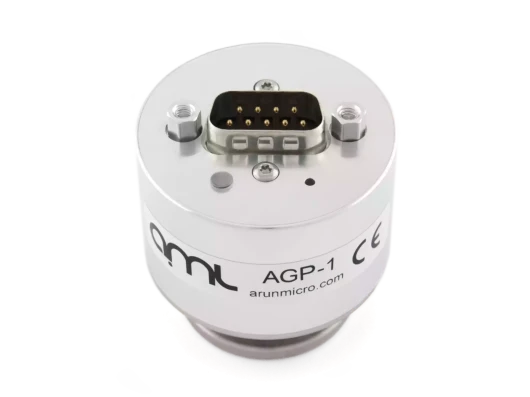

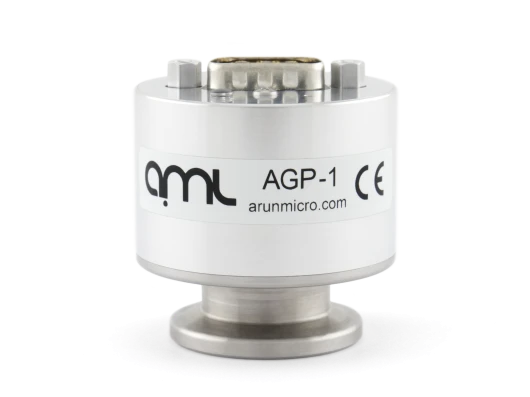

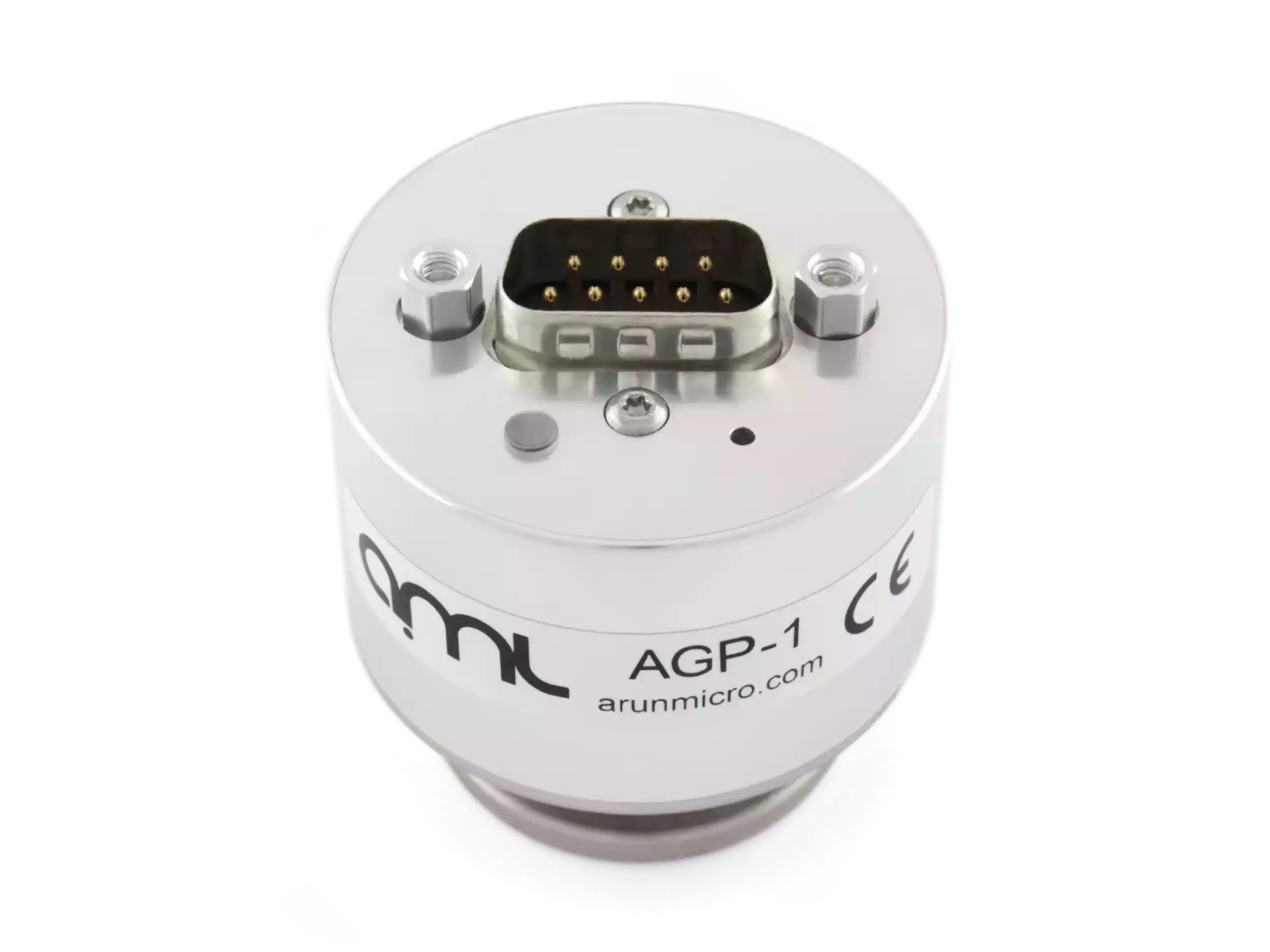

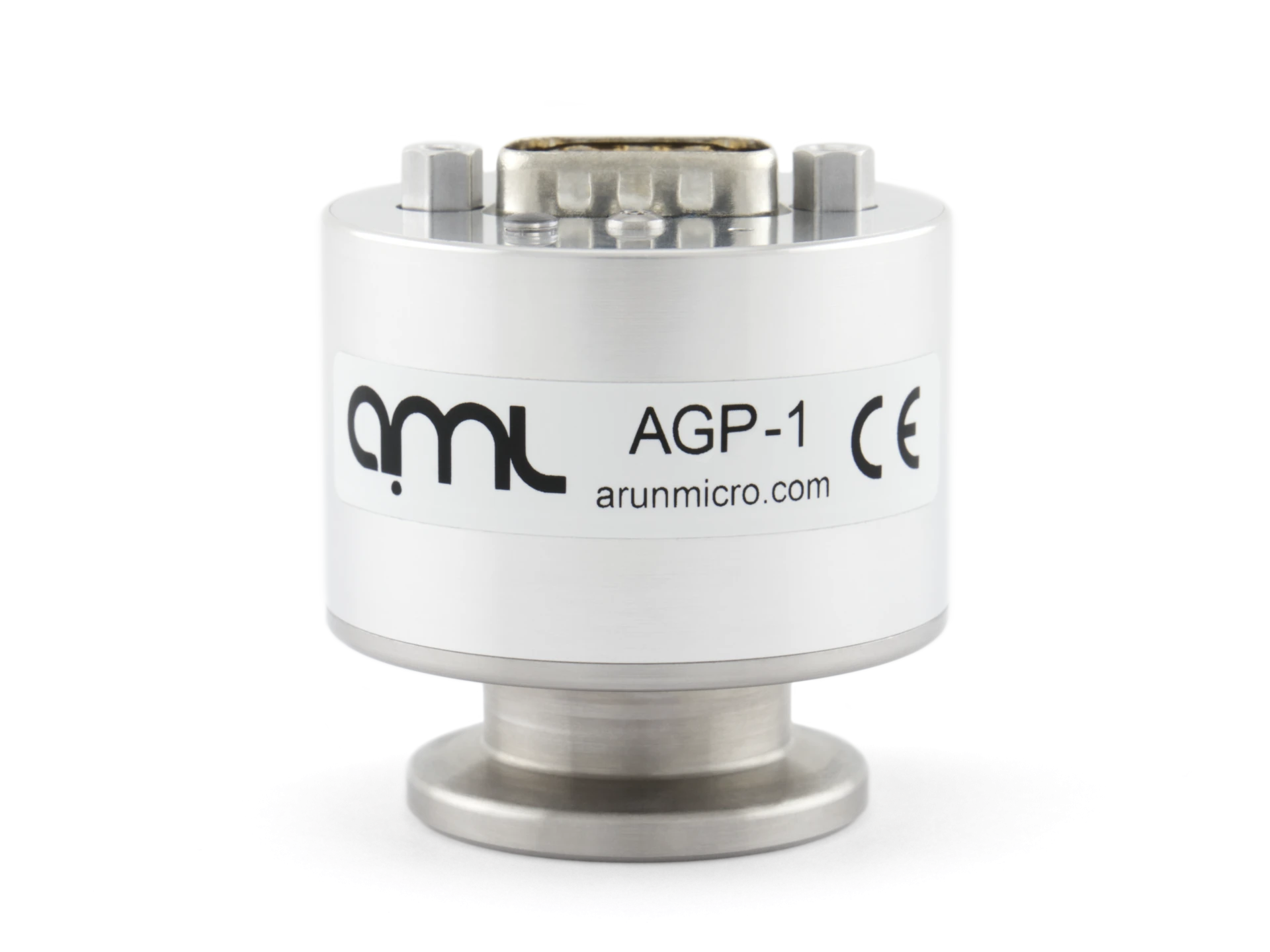

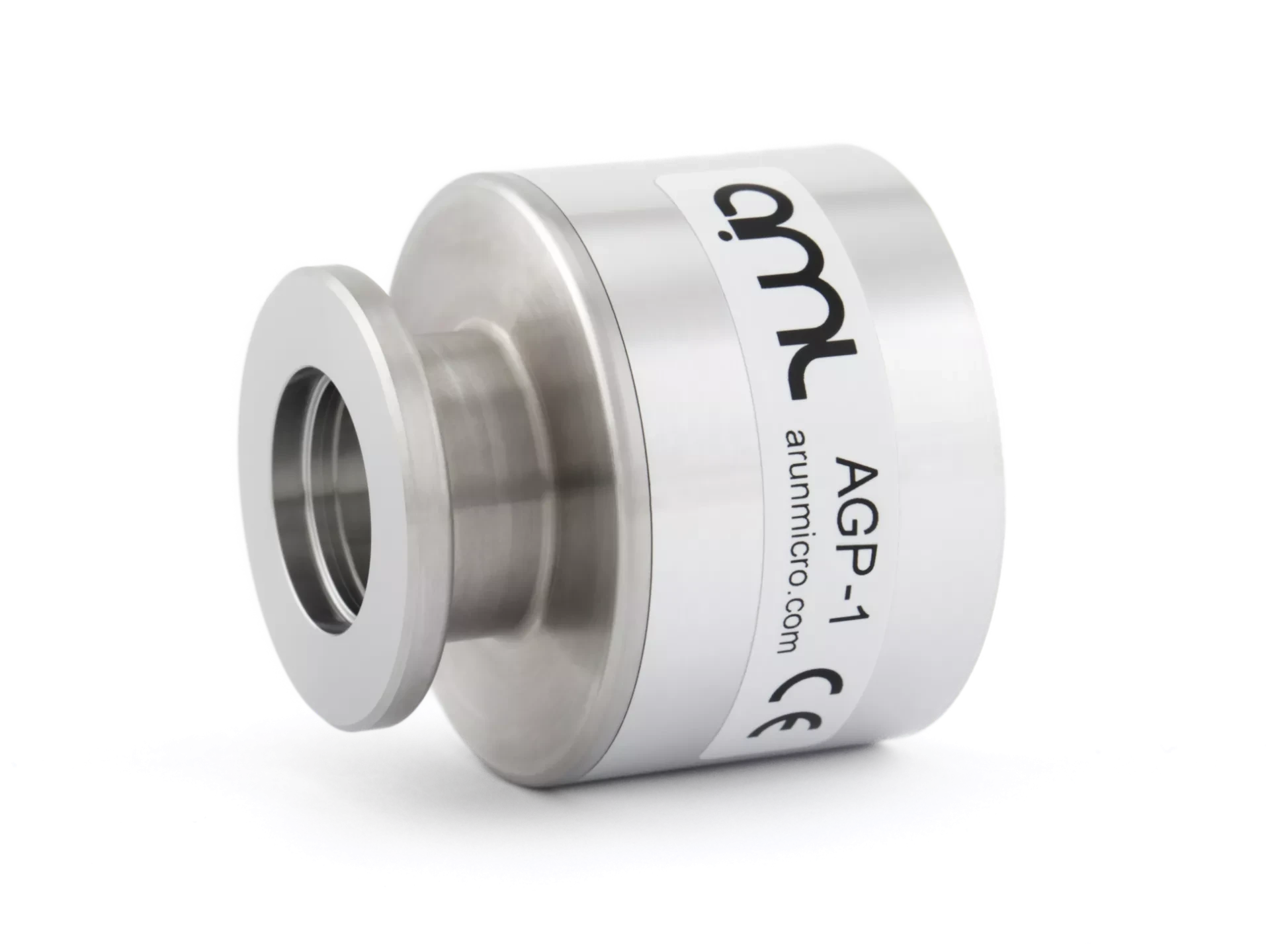

AGP Active Pirani Gaugehead

£340.00 excl. VAT and transportation cost

The AGP Pirani gauge incorporates cutting edge MEMS sensor technology with precision digital signal processing and advanced measurement algorithms.

Overview

  • Measurement range of 1 x 10-6 to 1200 mBar (7.5 x 10-7 to 900 Torr)
  • Ultra-wide range high performance MEMS sensors
  • Advanced innovative digital signal processing
  • Precision gas-independent sensor from 5 to 1200 mBar
  • Mountable in any orientation without impact on performance
  • Programmable voltage output signal
  • Digital RS-232 interface
  • One solid-state setpoint for process control
  • High overpressure tolerance of 10 bar (145 psi)
  • Robust, compact stainless steel flange and enclosure design
Order Code Description Price £
AGP-1 Active Pirani Gauge DN16 KF340.00

Related Products

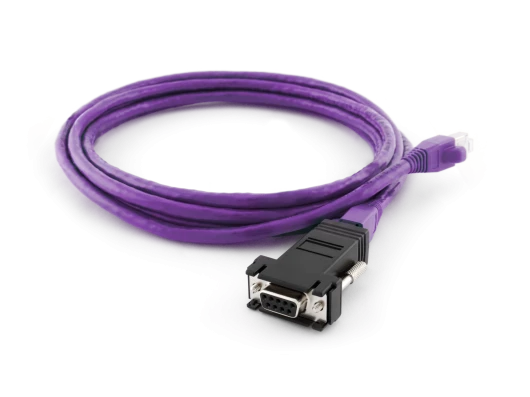

AGP-1 to NGC3 Adapter

AGP-1 to NGC3 Adapter

Female DB9 to Female 8P8C RJ45 adapter for connecting an AGP-1 Active Pirani Gauge to an NGC3 Ion Gauge Controller with a patch lead.

NGC3 Ion Gauge Controller with Active Gauge Input

NGC3 Ion Gauge Controller with Active Gauge Input

Built upon our NGC2D platform, the NGC3 additionally includes an Active Gauge input and supports fully automatic gauge operation to continuously display pressure across the full range of 1200 mBar to 3 x 10-11 mBar.

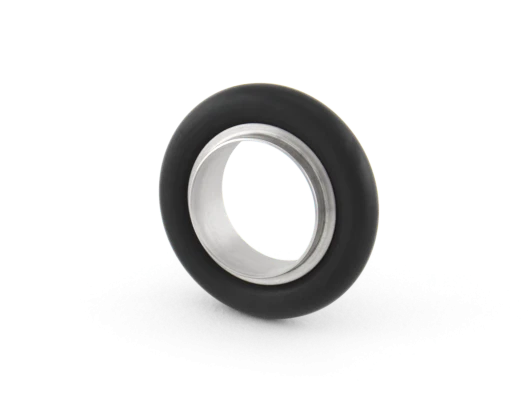

Centering Ring

Centering Ring

KF16 centering ring used for mating KF flanges and include both the centering ring and O-ring. The centering ring contains a rubber elastomeric fluorocarbon o-ring.

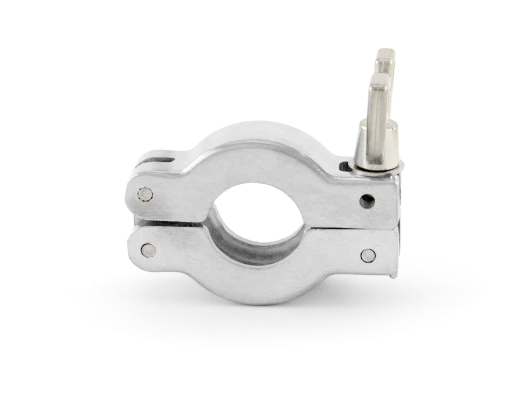

Swing Clamp
