Copper Gaskets

ZGSK

From £2.00 excl. VAT and transportation cost$5.00 excl. VAT and transportation cost€5.00 excl. VAT and transportation cost

Our oxygen-free high thermal conductivity (OFHC) Copper Gaskets for CF Flanges are electrolytically refined in a carefully regulated, oxygen-free environment. They are impermeable to gases and able to withstand moderatly high temperatures. 1 OFHC copper gasket is included per pack.

Overview

  • 1/4 hard, high purity, oxygen-free (OFHC) copper seal
  • Chemically cleaned and processed to minimize scratches and burrs
  • CF16 and CF40 flange size gaskets are available
Order Code Description
Price
ZGSK16 CF16 Copper Gasket2.005.005.00
ZGSK40 CF40 Copper Gasket3.005.005.00

Related Products

Ultra High Vacuum Ion Gauges

Ultra High Vacuum Ion Gauges

Nude Bayard-Alpert ion gauges covering the vacuum range 1 x 10-3 to 3 x 10-11 mBar. They are intended for electron-bombardment degas. Available with a range of filament materials.

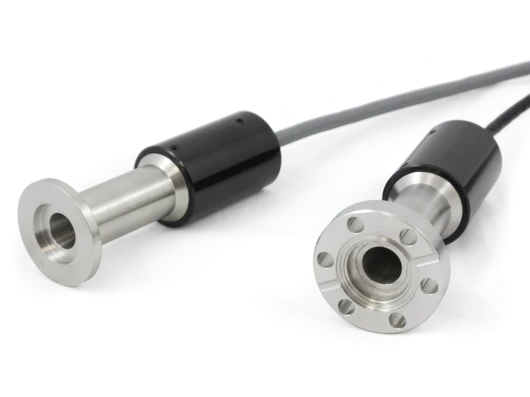

Pirani Gauge Heads and Leads
