In-Vacuum Cables
In-Vacuum Cables

UHV compatible cables for VSM19-X and VSM30-X stages

From £390.00 excl. VAT and transportation cost

UHV compatible cables for connecting VSM19-X and VSM30-X stages

Ask a question
Share
Made in the UK
UK-based support
Category: Accessories
Datasheet
Overview
In-vacuum cables to be used with the VSM19-X and VSM30-X stages. A range of connector options are available to suit the majority of standard configurations when connecting to the SMD4 stepper motor drive.
  • 1.5 metre cables for use with AML VSM19-X and VSM30-X stages
  • Available with a range of terminations to suit your configuration.
  • Polyimide insulated wire suitable for use in UHV
  • Bakeable to 200°C
Order codeDescriptionPrice excl. VAT and transportation cost
CABV-D9D15In-vacuum cable, 1.5 meters long. D9F to D15FContact us
CABV-D15D15In-vacuum cable, 1.5 meters long. D15F to D15F£390.00
CABV-MLFD15In-vacuum cable, 1.5 meters long. MLF18VCF to D15FContact us
CABV-MLF3D15In-vacuum cable, 1.5 meters long. MLF18VCF to 3x D15FContact us

SMD4 Configuration Example - D15D15:

Related products

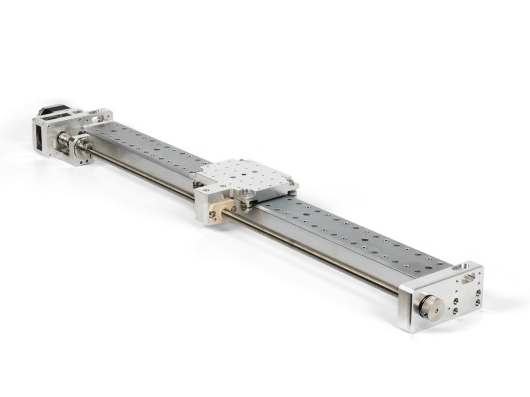

VSM30-X
VSM30-X

Long travel linear translation stage for UHV applications. Travel ranges from 500 to 1000 mm and can support loads up to 40 kg.
SMD4 Stepper Motor Drive
SMD4 Stepper Motor Drive

Stepper motor drive optimised for use with AML UHV-compatible motors. Features advanced connectivity with USB, Ethernet and RS232/485 interfaces. Optional encoder module for incremental and absolute encoders

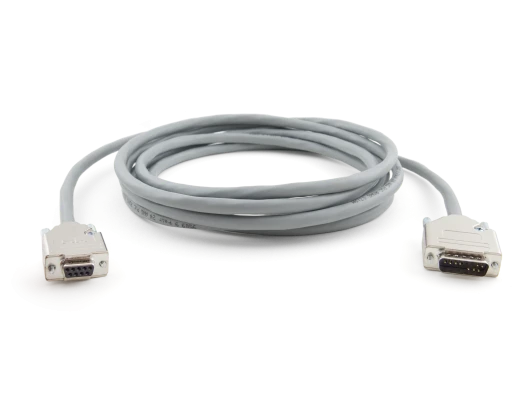

SMD4 Cables
SMD4 Cables

Motor and encoder cables to connect the SMD4 stepper motor drive.

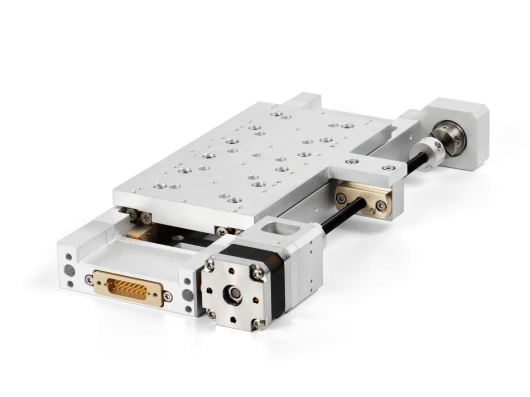

VSM19-X
