UHV Compatible Limit Switch

VLS1

£250.00 excl. VAT and transportation cost$350.00 excl. VAT and transportation cost€310.00 excl. VAT and transportation cost

The VLS1 limit switch is used for repeatable limit detection for in-vacuum motion systems.

The switch is normally-closed (NC) and can be connected directly to an SMD3 stepper motor drive.

Overview

  • UHV-compatible material construction
  • Suitable for use to 1.3 x 10-10 mBar (1 x 10-10 Torr)
  • High temperature - bakeable to 250°C
  • Radiation resistant
  • Normally-closed (NC)
  • 22 AWG polyimide insulated wires

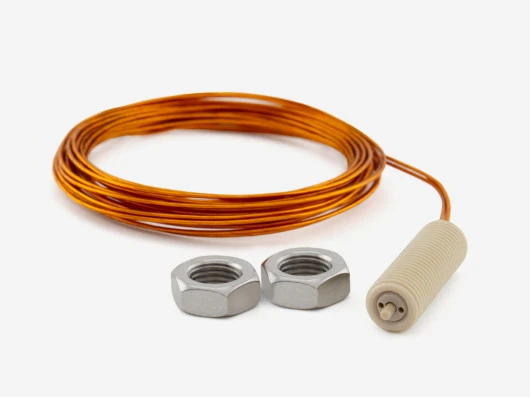

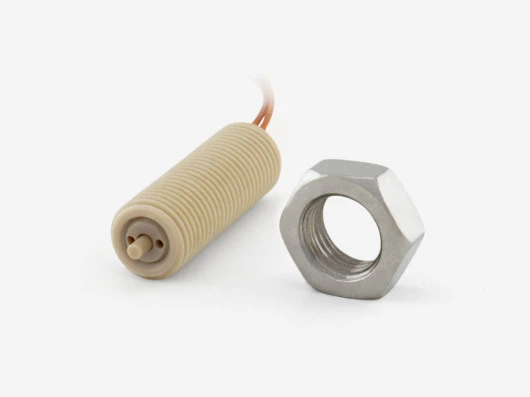

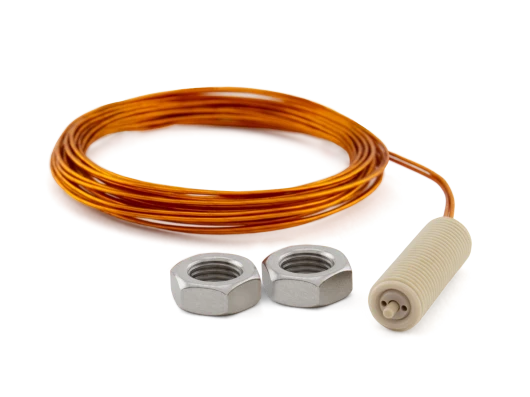

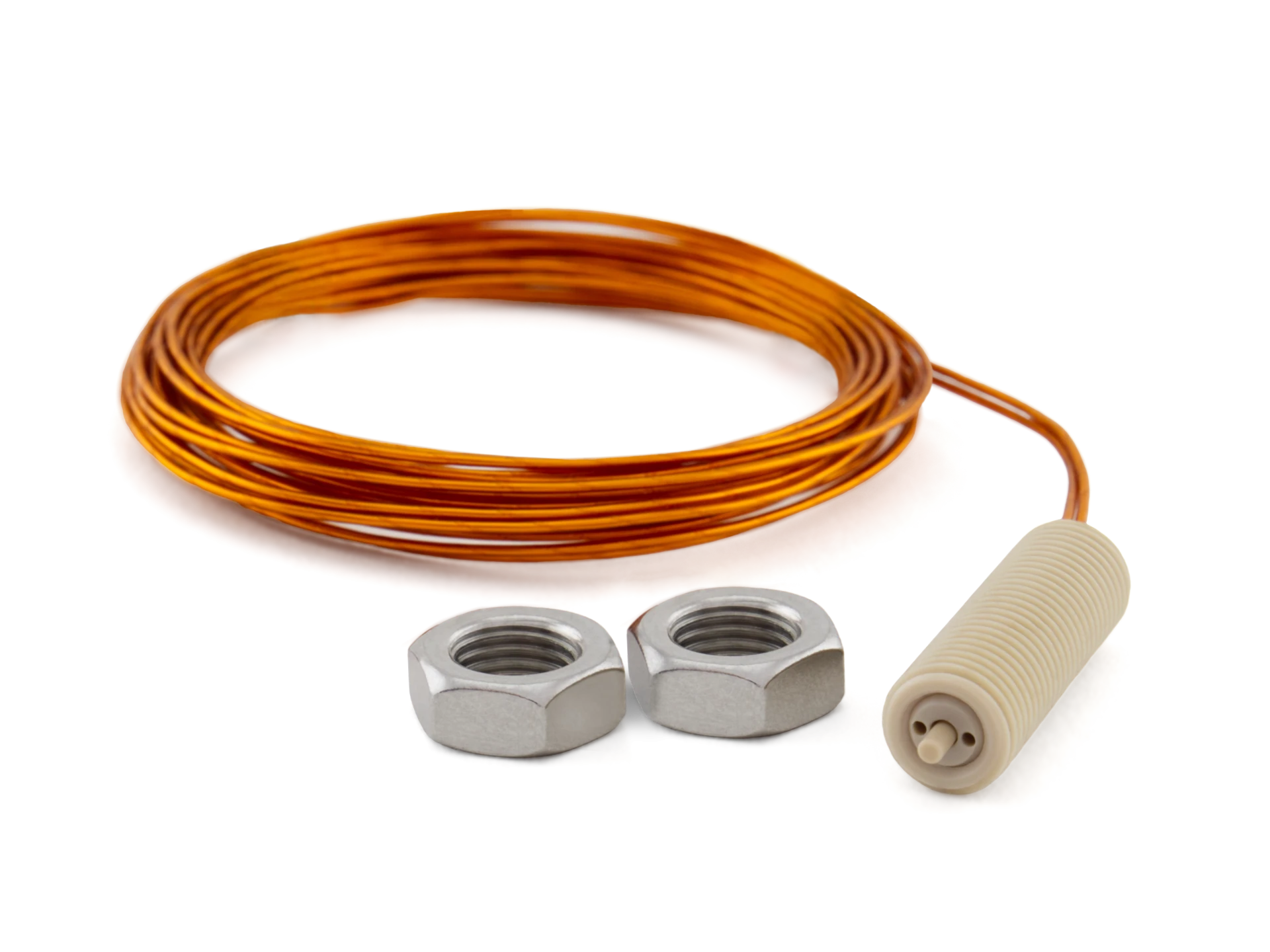

  • 3/8-24 UNF external thread with 2 matching nuts
Order Code Description
Price
VLS1 UHV Compatible Limit Switch250.00350.00310.00
