SMD4 Cables
SMD4 Connecting Cables
From
£247.00 excl. VAT and transportation cost
Motor and encoder cables to connect the SMD4 stepper motor drive.
Overview
Motor and encoder cables to connect the SMD4 stepper motor drive.
- 3 metre cables for use with AML SMD4 stepper motor drives.
- Three motor cables with different terminations to suit your configuration.
- Two encoder cables to support incremental and absolute encoder types.
Product Order Codes
| Order code | Description | Price excl. VAT and transportation cost |
|---|---|---|
| CAB-D15D9 | SMD4 Cable, 3 metres long. D15M to D9F | £247.00 |
| CAB-D15D15 | SMD4 Cable, 3 metres long. D15M to D15F | £250.00 |

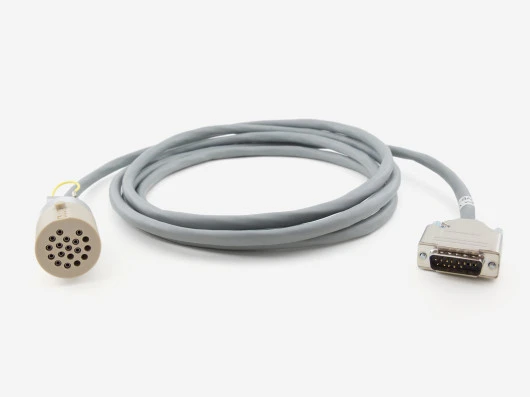

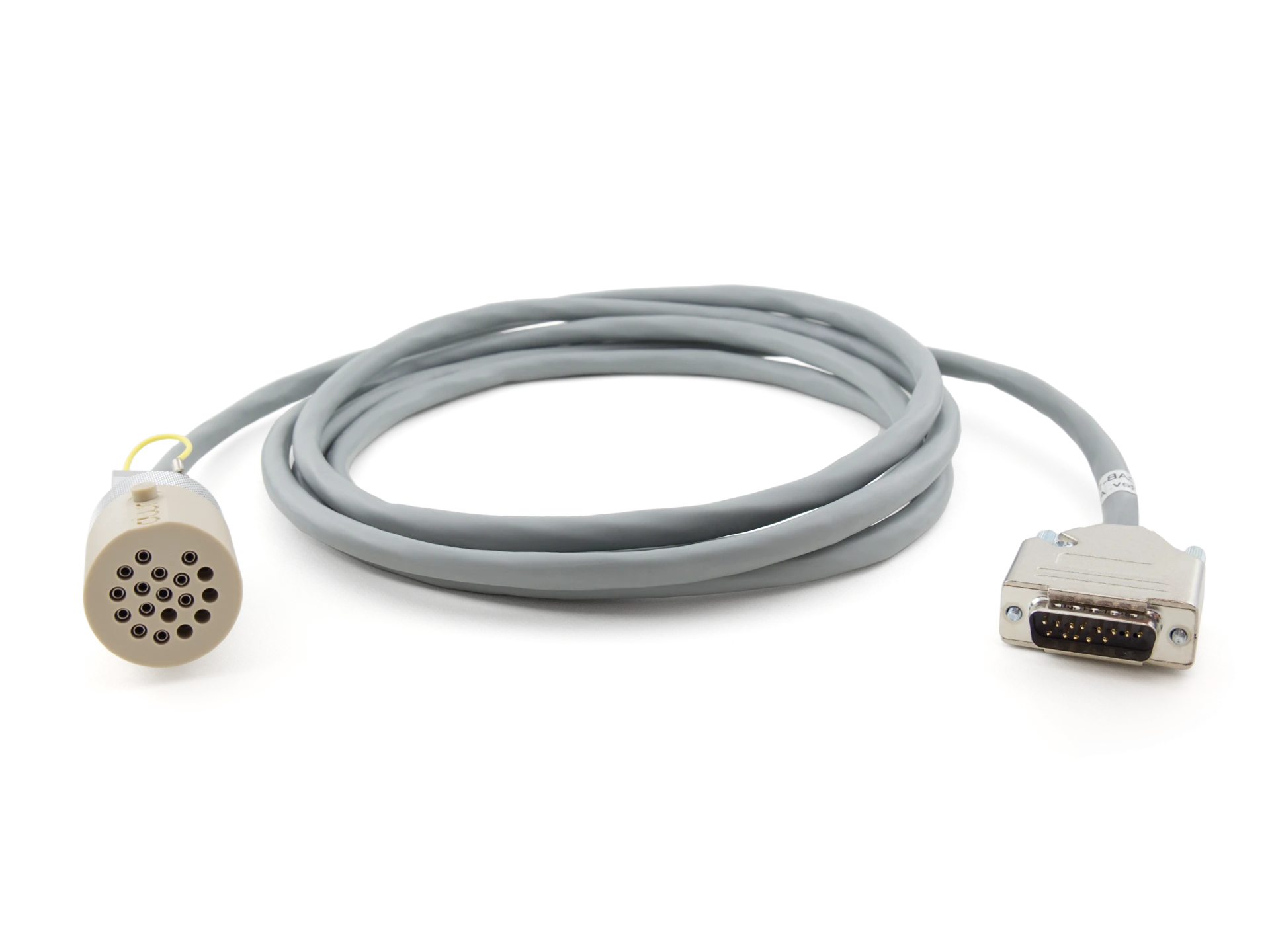

| CAB-D15MLF | SMD4 Cable, 3 metres long. D15M to MLF18AC | £250.00 |

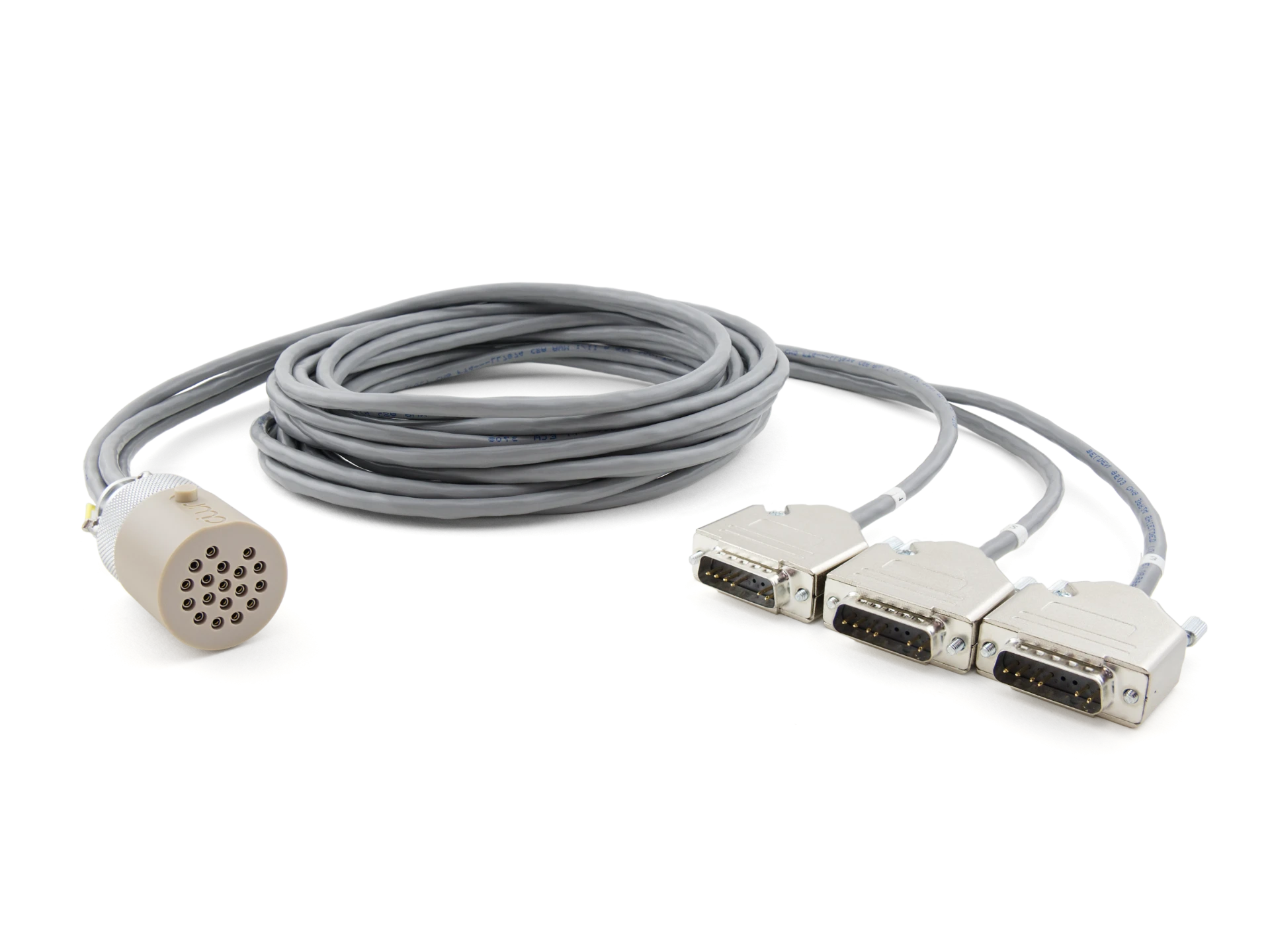

| CAB-3D15MLF | SMD4 Cable, 3 metres long. 3x D15M to MLF18AC | £341.00 |
| CAB-ENCAS | SMD4 Encoder Cable, Incremental, 3 metres. D26M to D15F | £247.00 |
| CAB-D26D9 | SMD4 Encoder Cable, Absolute, 3 metres. D26M to D9F | £247.00 |
Documentation and Downloads
Documentation
Example Configurations
CAB-D15D15 Example:
