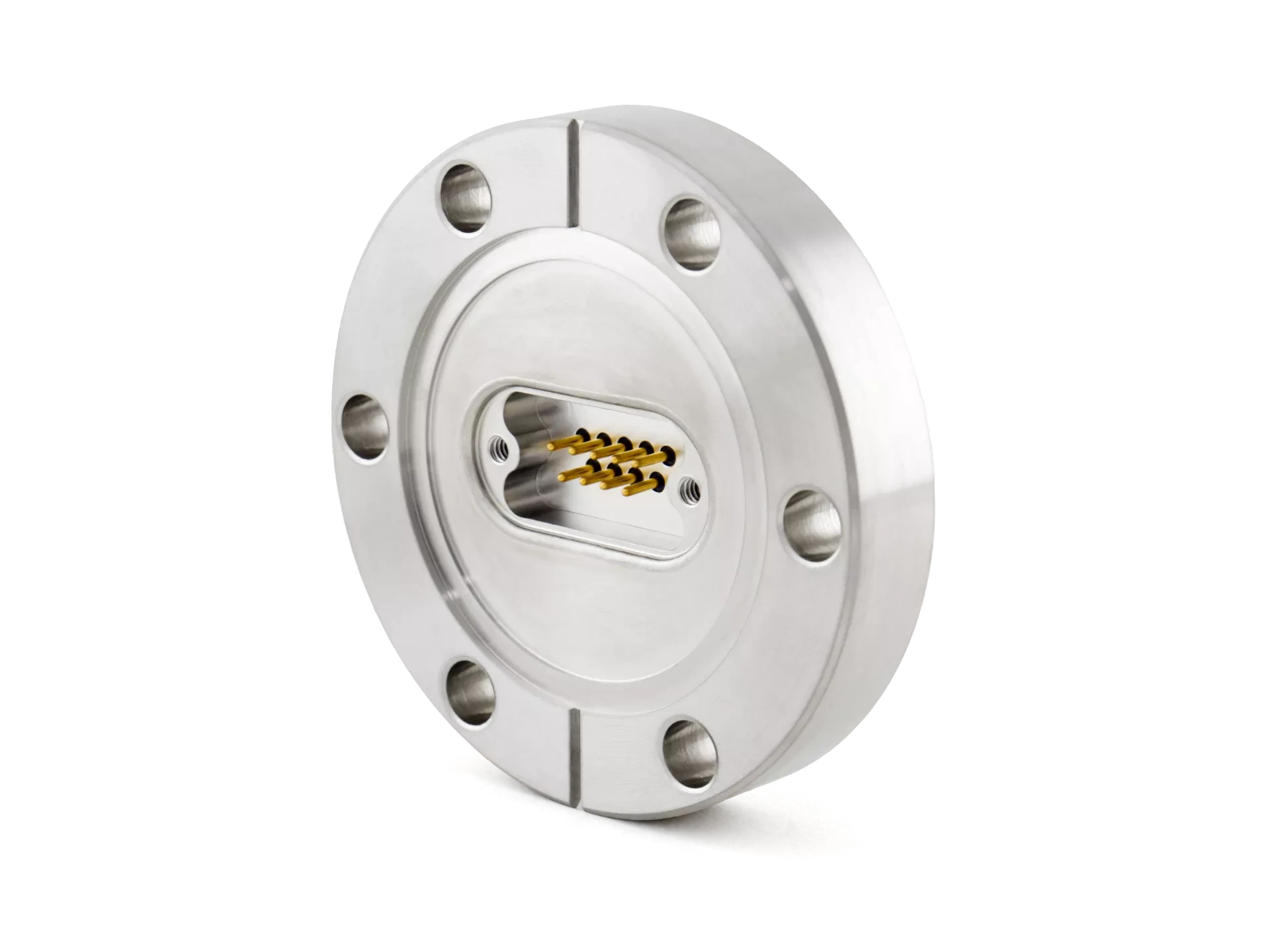

D-sub Electrical Feedthroughs

VFxxD-xxCF

From £314.00 excl. VAT and transportation cost$410.00 excl. VAT and transportation cost€380.00 excl. VAT and transportation cost

D-sub electrical feedthroughs. 9 or 15-way versions available. Features individual glass-ceramic compression seals and bakeable to 250°C. UHV compatible D-sub connectors, pins and tooling are available.

Overview

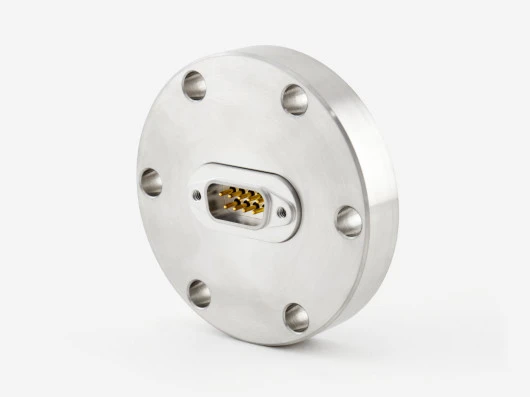

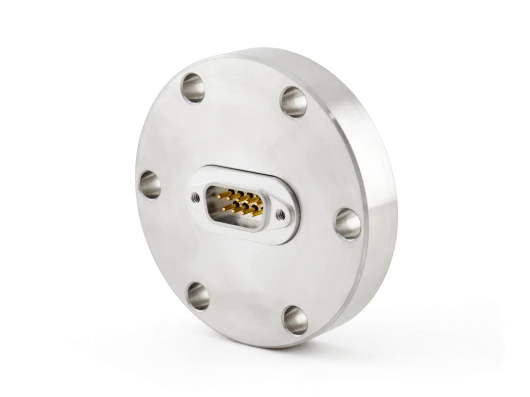

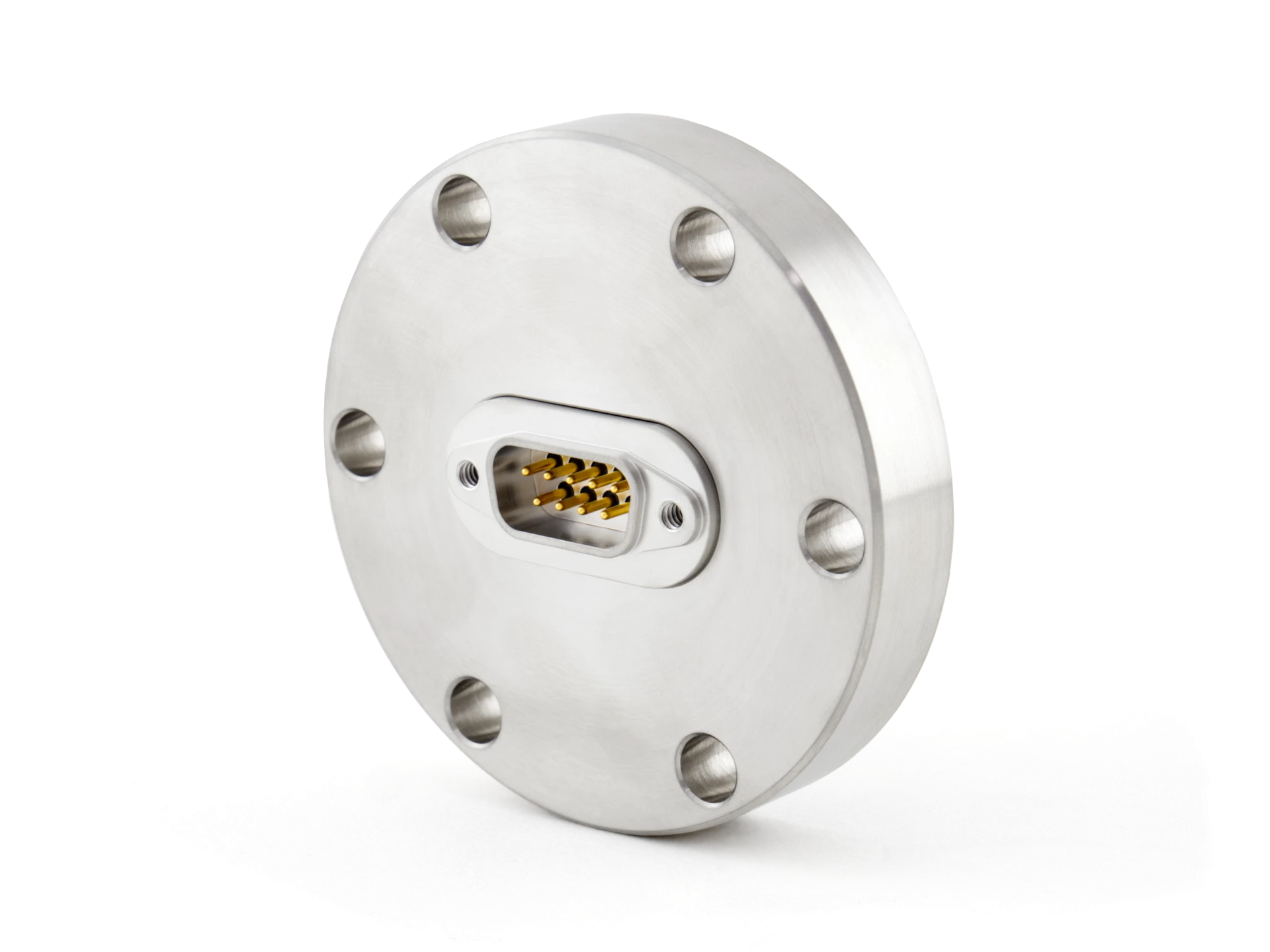

  • 9-way feedthrough on a DN40CF flange (70 mm OD)

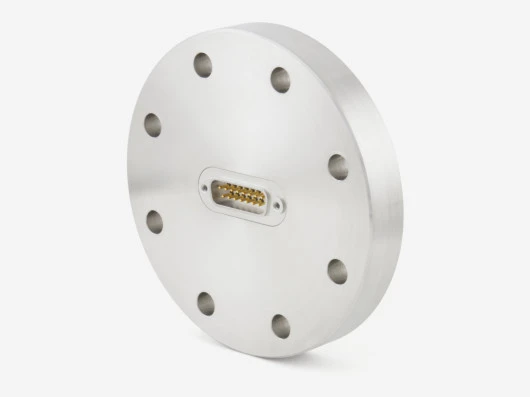

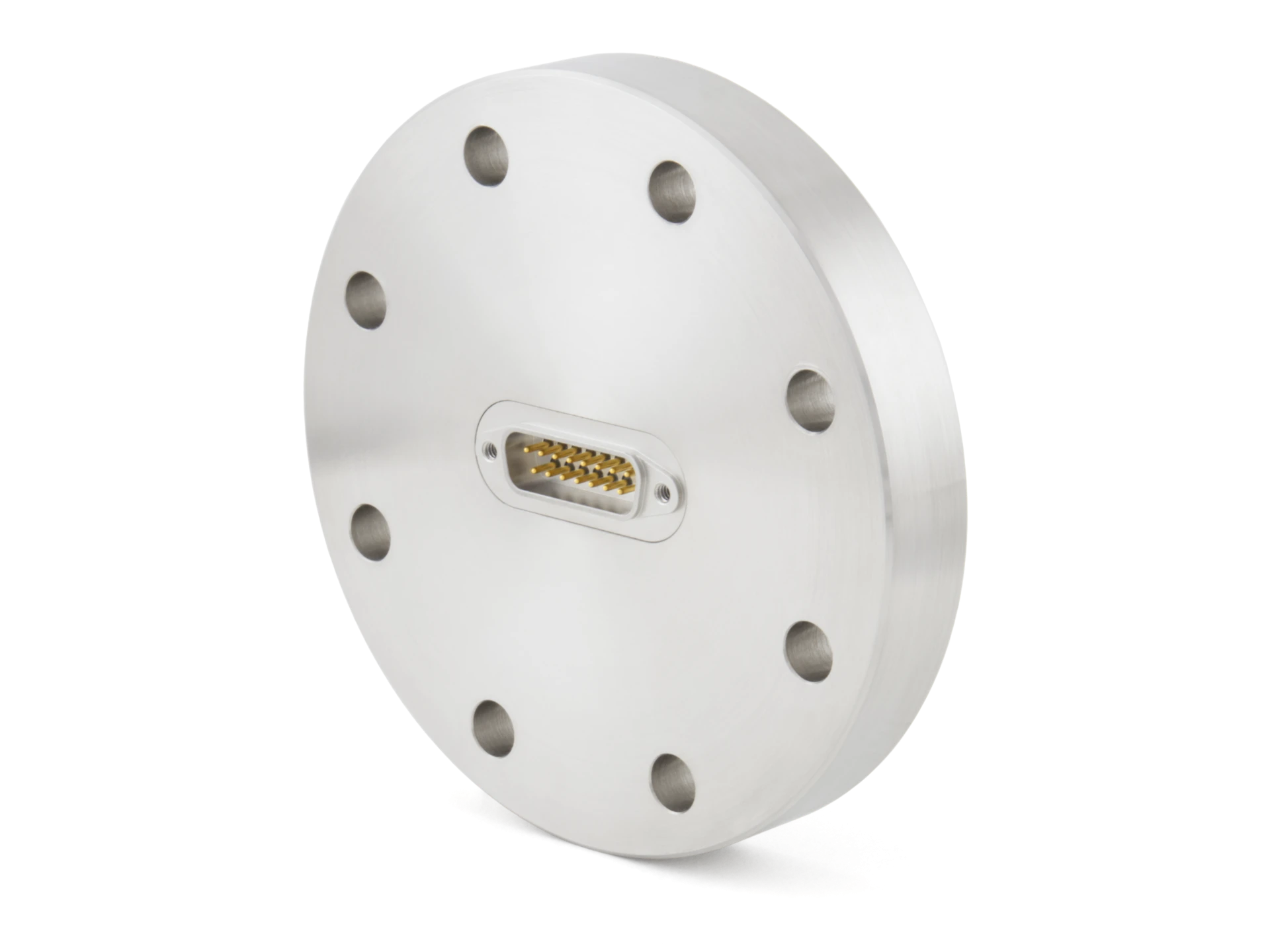

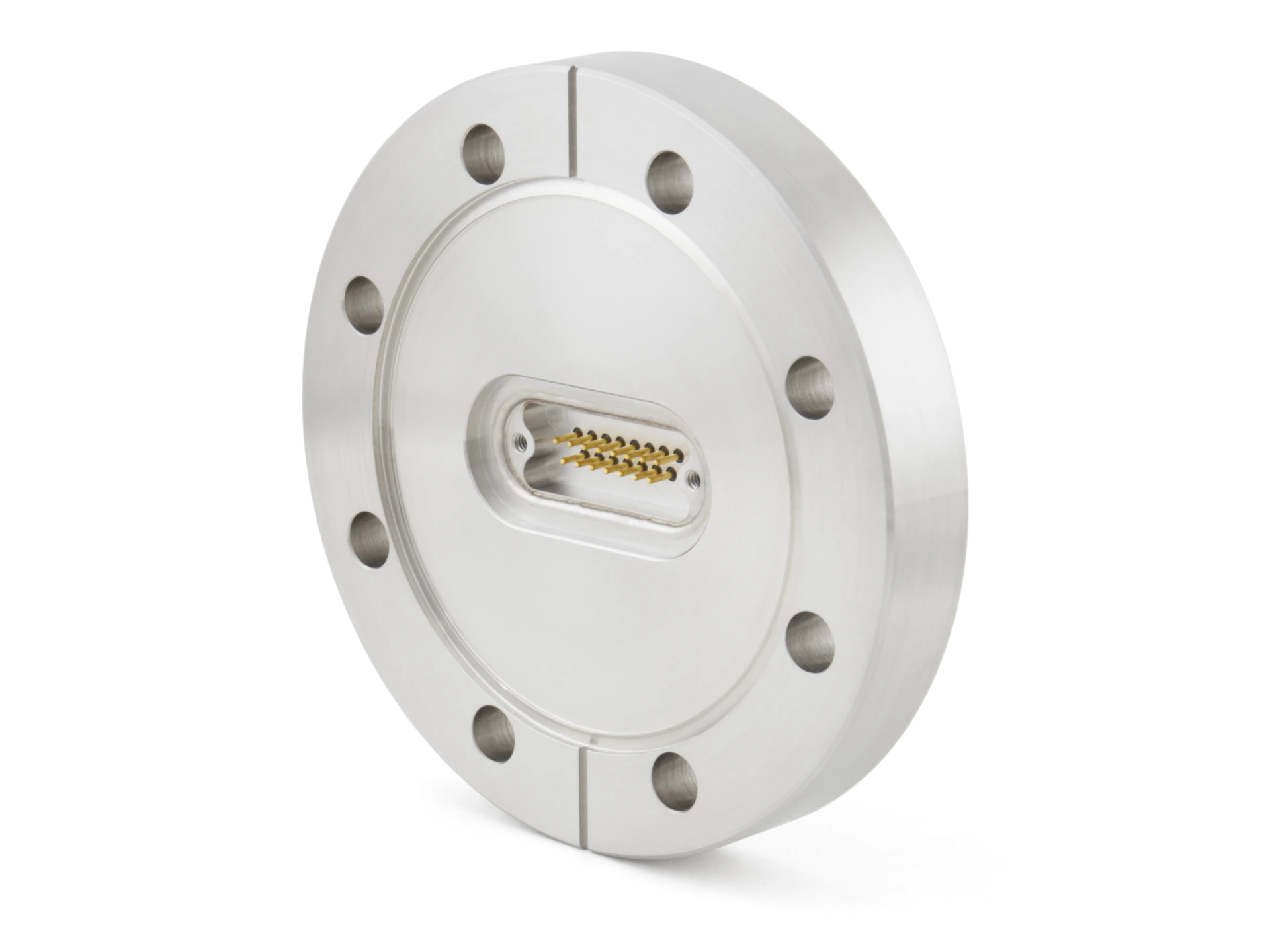

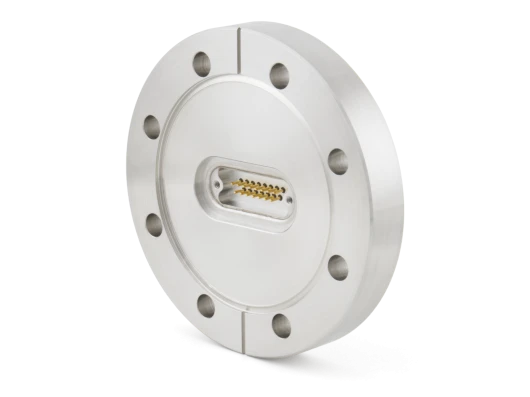

  • 15-way feedthrough on a DN63CF flange (114 mm OD)
  • Suitable for use to 1.3 x 10-10 mBar (1 x 10-10 Torr)
  • Male to male connection
  • Bakeable to 250°C
  • Gold plated pins
  • Rating. 500V, 5 A per pin (max 20% of pins)
Order Code Description
Price
VF9D-40CF D-sub 9-way Electrical Feedthrough (DN40CF Flange)314.00410.00380.00
VF15D-63CF D-sub 15-way Electrical Feedthrough (DN63CF Flange)374.00490.00455.00
