SMD3 Connecting Cable

MLF18SMD3

£215.00 excl. VAT and transportation cost

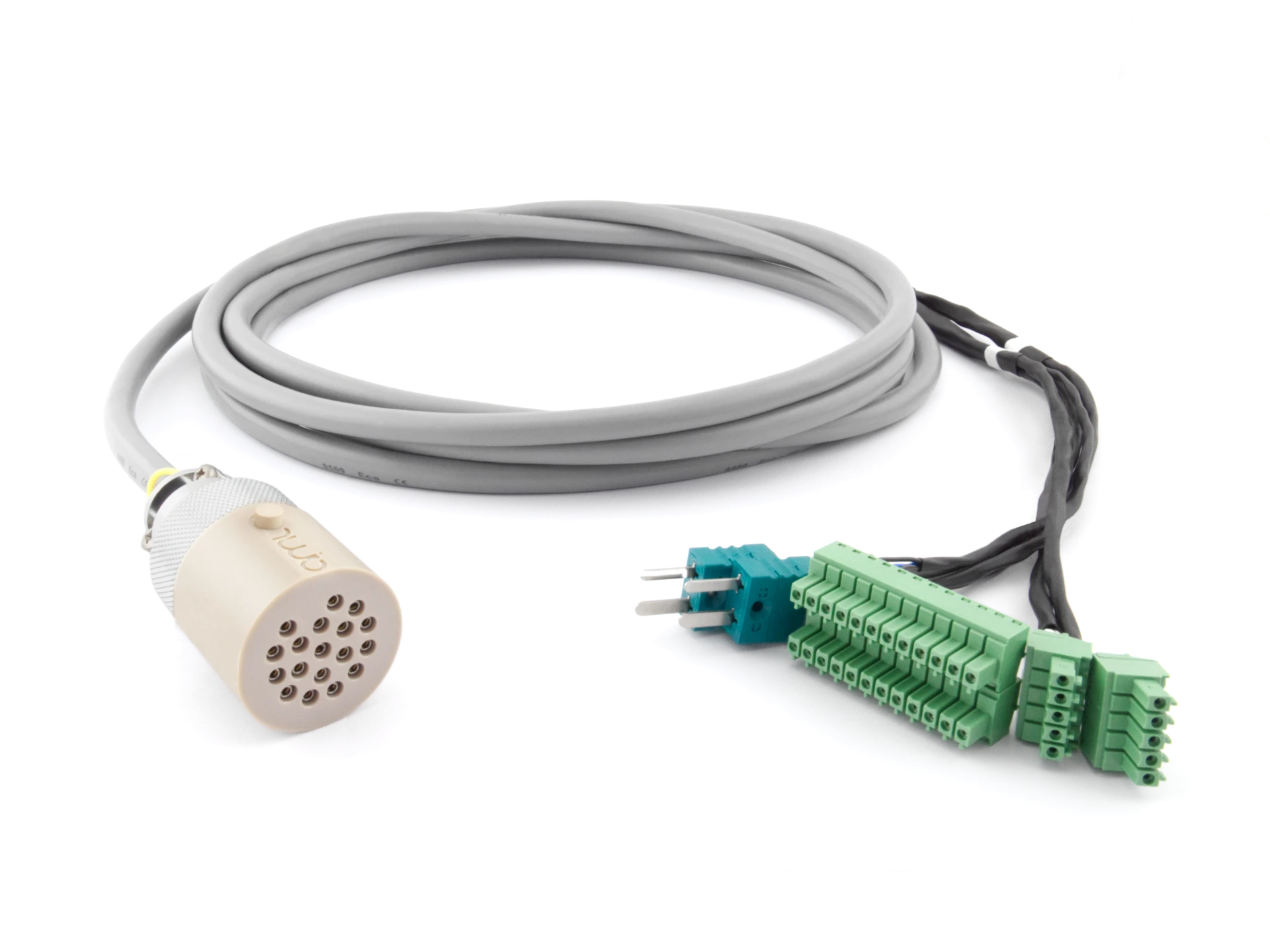

Non-bakeable cable to connect the SMD3 stepper motor drive to a MLF18F feedthrough.

Overview

  • 3 metre, non-bakeable lead for use with AML SMD3 stepper motor drives and MLF18F feedthrough.
  • Connects up to two drives and motors installed in one vacuum chamber.
  • Custom lengths are available to order.
Order Code Description Price £
MLF18SMD3 Non Bakeable lead, 3 m, MLF18F to SMD3215.00
