UHV RSB Rotation Stage
UHV Rotation Stage
From £2,200.00 excl. VAT and transportation cost$3,100.00 excl. VAT and transportation cost€2,665.00 excl. VAT and transportation cost

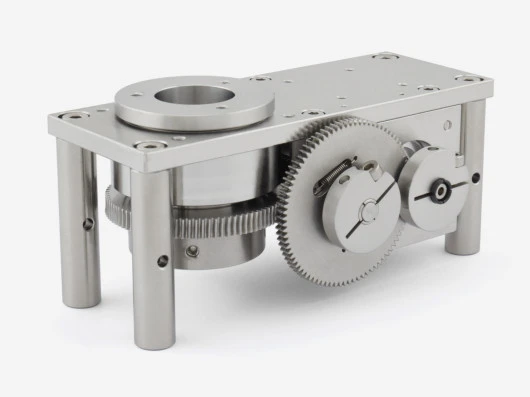

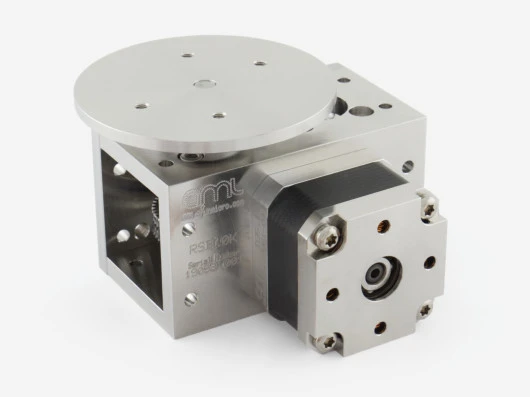

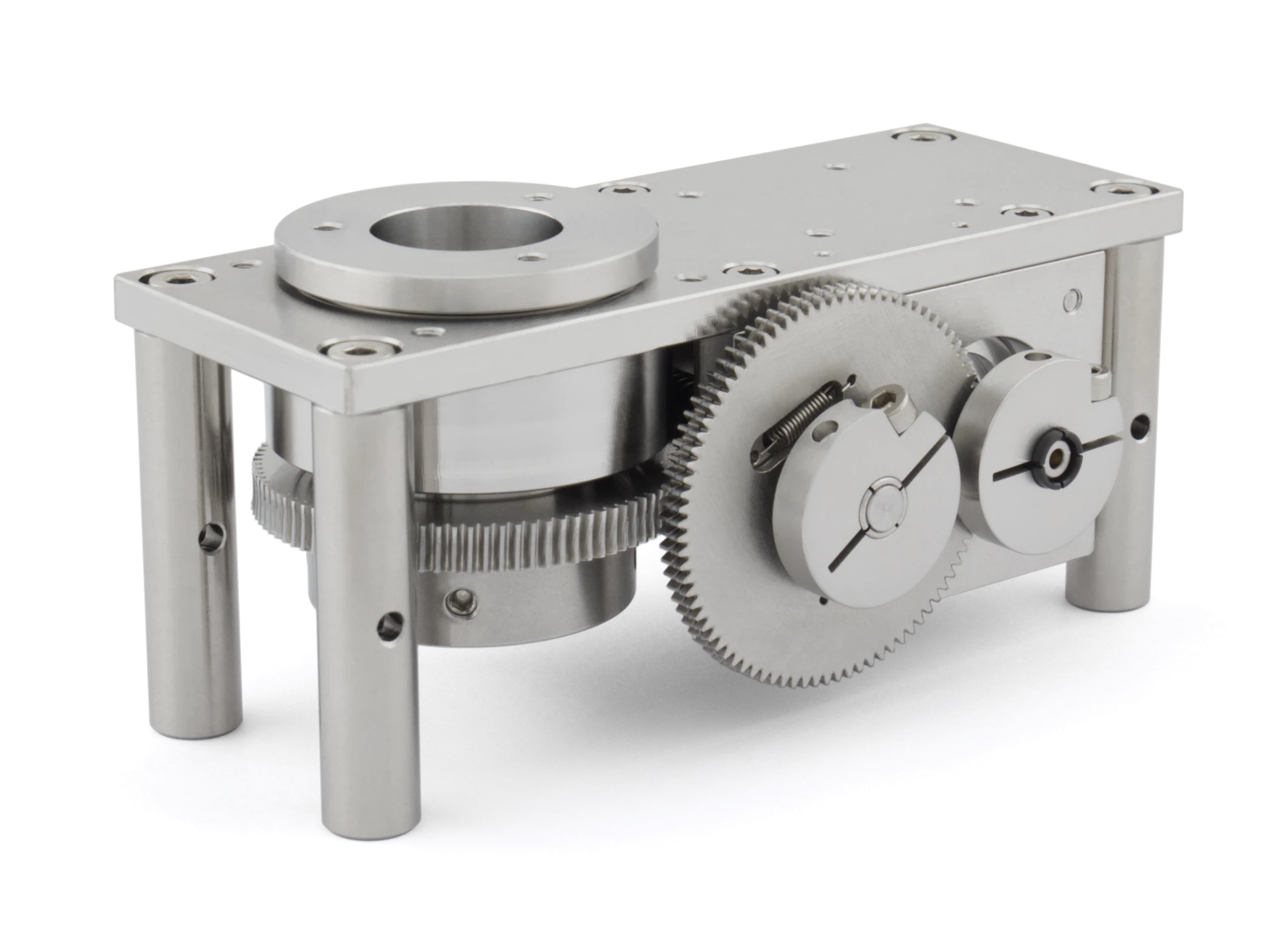

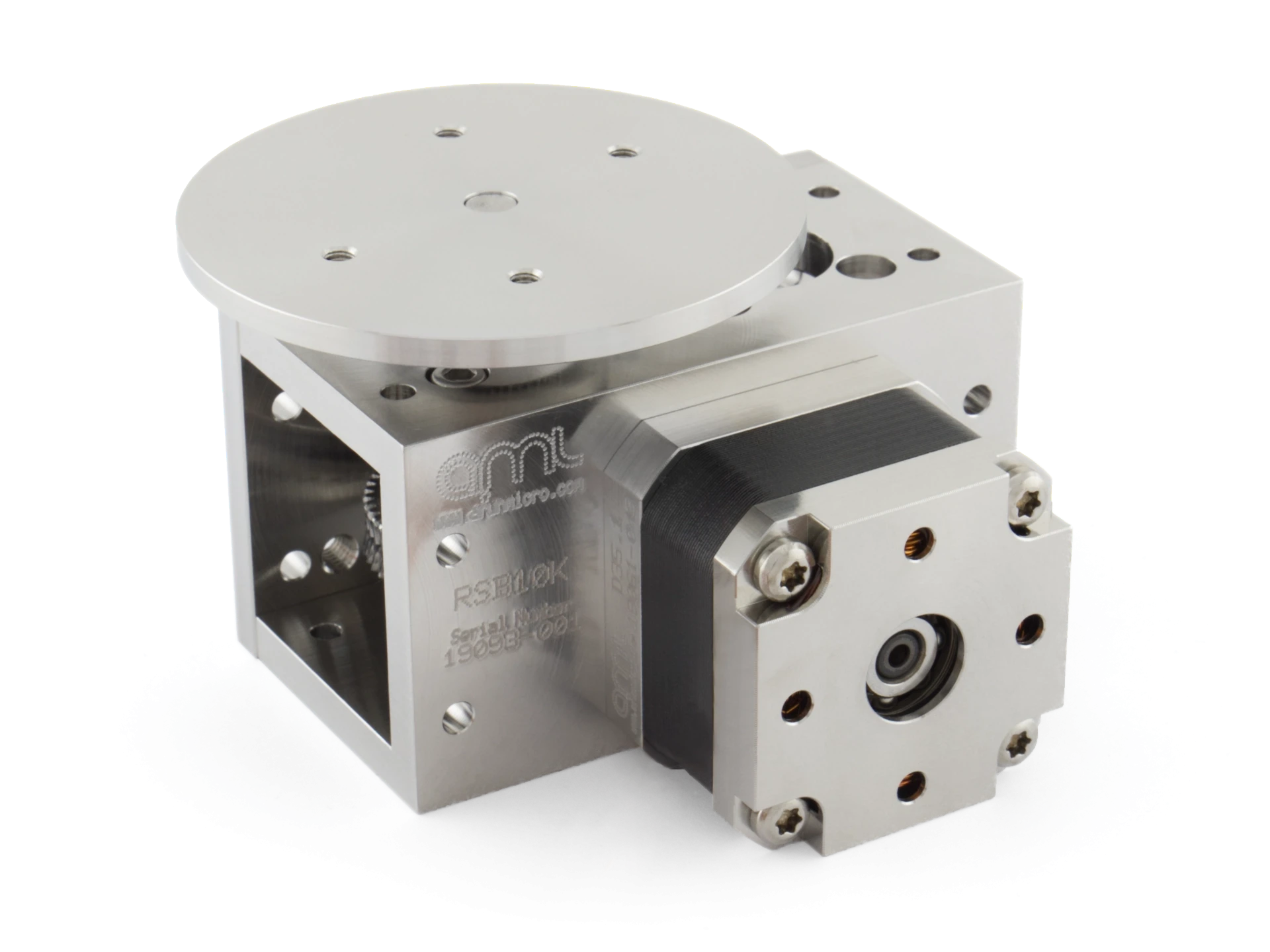

AML ultra high vacuum compatible rotation stages are intended for intermittent rotation of balanced loads or as a precision gearbox. They are manufactured with UHV compatible material and construction methods and utilize AML D35.1 UHV stepper motors. The RSB10K/20K/30K can be mounted directly on AML LTV translation stages or stacked on another RSB without additional hardware.
Overview
- Resolutions from 0.036° to 0.004° per step
- Unloaded backlash is less than resolution
- Intended for intermittent rotation of balanced loads of up to 1 kg

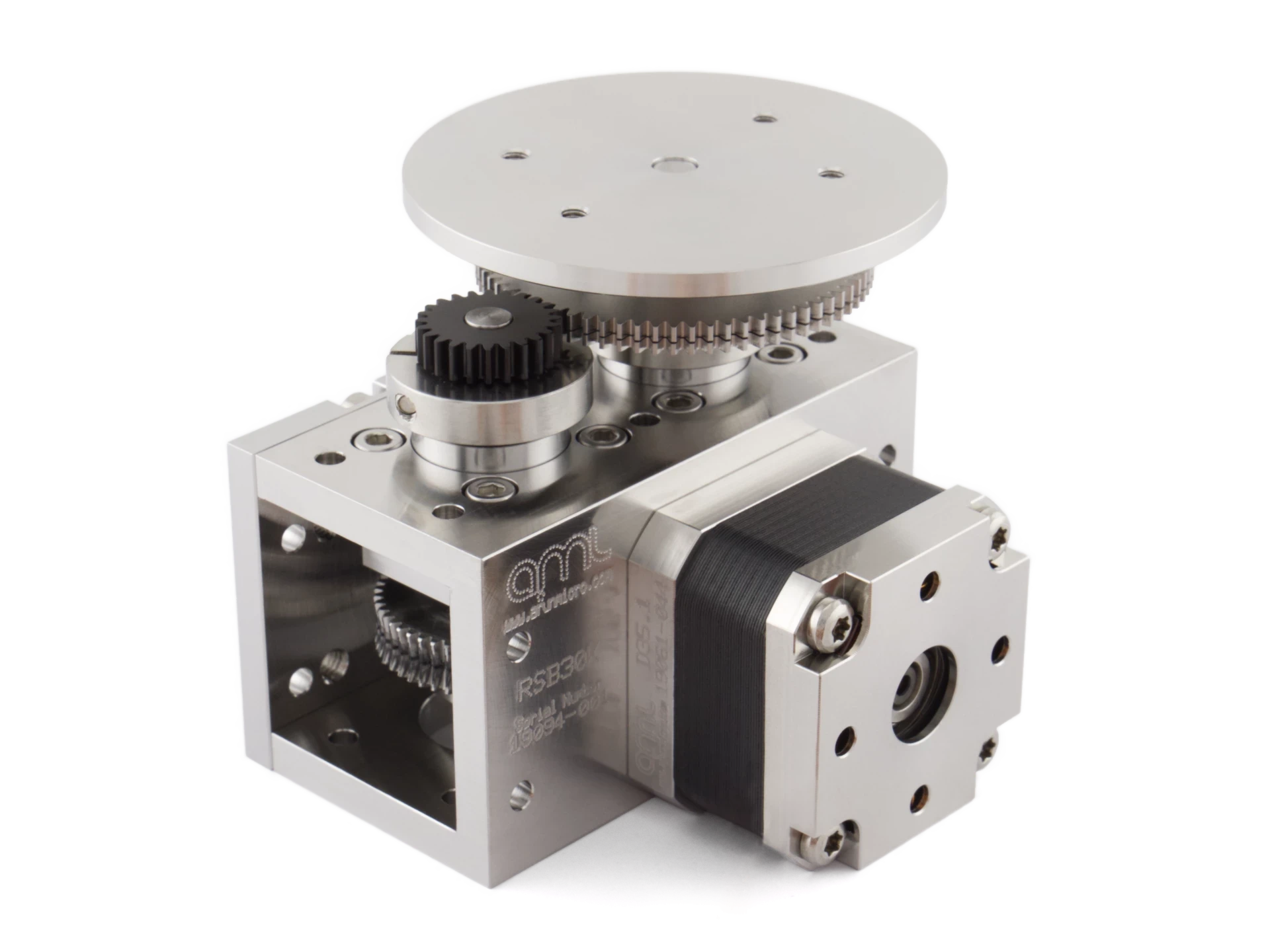

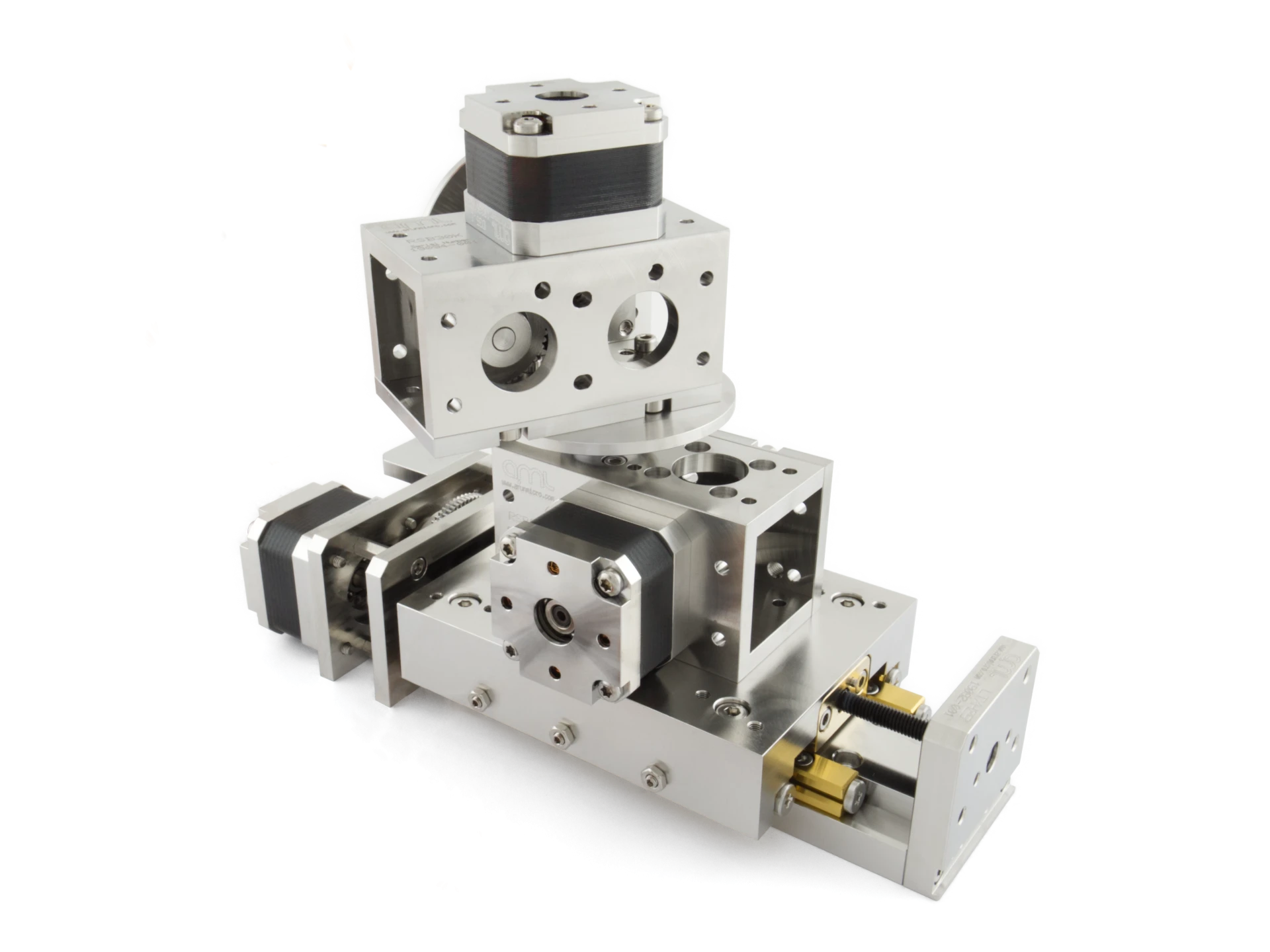

- RSB10K/20K/30K can stack on AML translation stages
- Suitable for use below 1 x 10-10 mBar
- Bakeable to 200°C
| Order Code | Description |
Price
|
|---|---|---|
| RSB10K | Rotation Stage. 10,000 Steps Per Revolution | 2,200.003,100.002,665.00 |
| RSB20K | Rotation Stage. 20,000 Steps Per Revolution | 2,200.003,100.002,665.00 |
| RSB30K | Rotation Stage. 30,000 Steps Per Revolution | 2,300.003,240.002,785.00 |
| RSB90K | Rotation Stage. 90,000 Steps Per Revolution | 3,150.004,440.003,815.00 |
