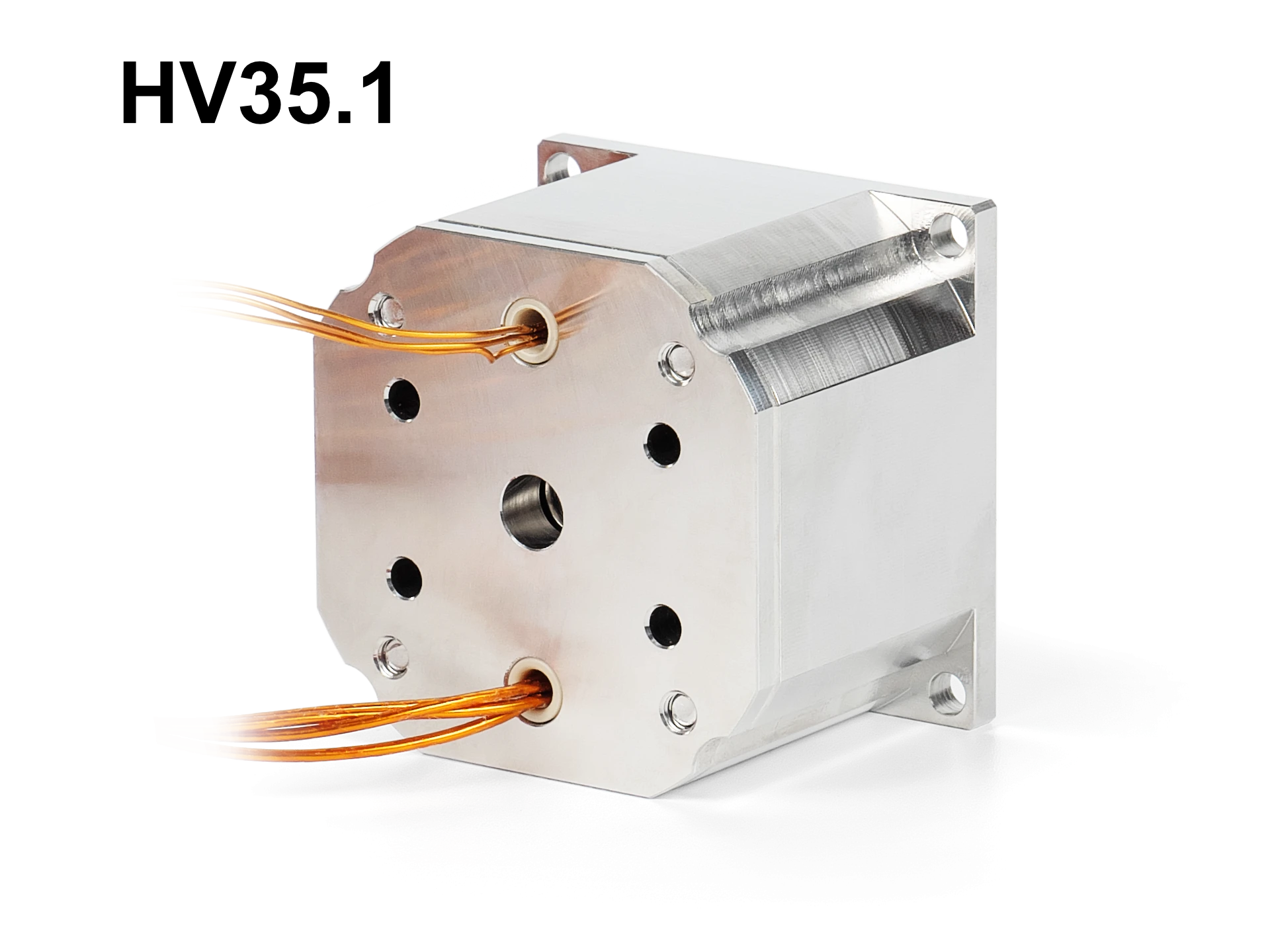

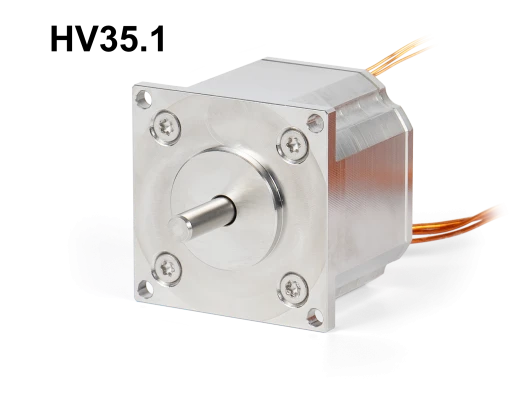

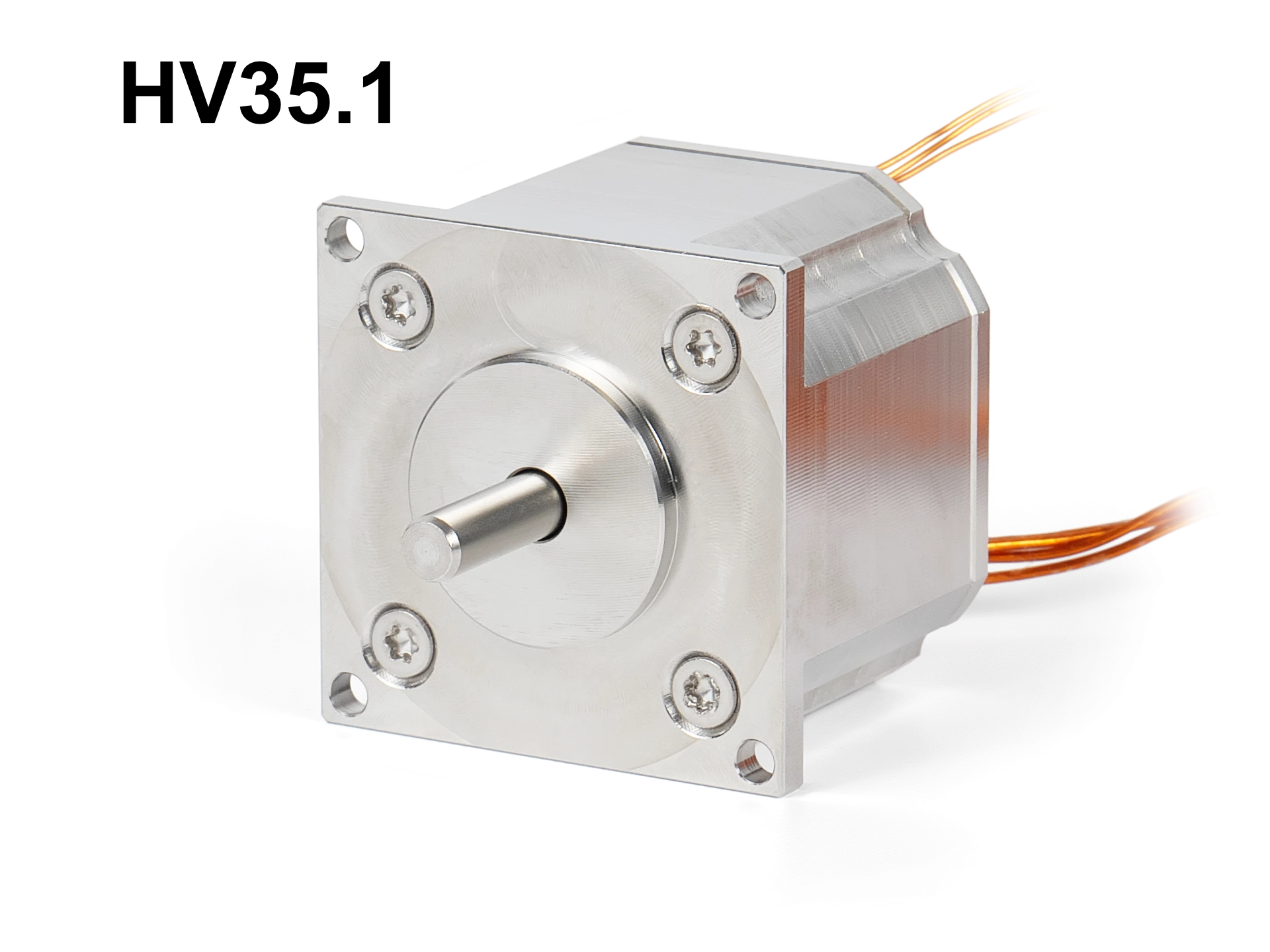

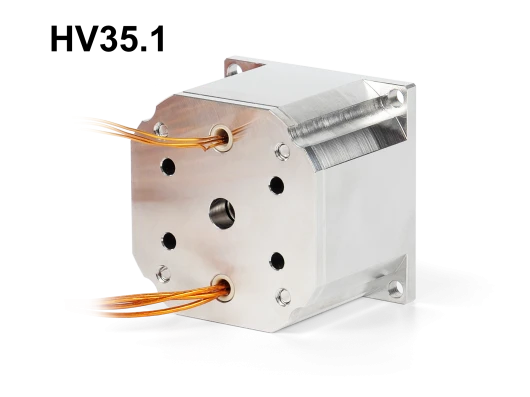

High Vacuum Stepper Motors
1.8°, two phase hybrid stepper motors (1 x 10-7 mBar)
From £320.00 excl. VAT and transportation cost$450.00 excl. VAT and transportation cost€385.00 excl. VAT and transportation cost
AML’s HV stepper motors provide a cost-effective solution for High Vacuum motion applications where the full Ultra High Vacuum capability of our D-series stepper motors is not required.
Designed and manufactured to AML’s established quality standards, the range offers reliable in-vacuum performance at a lower price point.
Overview
- Available in a range of sizes and torque ratings.
- Suitable for use to 1 x 10-7 mBar
- Continuous running in vacuum at high torque and step rates with AML drive
- Operational temperature range -20 °C to +200 °C
- Step angle of 1.8°
- Step angle tolerance of ±5%
- Embedded thermocouple as standard
- Fitted with open stainless steel bearings, lubricated with vacuum compatible grease.
| Order Code | Description |
Price
|
|---|---|---|
| HV35.1 | 75 mNm High Vacuum Stepper Motor | 320.00450.00385.00 |
| HV42.2 | 450 mNm High Vacuum Stepper Motor | 435.00605.00520.00 |
| HV57.1 | 1,000 mNm High Vacuum Stepper Motor | 510.00710.00610.00 |
