RSX3K6 Ultra High Vacuum Rotation Stage Demonstration Video
Posted on Tuesday 3rd March 2020 at 14:29

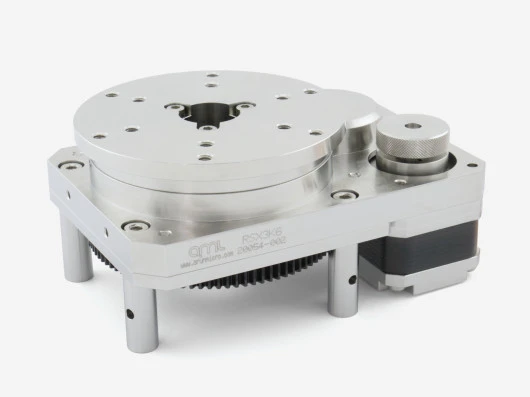

Watch our demonstration video for the RSX3K6 Ultra High Vacuum Rotation Stage. The UHV RSX Rotation Stage features a precision cross-roller ring bearing providing high rotational accuracy capable of bearing loads in every direction. It has a 18mm clear aperture, anti-backlash spur gearing and can optionally be fitted with an optical UHV compatible rotary encoder. This video demonstrates the RSX3K6 fitted with the optional optical rotary encoder; showing the 0.1° resolution in full steps and the 360° rotation range.
The RSX3K6 also features:
- 3,600 steps per revolution
- Maximum loaded speed of 100 rpm
- Maximum torque of 1 N⋅m
Our ultra-high vacuum compatible rotation stages are manufactured with UHV compatible material and construction methods in an ISO 7 cleanroom and utilize AML D35.1 UHV stepper motors. Our UHV mechanisms are vacuum conditioned at 200°C for 48 hours, backfilled with dry Nitrogen and vacuum packed; ready to be integrated directly into your UHV system.
As with all of AML’s products, our UHV compatible rotation stages undergo a stringent quality assurance process, ensuring that they meet AML’s high level of standard.
For more information about our range of products, please do not hesitate to contact our dedicated team by emailing firstname.lastname@example.org.
