D42.2 200 N Thrust Drive

Posted on Wednesday 25th October 2023 at 13:00

Arun Microelectronics is pleased to share our latest custom project, the D42.2 200N Thrust Drive.

D42.2 Thrust Drive

D42.2 200 N Thrust Drive

200 N Maximum Axial Thrust Load
Vacuum: 1x10-10 mbar





With a requirement for a motor with an axial thrust load of 200 N, AML have designed a custom drive for the D42.2 UHV stepper motor. The final design offers a low speed, high thrust solution.

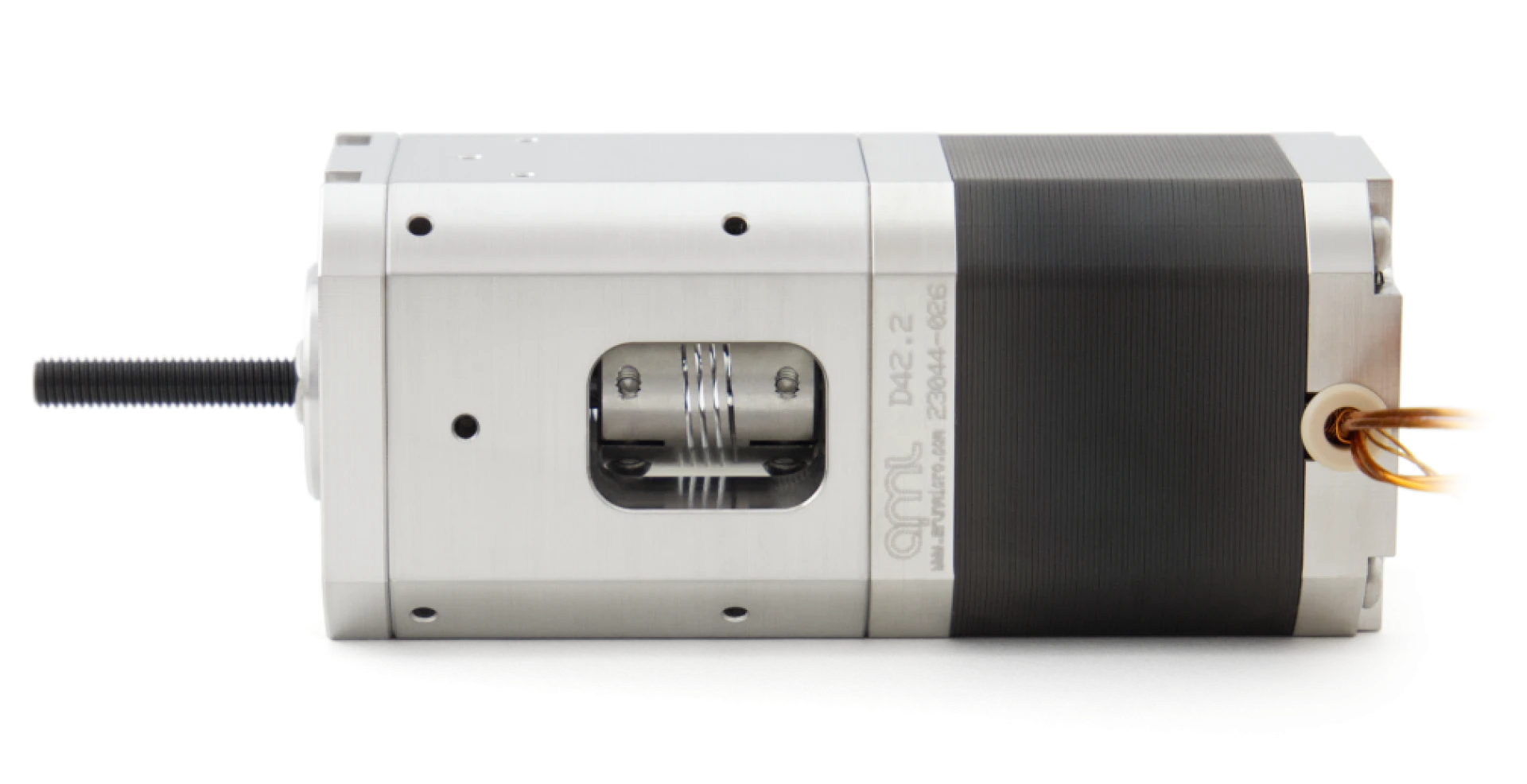

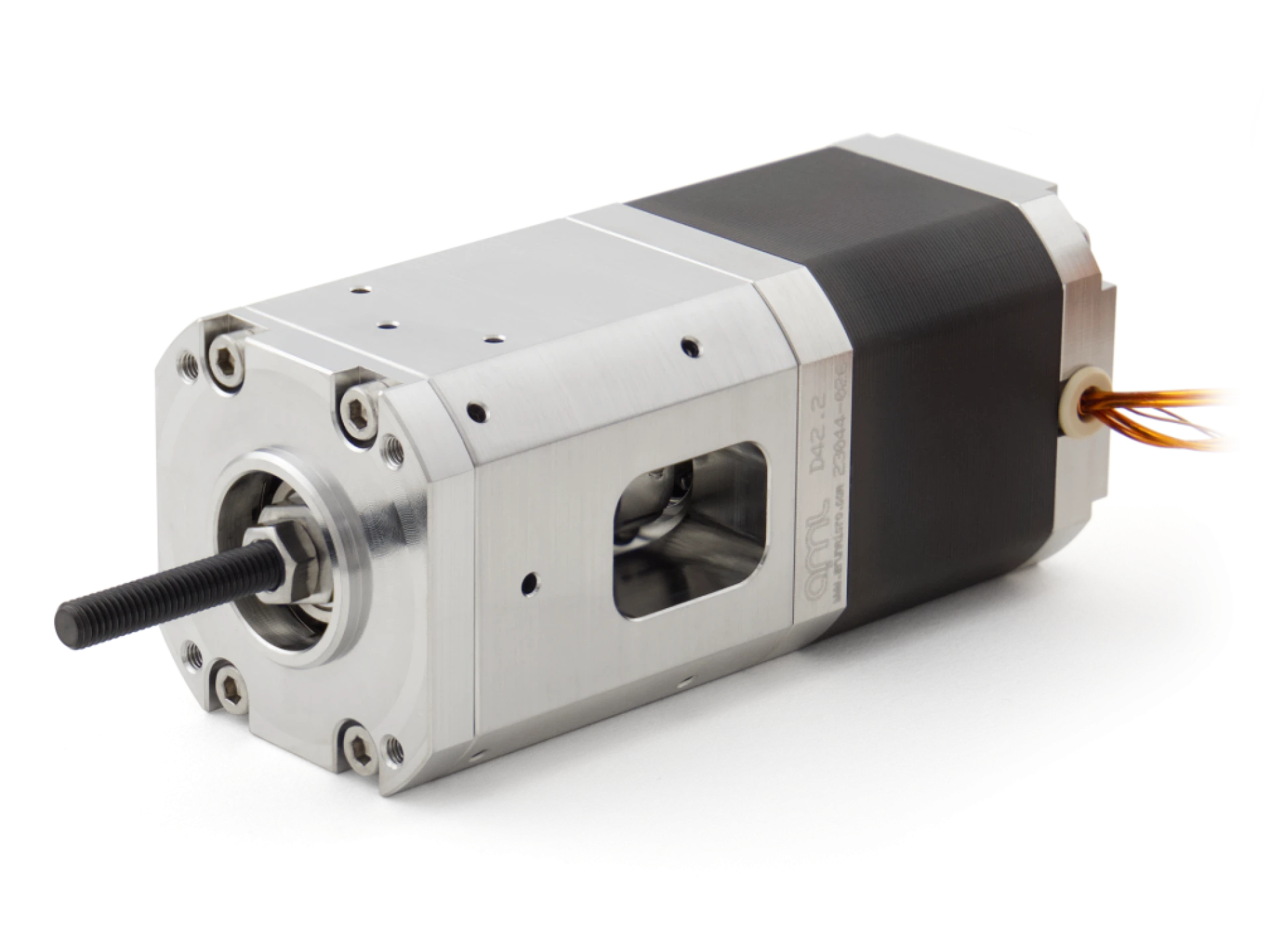

The D42.2 200 N Thrust Drive features specialised bearings with high thrust load capacity and an M5 leadscrew, increasing axial thrust load from 9 N on the standard D42.2 to 200 N. UHV compatible materials and design processes throughout ensure suitability to 1 x 10-10 mbar. NyeTorr 6300 ultra-low outgassing grease is used as standard.

D42.2 Thrust Drive

In addition to its high thrust capacity, the D42.2 200 N Thrust Drive is designed to be as compact as possible. The body of the drive and motor is just 98 mm long, with a 25 mm length M5x0.8 leadscrew. This makes the drive ideal for applications where space is limited. The leadscrew may be customised to suit the application. The drive maintains the same NEMA 17 sizing as the D42.2 motor throughout its entire length.



Think the D42.2 200 N Thrust Drive will be suitable for your application? Contact our sales team at sales@arunmicro.com who will be happy to discuss your application further.
