SMD210 Stepper Motor Controller
SMD210
From £950.00 excl. VAT and transportation cost$1,340.00 excl. VAT and transportation cost€1,150.00 excl. VAT and transportation cost

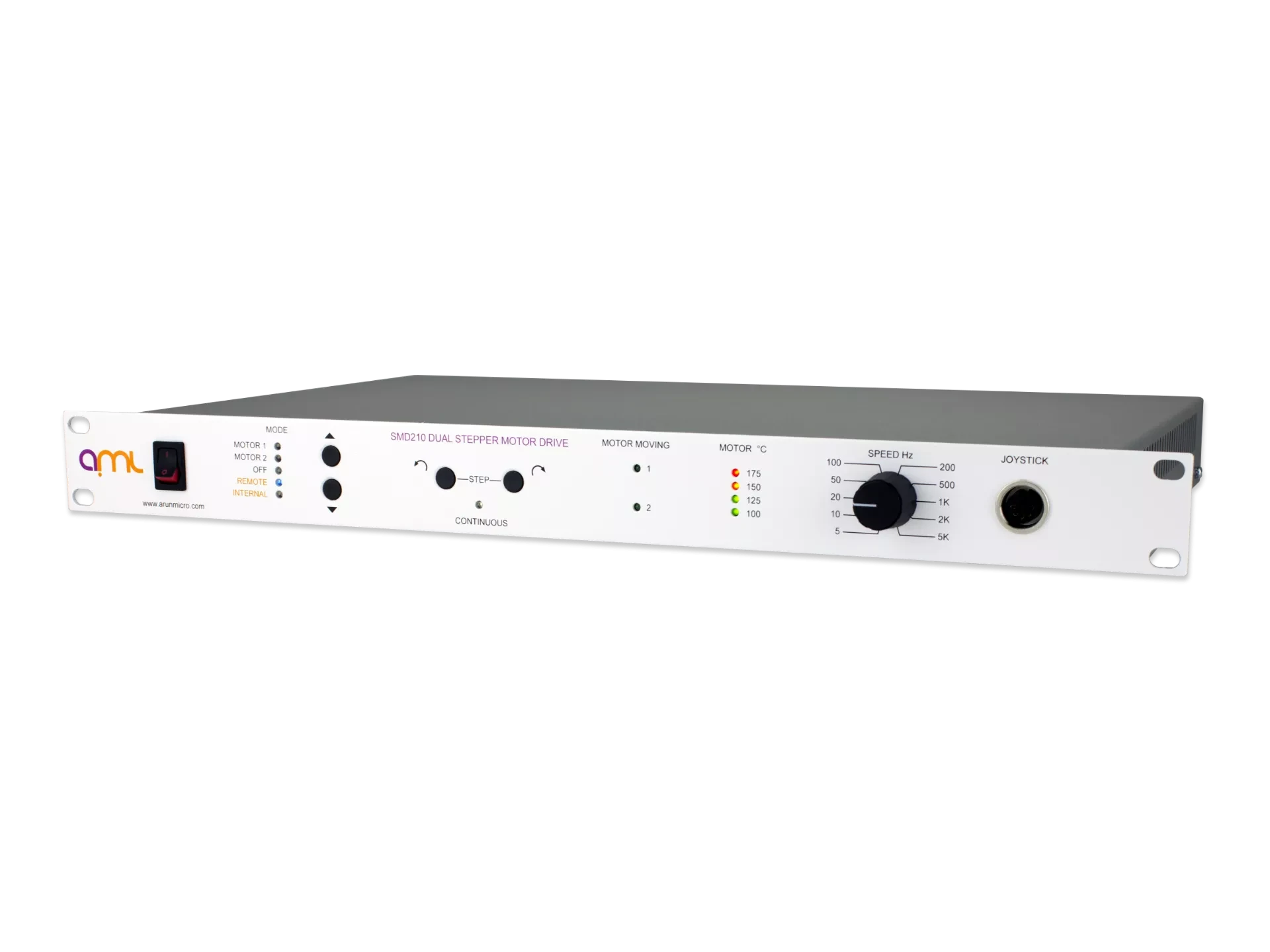

The SMD210 Stepper motor controller is specifically designed to match AML motors. It drives two motors sequentially under manual control from the front panel; automatically from an internally stored program or remotely via the serial interface. Manual operation is also available from the front panel switches or a hand-held joystick.
Overview
- Two motors may be driven sequentially
- Control by host computer, internally stored programme or manually from front panel
- RS-232C interface and simple control language
- Step /8, /4, half and full
- Holding torque independent of dynamic torque
- Type K thermocouple amplifiers for motor temp indication
- Low power drive techniques to reduce motor temperature rise & outgassing
- 3 user inputs
- 3 user outputs
- Operates from 100 V to 240 V, 50-60 Hz supply
| Order Code | Description |
Price
|
|---|---|---|
| SMD210 | Dual Sequential Stepper motor drive | 950.001,340.001,150.00 |
| SMD210JOY | Two Button Joystick | 68.00100.0085.00 |
